(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

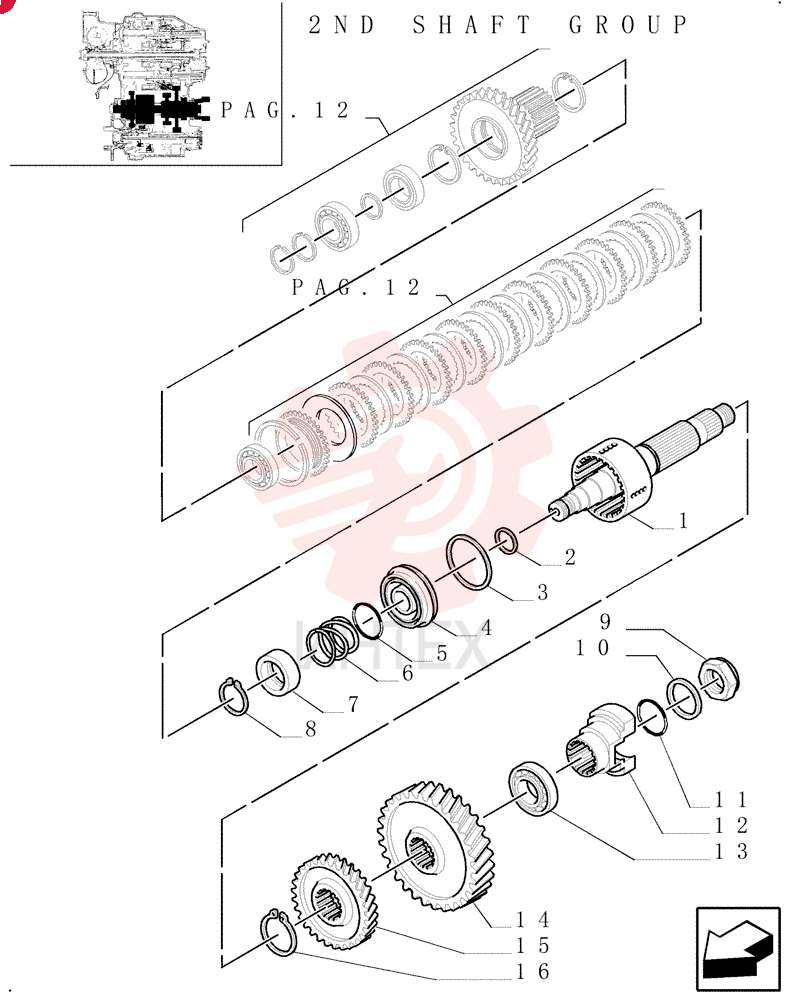

SHAFT 85808475

SHAFT 85808475

SHAFT 85808475

1 85808475

  • 85808475 - SHAFT

2 9969047

  • 9969047 - SEALING RING

3 9969046

  • 9969046 - SEALING RING
  • 123.49mm ID x 130.85mm OD x 2.4mm Thk

4 9969045

  • 9969045 - PISTON

5 9969048

  • 9969048 - RING

6 9969049

  • 9969049 - SPRING

7 9969050

  • 9969050 - RETAINER

8 9969051

  • 9969051 - SNAP RING

9 9969093

  • 9969093 - NUT

10 9969092

  • 9969092 - WASHER

11 9970059

  • 9970059 - SEALING RING

12 9970058

  • 9970058 - YOKE

13 85808362

  • 85808362 - BEARING

14 85808361

  • 85808361 - GEAR

15 85808360

  • 85808360 - GEAR

16 9970054

  • 9970054 - SNAP RING
