New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

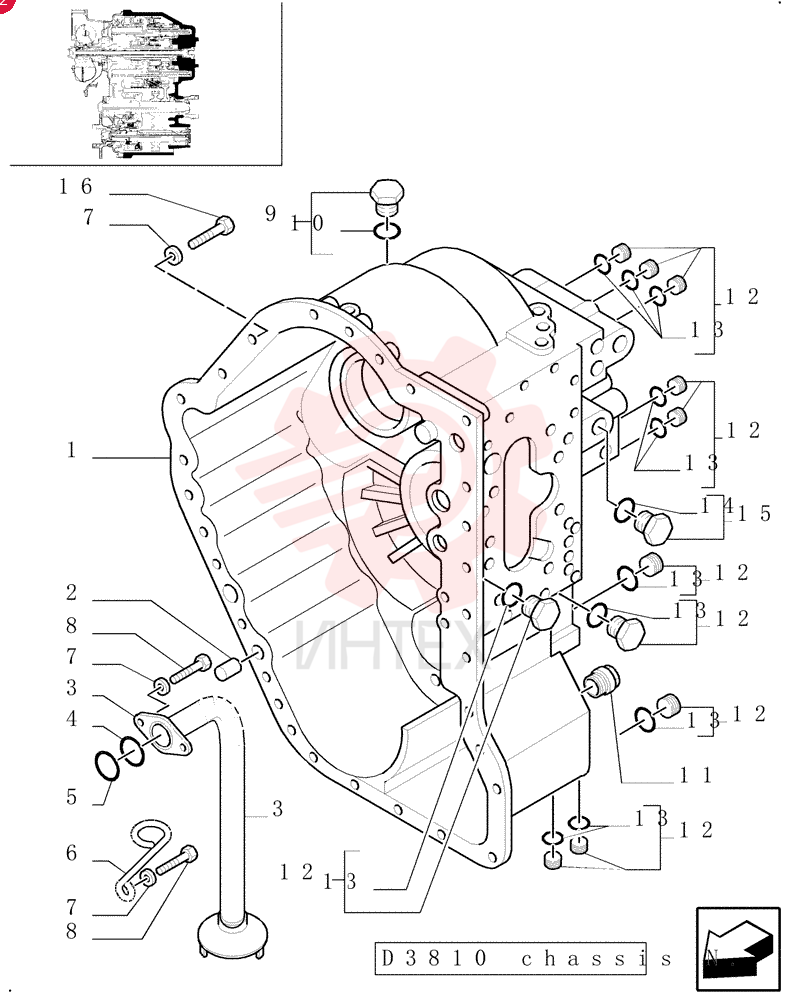

TRANSMISSION HOUSING 85808474

TRANSMISSION HOUSING 85808474

TRANSMISSION HOUSING 85808474

1 85808474

  • 85808474 - TRANSMISSION HOUSING

2 9969017

  • 9969017 - DOWEL

3 85808328

  • 85808328 - TUBE

4 9969012

  • 9969012 - CLIP

5 85808327

  • 85808327 - O-RING
  • 3.53mm Thk x 31.34mm ID
  • Cl 7

6 9969418

  • 9969418 - CLIP

7 9968996

  • 9968996 - LOCK WASHER

8 9969000

  • 9969000 - SCREW

9 9970283

  • 9970283 - PLUG

10 85808323

  • 85808323 - O-RING
  • 0.103" Thk x 0.75" ID
  • -116
  • Cl 5
  • 75 Duro

11 9970002

  • 9970002 - PLUG

12 9970284

  • 9970284 - MAGNETIC PLUG

13 9968989

  • 9968989 - O-RING

14 9969429

  • 9969429 - SEALING RING

15 85808330

  • 85808330 - PLUG

16 9969424

  • 9969424 - SCREW
