New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

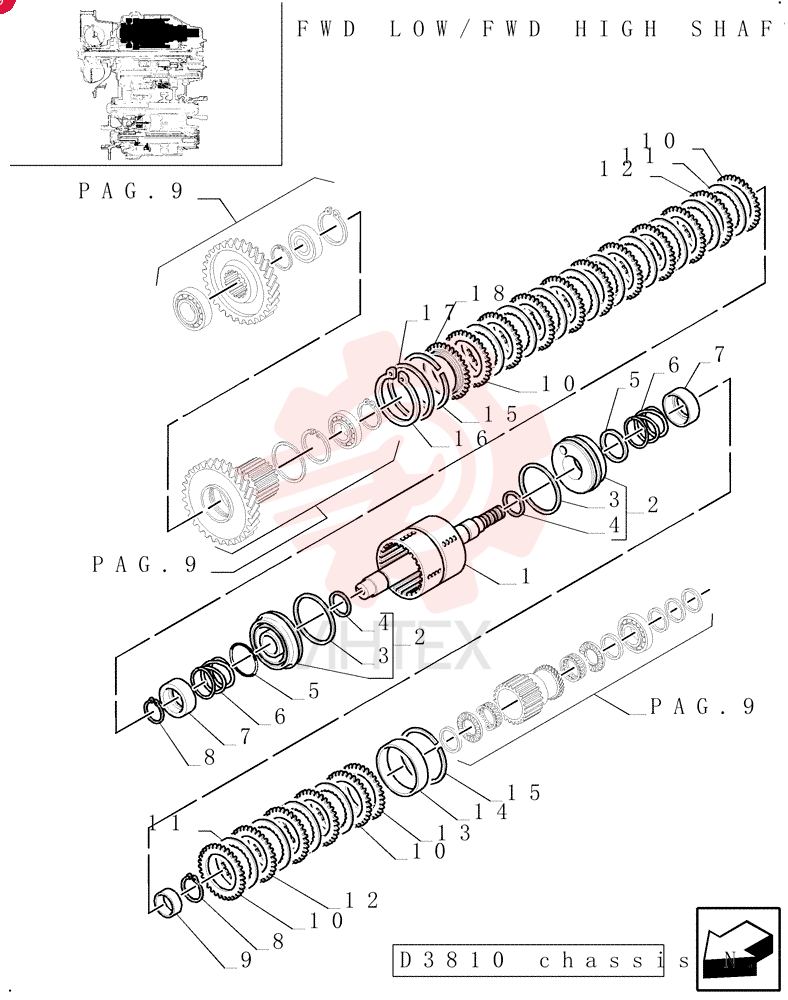

SHAFT 85808337

SHAFT 85808337

SHAFT 85808337

1 85808337

  • 85808337 - SHAFT

2 9969045

  • 9969045 - PISTON

3 9969046

  • 9969046 - SEALING RING
  • 123.49mm ID x 130.85mm OD x 2.4mm Thk

4 9969047

  • 9969047 - SEALING RING

5 9969048

  • 9969048 - RING

6 9969049

  • 9969049 - SPRING

7 9969050

  • 9969050 - RETAINER

8 9969051

  • 9969051 - SNAP RING

9 9969055

  • 9969055 - SPACER

10 85808338

  • 85808338 - HALF-DISC

11 85811878

  • 85811878 - HALF-DISC

12 85808339

  • 85808339 - DISC

13 85811879

  • 85811879 - DISC

14 85808340

  • 85808340 - CLUTCH PLATE

15 85811880

  • 85811880 - CLUTCH PLATE

16 85808343

  • 85808343 - BACKING PLATE

17 9970034

  • 9970034 - SPACER

18 9969057

  • 9969057 - RING

19 9970031

  • 9970031 - CIRCLIP

20 85808342

  • 85808342 - SPACER

21 85808341

  • 85808341 - BACKING PLATE
