New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

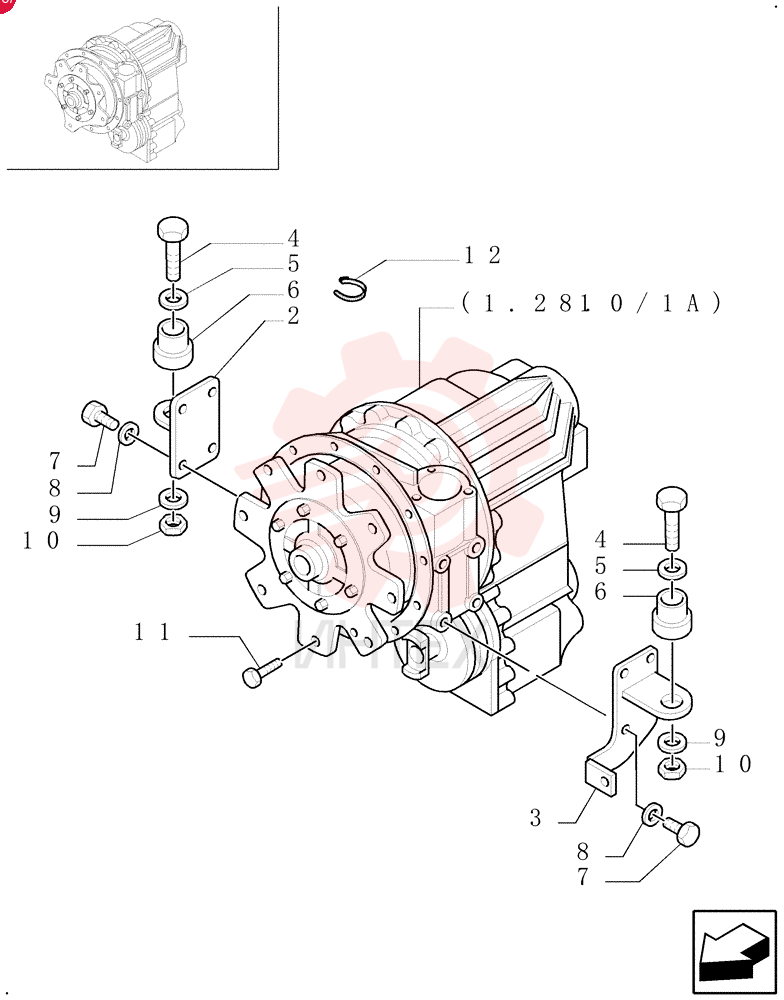

TRANSMISSION 85811907

TRANSMISSION 85811907

TRANSMISSION 85811907

1 85811907

  • 85811907 - TRANSMISSION

2 85804275

  • 85804275 - SUPPORT

3 85804276

  • 85804276 - SUPPORT

4 15541424

  • 15541424 - SCREW
  • Hex
  • M12 x 1.25 x 80mm
  • Cl 8.8

5 85801585

  • 85801585 - SEALING WASHER
  • 13mm ID x 65mm OD x 5mm Thk

6 85804733

  • 85804733 - ISOLATOR
  • 60mm OD x 55.8mm L

7 9824642

  • 9824642 - BOLT
  • M12 x 1.75 x 42.68mm
  • Cl 10.9

8 11198673

  • 11198673 - LOCK WASHER
  • 13mm ID x 24mm OD x 0.6mm Thk

9 85802618

  • 85802618 - SEALING WASHER
  • 13mm ID x 41mm OD x 3mm Thk

10 16105021

  • 16105021 - LOCK NUT
  • M12 x 1.25
  • Cl 10

11 85804315

  • 85804315 - SCREW

12 85817437

  • 85817437 - CABLE TIE
