New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

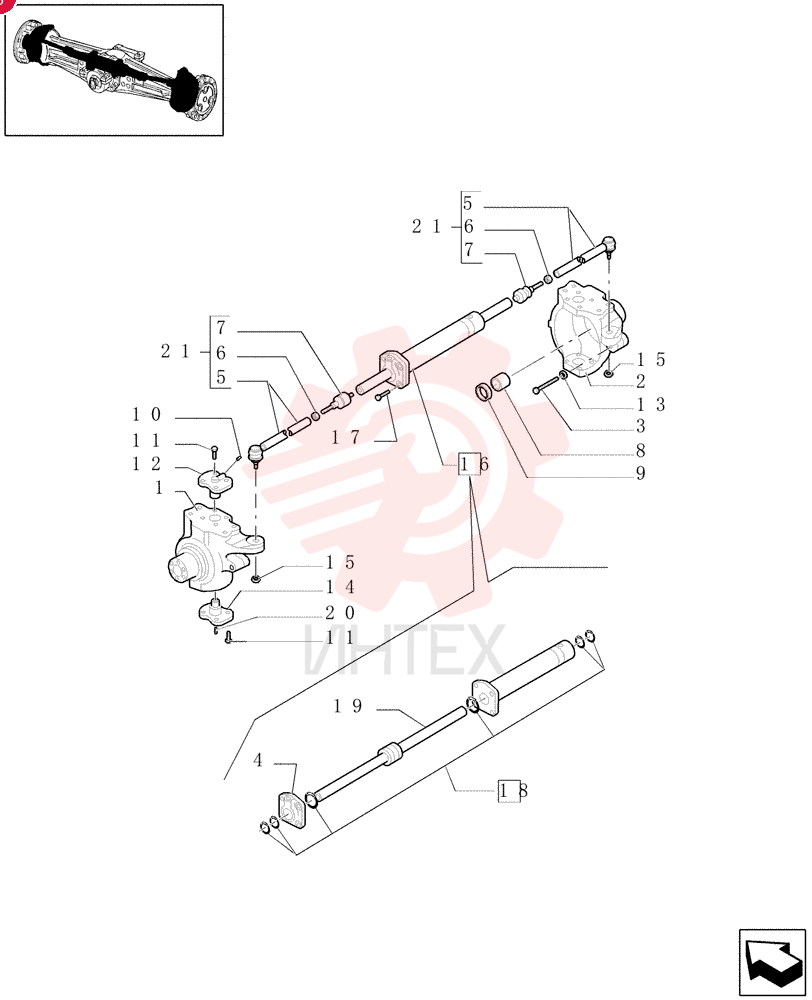

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (2)

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (2)

STEERING KNUCKLE,4 Holes (King Pin Fixing), 6 Holes (Hub Side), 65mm ID (Seal Ring Seat) 85805981 (2)

1 85805981

  • 85805981 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 6 Holes (Hub Side)
  • 65mm ID (Seal Ring Seat)

2 85817695

  • 85817695 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 8 Holes (Hub Side)
  • 65mm ID (Seal Ring Seat)

3 85824349

  • 85824349 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 8 Holes (Hub Side)
  • 60mm ID (Seal Ring Seat)

4 85805985

  • 85805985 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 6 Holes (Hub Side)
  • 65mm ID (Seal Ring Seat)

5 85817696

  • 85817696 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 8 Holes (Hub Side)
  • 65mm ID (Seal Ring Seat)

6 85824348

  • 85824348 - STEERING KNUCKLE
  • 4 Holes (King Pin Fixing)
  • 8 Holes (Hub Side)
  • 60mm ID (Seal Ring Seat)

7 85805987

  • 85805987 - SCREW
  • M16 x 100mm

8 85805989

  • 85805989 - CYLINDER HEAD

9 85805977

  • 85805977 - TIE-ROD

10 85805976

  • 85805976 - NUT
  • M18 x 1.5

11 85805975

  • 85805975 - BALL JOINT
  • M18 / M20

12 85805988

  • 85805988 - BRONZE BUSHING
  • 45.08mm ID x 50.12mm OD x 35mm L

13 85805991

  • 85805991 - OIL SEAL
  • 41.6mm ID x 65mm OD x 12mm Thk

14 9968021

  • 9968021 - LUBE NIPPLE
  • M6 x 1 x 16mm OAL

15 85805979

  • 85805979 - SCREW
  • Hex Flng
  • M12 x 1.75 x 30mm

16 85805980

  • 85805980 - PIN

17 85805986

  • 85805986 - NUT
  • M16

18 85805983

  • 85805983 - PIN

19 85805982

  • 85805982 - NUT
  • M18 x 1.5

20 85805978

  • 85805978 - STEERING CYLINDER

21 85805978R

  • 85805978R - REMAN-HYD CYLINDER

22 85805978C

  • 85805978C - CORE-HYD CYLINDER

23 9968028

  • 9968028 - SCREW

24 85805990

  • 85805990 - OIL SEAL

25 85805992

  • 85805992 - ROD

26 85805984

  • 85805984 - LUBE NIPPLE

27 85805974

  • 85805974 - TIE-ROD
