New Holland Construction
/
(575E) - TRACTOR LOADER BACKHOE (1/96-)
/

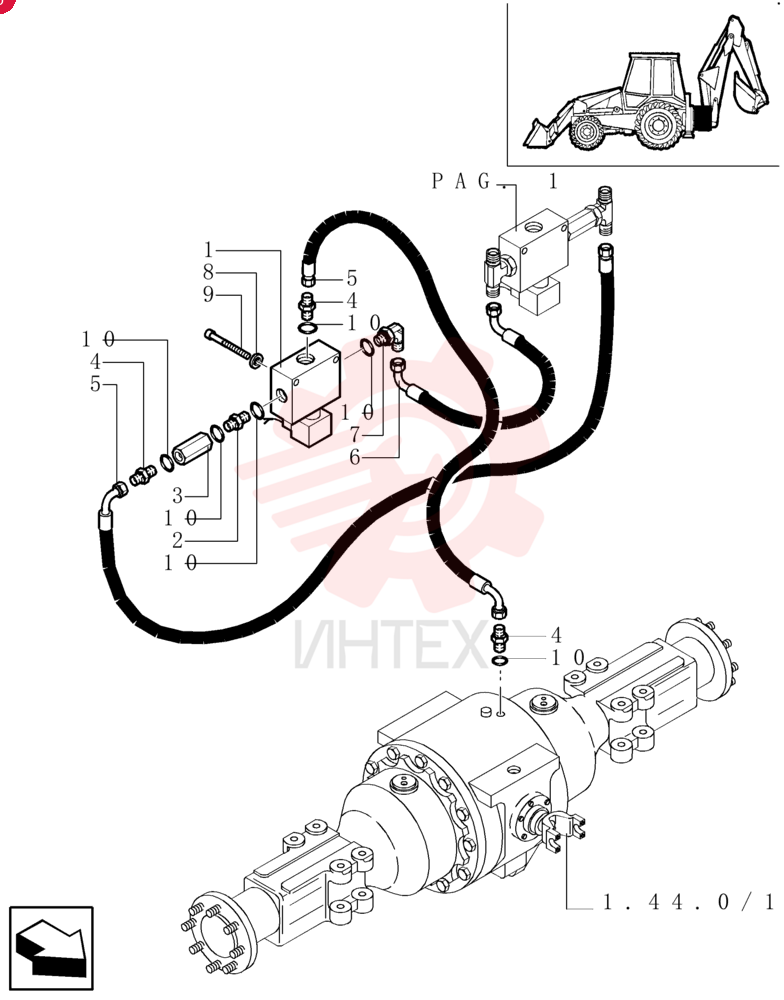

SOLENOID VALVE 85809298 (1)

SOLENOID VALVE 85809298 (1)

SOLENOID VALVE 85809298 (1)

1 85809298

  • 85809298 - SOLENOID VALVE

2 85803313

  • 85803313 - HYD CONNECTOR
  • 9/16" - 18 ORB x 9/16" - 18 ORB

3 85803307

  • 85803307 - CHECK VALVE

4 85803312

  • 85803312 - HYD CONNECTOR
  • 7/16"-20 JIC x 9/16"-18 ORB

5 85803308

  • 85803308 - FLEXIBLE HOSE
  • 1000mm lg

6 85802194

  • 85802194 - FLEXIBLE HOSE
  • 550mm lg

7 85802234

  • 85802234 - 90 ELBOW
  • 7/16"-20 JIC x 9/16"-18 ORB

8 11197774

  • 11197774 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk

9 10903221

  • 10903221 - SCREW
  • Hex
  • M6 x 40mm
  • Cl 8.8

10 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro
