New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

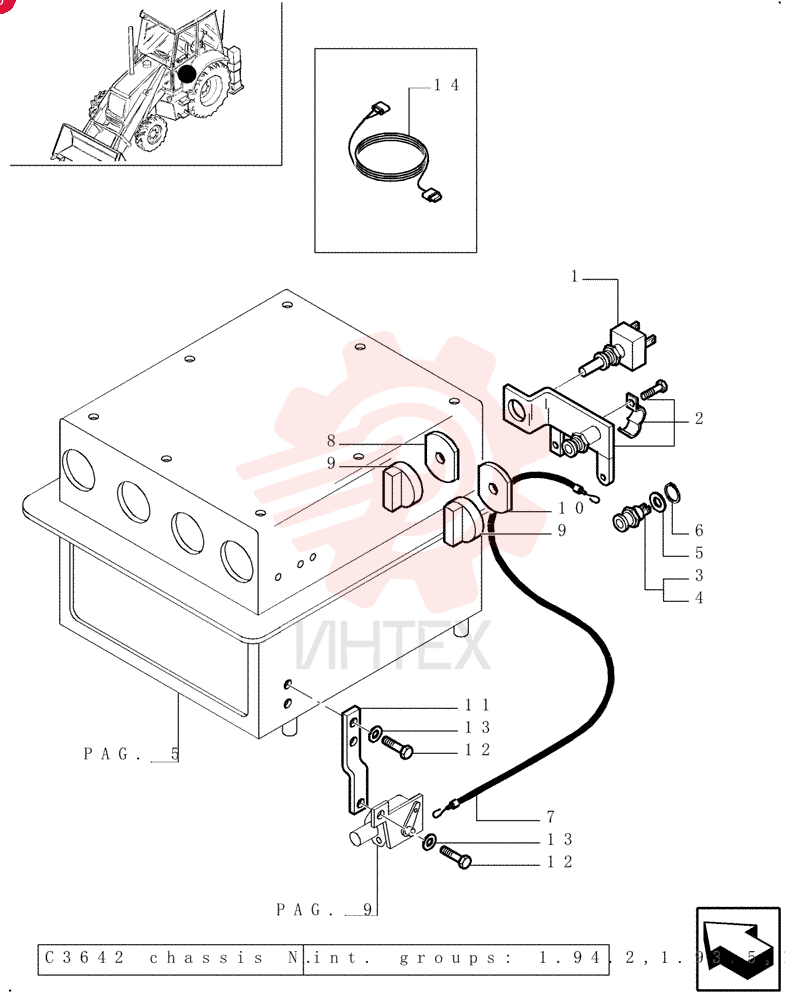

FAN SWITCH 85804068

FAN SWITCH 85804068

FAN SWITCH 85804068

1 85804068

  • 85804068 - FAN SWITCH
  • Serial Range: -C3642

2 85804070

  • 85804070 - LEVER
  • Temperature Control
  • Serial Range: -C3642

3 85804053

  • 85804053 - SWITCH
  • AC On/Off
  • Serial Range: -C3642

4 85804054

  • 85804054 - HOUSING
  • Serial Range: -C3642

5 85804979

  • 85804979 - SEALING WASHER
  • Serial Range: -C3642

6 85804973

  • 85804973 - CIRCLIP
  • Serial Range: -C3642

7 85804409

  • 85804409 - CABLE
  • Temperature Control
  • Serial Range: -C3642

8 85804410

  • 85804410 - DECAL
  • Fan Switch
  • Serial Range: -C3642

9 85804069

  • 85804069 - KNOB
  • Temperature and Fan Speed
  • Serial Range: -C3642

10 85804411

  • 85804411 - PLATE
  • Temperature Control
  • Serial Range: -C3642

11 85804989

  • 85804989 - SUPPORT
  • Hot Water Valve

12 10902224

  • 10902224 - SCREW
  • Hex
  • M6 x 16mm
  • Cl 8.8
  • Full Thd

13 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

14 85804058

  • 85804058 - WIRE HARNESS
  • AC On/Off Switch
