New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

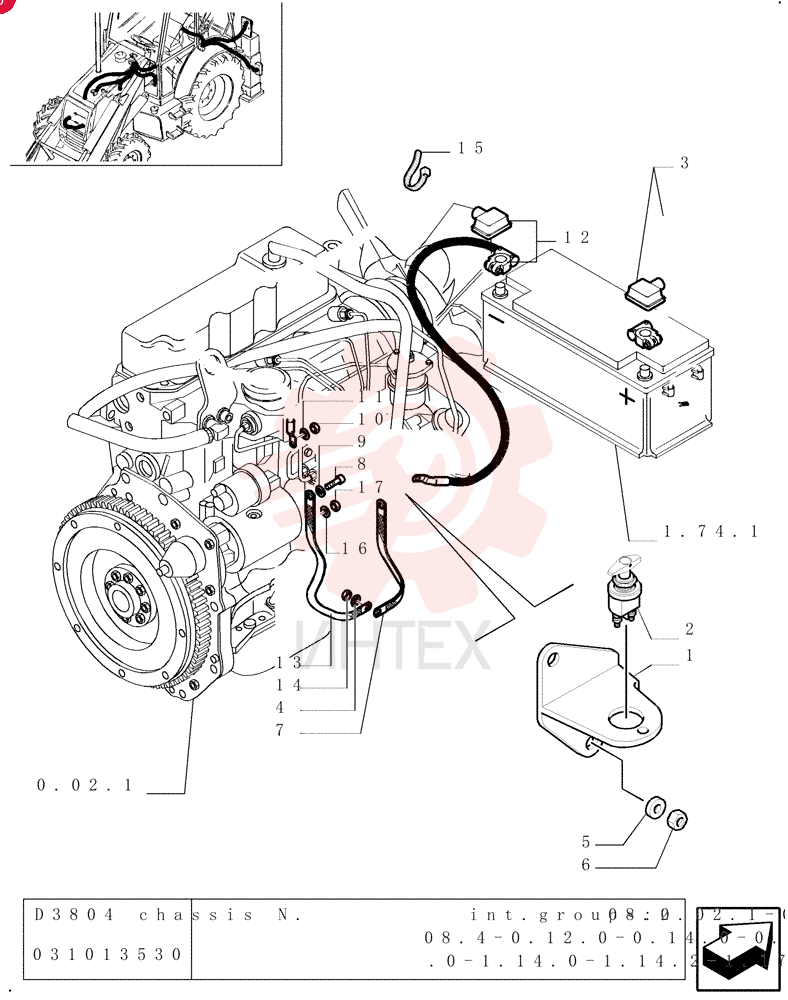

SUPPORT 85804367 (1)

SUPPORT 85804367 (1)

SUPPORT 85804367 (1)

1 85804367

  • 85804367 - SUPPORT

2 4822229

  • 4822229 - BATTERY CUT-OUT

3 85820273

  • 85820273 - ELECTRIC CABLE

4 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

5 11193874

  • 11193874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

6 85804150

  • 85804150 - NUT

7 85803882

  • 85803882 - GROUND STRAP

8 10902124

  • 10902124 - SCREW
  • Hex
  • M6 x 14mm
  • Cl 8.8

9 14496404

  • 14496404 - WASHER
  • M6 x 12 x 2 Thk

10 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

11 12638501

  • 12638501 - WASHER
  • 8.15mm ID x 15mm OD x 1.5mm Thk

12 85820220

  • 85820220 - NEG BATTERY CABLE

13 85803883

  • 85803883 - GROUND STRAP

14 85806214

  • 85806214 - GROUND STRAP

15 14048221

  • 14048221 - NUT
  • M8 x 1.25
  • Cl 10

16 85805685

  • 85805685 - HOSE CLIP
  • 38.1mm ID

17 85805686

  • 85805686 - HOSE CLIP

18 12637811

  • 12637811 - WASHER

19 10788811

  • 10788811 - NUT
  • M5
  • Cl 8
