New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

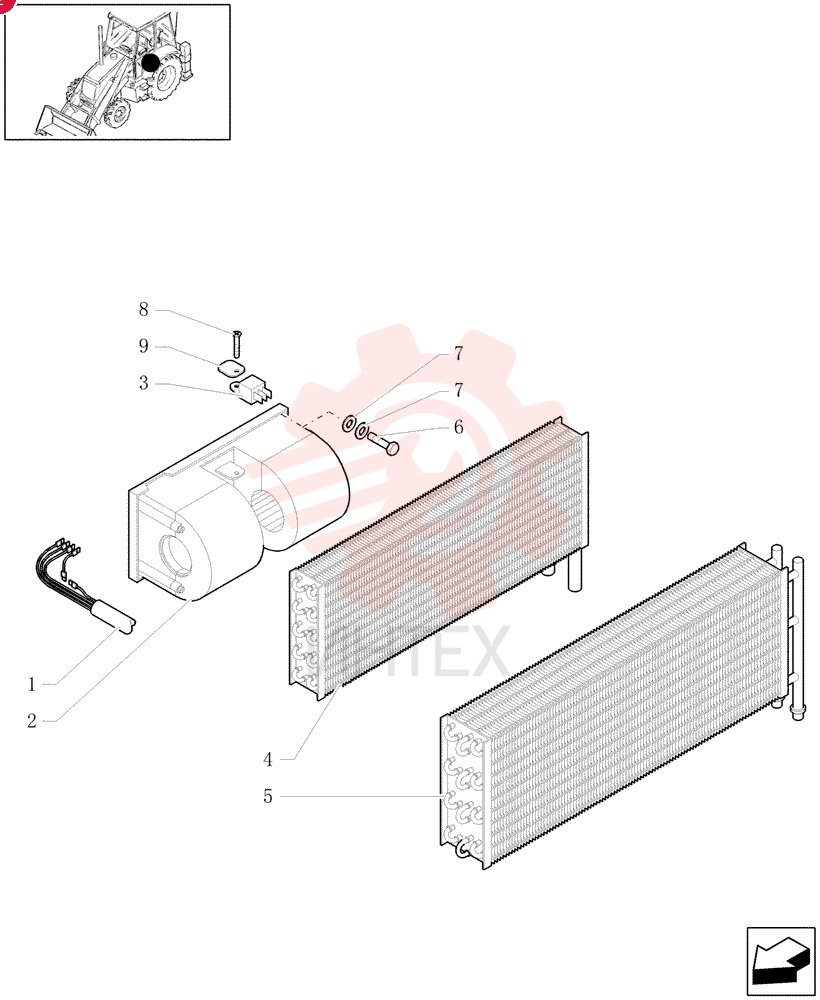

WIRE HARNESS 85804048 (2)

WIRE HARNESS 85804048 (2)

WIRE HARNESS 85804048 (2)

1 85804048

  • 85804048 - WIRE HARNESS
  • Serial Range: -31011331

2 85811971

  • 85811971 - WIRE HARNESS
  • Start Serial: 31011332

3 85813079

  • 85813079 - ELECTRIC BLOWER

4 85804041

  • 85804041 - RESISTOR

5 85808306

  • 85808306 - CORE
  • Heater

6 85804034

  • 85804034 - EVAPORATOR

7 10902424

  • 10902424 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8
  • Full Thd

8 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

9 85817189

  • 85817189 - SCREW

10 85817289

  • 85817289 - RETAINING PLATE
