New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

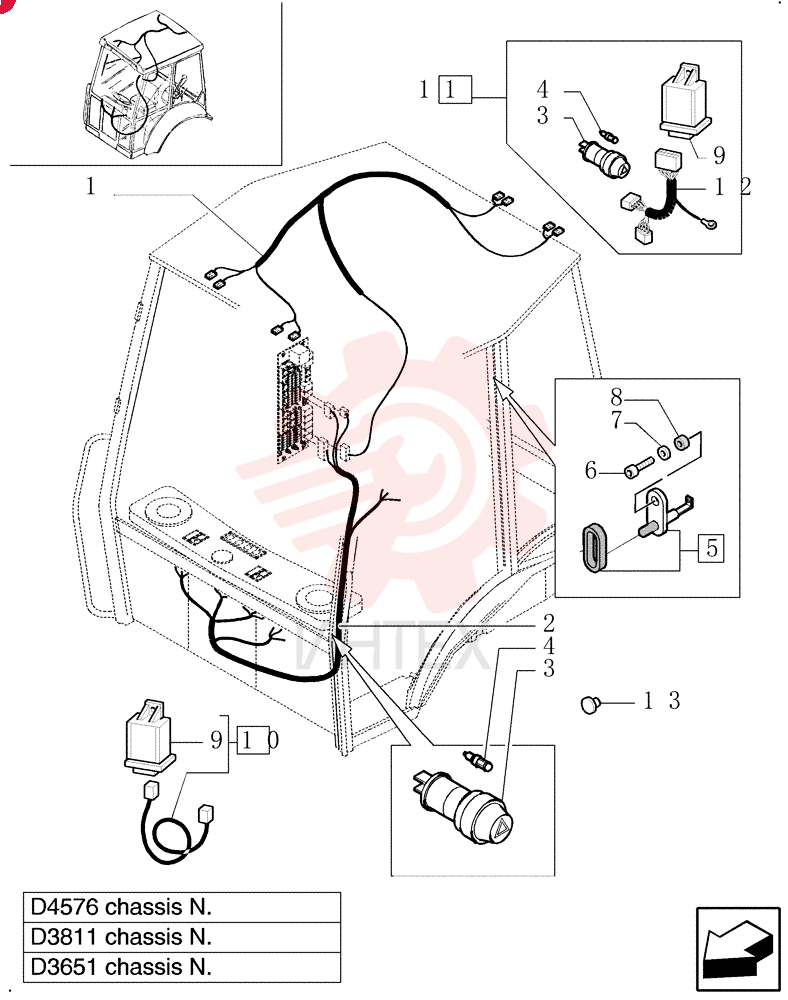

WIRE HARNESS 85803953

WIRE HARNESS 85803953

WIRE HARNESS 85803953

1 85803953

  • 85803953 - WIRE HARNESS

2 85805380

  • 85805380 - WIRE HARNESS

3 85815520

  • 85815520 - WIRE HARNESS

4 85802590

  • 85802590 - WIRE HARNESS

5 85806137

  • 85806137 - WIRE HARNESS

6 85806133

  • 85806133 - FLASHER SWITCH

7 14143790

  • 14143790 - BULB
  • 12V
  • 1.2W

8 83961521

  • 83961521 - LIGHT SWITCH

9 13309417

  • 13309417 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M4 x 20mm
  • Cl 5.8
  • Full Thd

10 89824840

  • 89824840 - WASHER
  • 4.3mm ID x 9mm OD x 0.8mm Thk

11 81865261

  • 81865261 - WASHER
  • 6.8mm ID x 12mm OD x 3mm Thk

12 85806132

  • 85806132 - FLASHER UNIT

13 85806131

  • 85806131 - KIT

14 85807860

  • 85807860 - KIT

15 85807861

  • 85807861 - WIRE HARNESS

16 85808460

  • 85808460 - PLUG
