(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

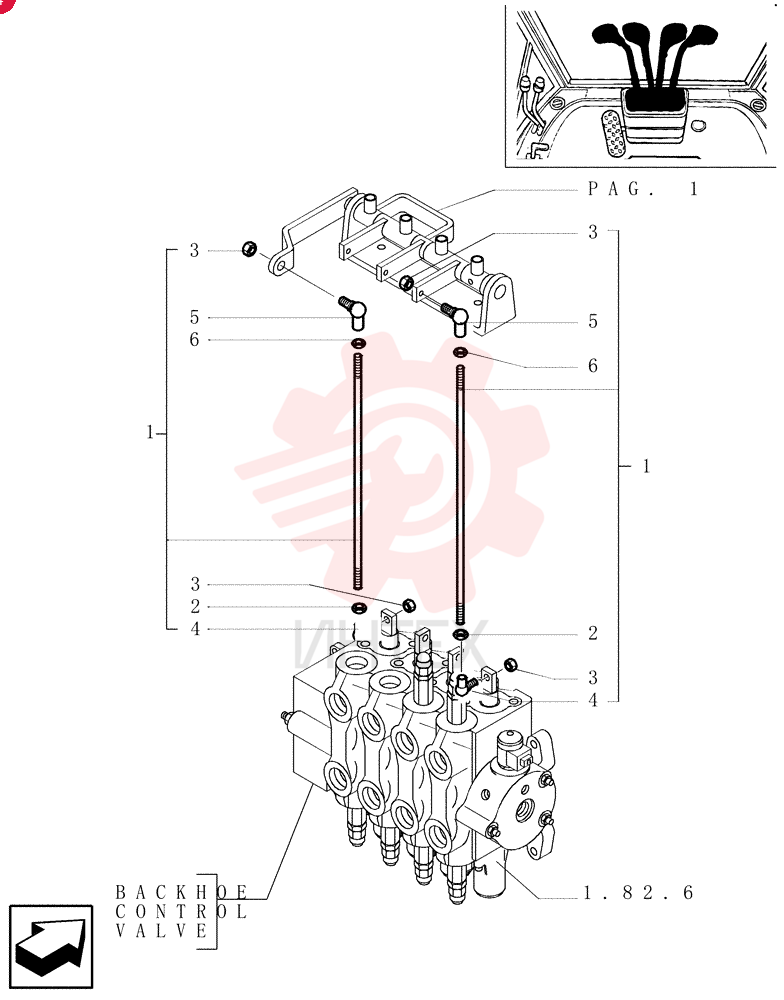

TIE-ROD 85803105

TIE-ROD 85803105

TIE-ROD 85803105

1 85803105

  • 85803105 - TIE-ROD

2 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

3 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

4 85804376

  • 85804376 - BALL JOINT
  • M8

5 85804375

  • 85804375 - BALL JOINT
  • M8

6 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
