New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

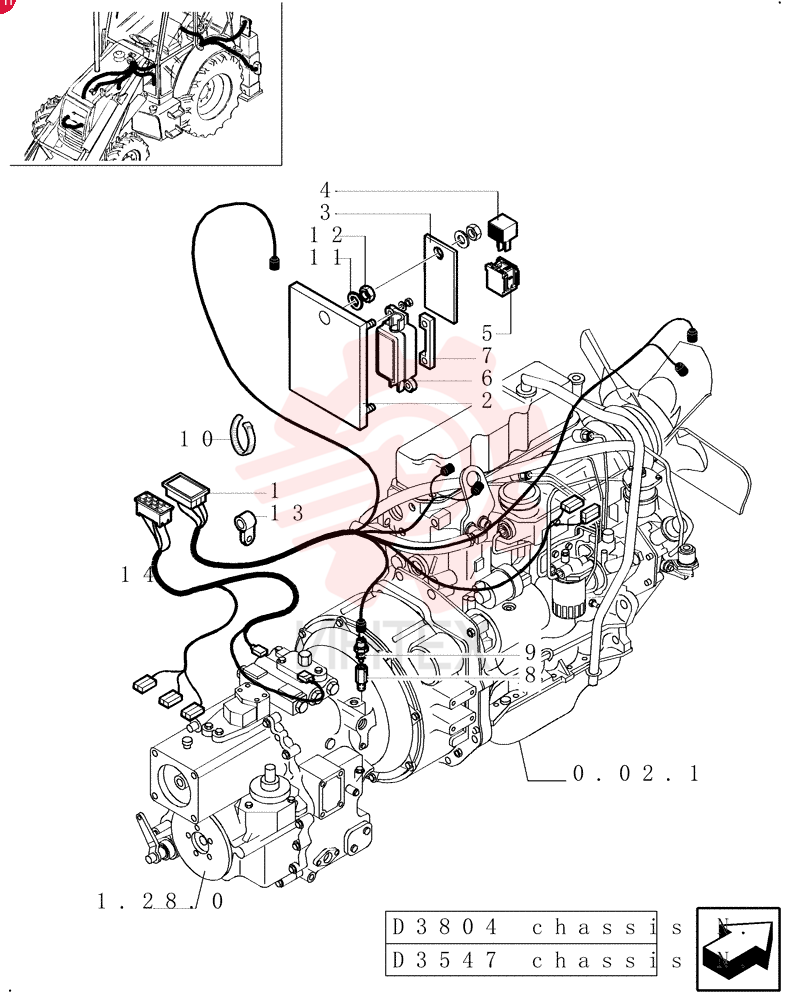

WIRE HARNESS 85803859

WIRE HARNESS 85803859

WIRE HARNESS 85803859

1 85803859

  • 85803859 - WIRE HARNESS

2 85802507

  • 85802507 - WIRE HARNESS

3 85805809

  • 85805809 - WIRE HARNESS

4 85803863

  • 85803863 - PLATE

5 85805687

  • 85805687 - SUPPORT

6 85803862

  • 85803862 - PLATE

7 85805162

  • 85805162 - RELAY
  • 12V
  • 70A

8 85803865

  • 85803865 - ELEC CONNECTOR

9 85803864

  • 85803864 - FUSE HOLDER

10 12393149

  • 12393149 - FUSED LINK

11 85803524

  • 85803524 - ADAPTER
  • M16 x 1.5 x 9/16" - 18 ORB

12 85803879

  • 85803879 - SENSOR
  • M16 x 1.5

13 85803332

  • 85803332 - CABLE TIE
  • M4.8 x 180

14 14560187

  • 14560187 - COLLAR
  • 199mm L

15 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

16 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10

17 85802889

  • 85802889 - CLAMP

18 85803860

  • 85803860 - WIRE HARNESS

19 85805810

  • 85805810 - WIRE HARNESS
