New Holland Construction
/
(655E) - TRACTOR LOADER BACKHOE (1/96-)
/

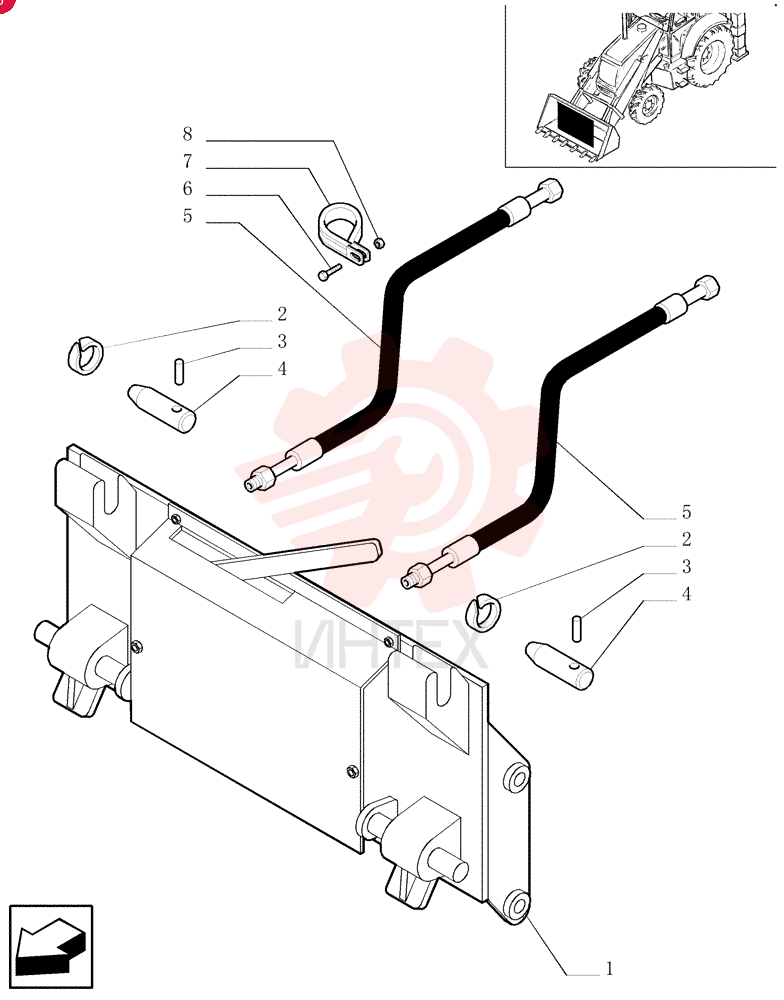

QUICK MALE COUPLING 85802809

QUICK MALE COUPLING 85802809

QUICK MALE COUPLING 85802809

1 85802809

  • 85802809 - QUICK MALE COUPLING
  • Loader

2 85802992

  • 85802992 - RING
  • 54mm ID x 59mm OD x 10mm Thk

3 85802993

  • 85802993 - PIN
  • 12mm OD x 55mm L

4 85801051

  • 85801051 - PIN
  • 38.1mm OD x 205mm L

5 85813378

  • 85813378 - HYDRAULIC HOSE
  • 1000mm lg

6 16043924

  • 16043924 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8
  • Full Thd

7 85803393

  • 85803393 - CLAMP
  • 18mm
  • Coat
  • 12.5mm Bolt Hole
  • P Type

8 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10
