(B110B) - BACKHOE LOADER TIER 3 (2008)
/

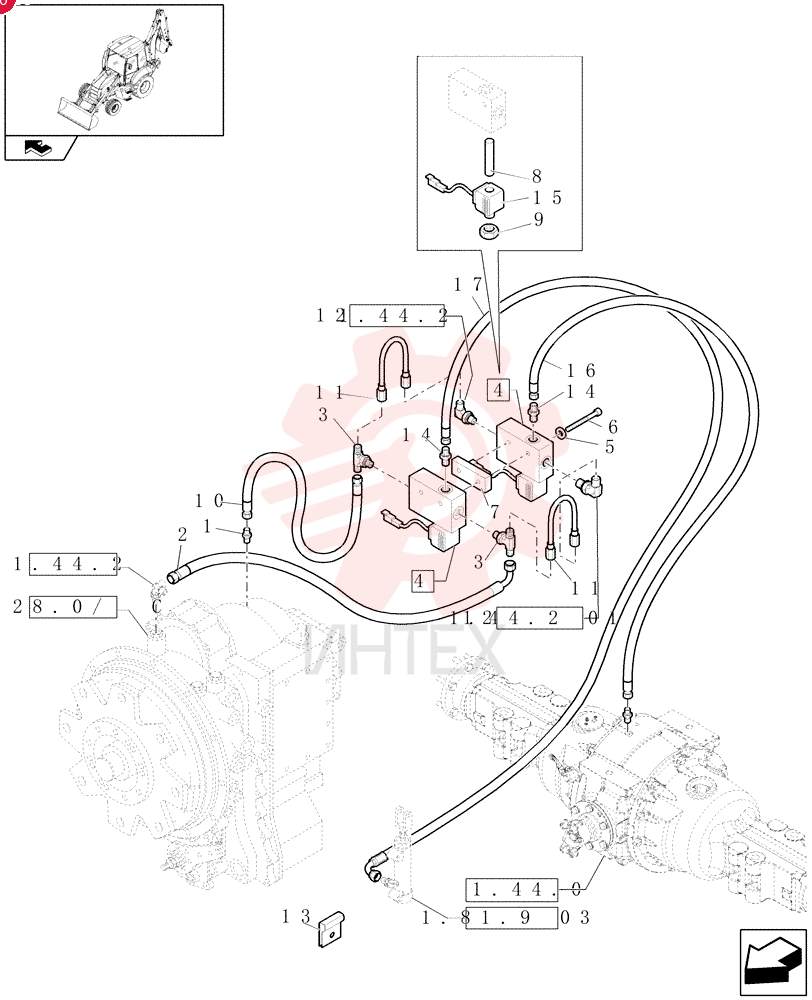

HYD CONNECTOR 87403805 (1)

HYD CONNECTOR 87403805 (1)

HYD CONNECTOR 87403805 (1)

1 87403805

  • 87403805 - HYD CONNECTOR

2 85819069

  • 85819069 - FLEXIBLE HOSE

3 85802231

  • 85802231 - TEE

4 85817265

  • 85817265 - SOLENOID VALVE
  • 12V

5 11197779

  • 11197779 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk

6 11030921

  • 11030921 - BOLT
  • Hex
  • M6 x 85mm
  • Cl 8.8

7 85824110

  • 85824110 - PLATE

8 85810977

  • 85810977 - CARTRIDGE

9 9970384

  • 9970384 - RING NUT

10 85819068

  • 85819068 - FLEXIBLE HOSE
  • 6.40 mm ID x 2100 mm L

11 85819083

  • 85819083 - HYD TUBE

12 85802234

  • 85802234 - 90 ELBOW
  • 7/16"-20 JIC x 9/16"-18 ORB

13 14560187

  • 14560187 - COLLAR
  • 199mm L

14 85803312

  • 85803312 - HYD CONNECTOR
  • 7/16"-20 JIC x 9/16"-18 ORB

15 87357715

  • 87357715 - SOLENOID
  • 12V
  • 20W

16 87342832

  • 87342832 - FLEXIBLE HOSE

17 85819071

  • 85819071 - FLEXIBLE HOSE
