(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

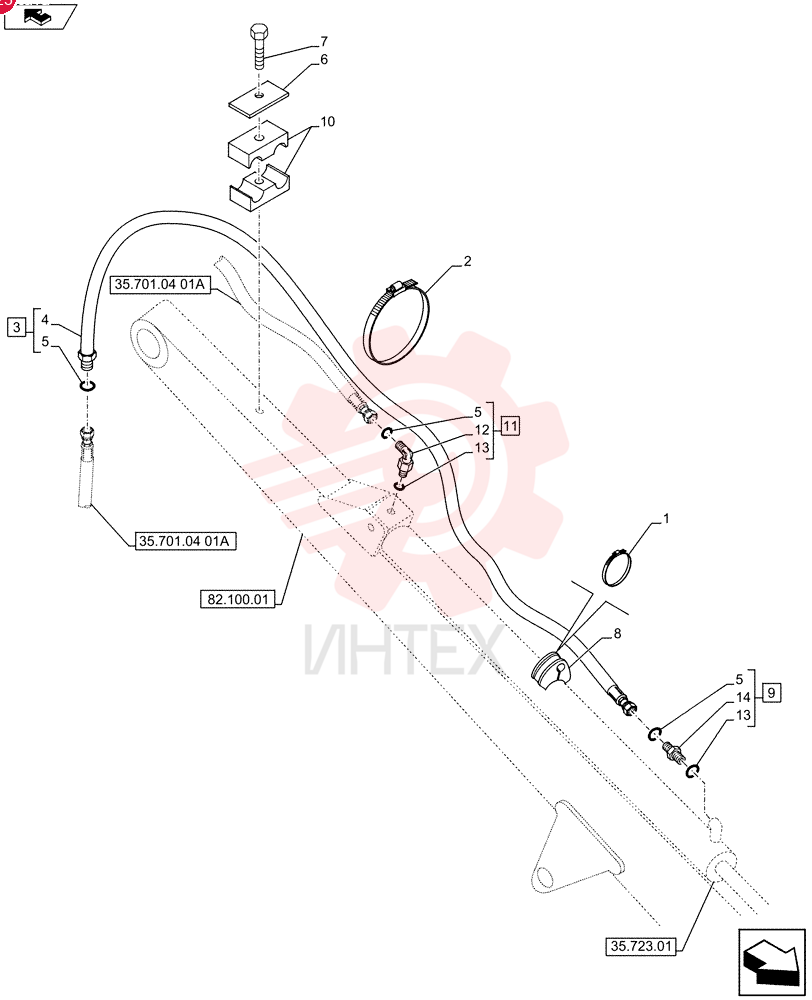

HOSE CLAMP,110mm - 130mm

HOSE CLAMP,110mm - 130mm

HOSE CLAMP,110mm - 130mm

1 85803008

  • 85803008 - HOSE CLAMP
  • 110mm - 130mm

2 14560187

  • 14560187 - COLLAR
  • 199mm L

3 85813379

  • 85813379 - FLEXIBLE HOSE
  • 9.53mm ID x 1860mm L

4 NSS

  • NSS - NOT SOLD SEPARAT

5 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

6 87390514

  • 87390514 - PLATE

7 16044321

  • 16044321 - BOLT
  • M8 x 1.25 x 55mm
  • Cl 8.8

8 85805567

  • 85805567 - BLOCK

9 83963376

  • 83963376 - FITTING
  • 13/16"-16 ORFS x 7/8"-14 ORB

10 87390511

  • 87390511 - CLAMP
  • 16mm ID

11 85802961

  • 85802961 - ELBOW
  • 13/16"-16 UN-2A x 7/8"-14 UNF-2A

12 NSS

  • NSS - NOT SOLD SEPARAT

13 167269

  • 167269 - O-RING
  • 0.097" Thk x 0.755" ID
  • -910
  • Cl 6
  • 90 Duro

14 NSS

  • NSS - NOT SOLD SEPARAT
