(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

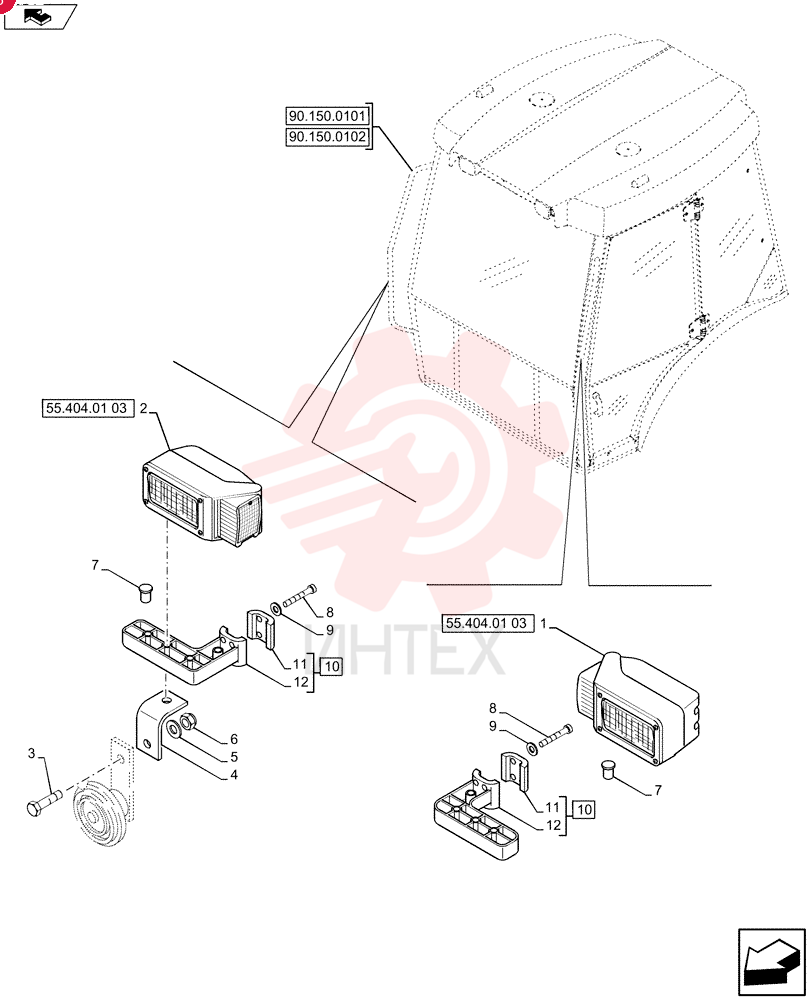

LH HEADLAMP,12V

LH HEADLAMP,12V

LH HEADLAMP,12V

1 85821385

  • 85821385 - LH HEADLAMP
  • 12V

2 85821384

  • 85821384 - RH HEADLAMP
  • T4W
  • 12V
  • 4W

3 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

4 87358963

  • 87358963 - RETAINER COLLAR
  • 40mm L x 23mm W x 3mm Thk

5 10519611

  • 10519611 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

6 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

7 5132136

  • 5132136 - CAP COVER
  • M8

8 14305324

  • 14305324 - HEX SOC SCREW
  • M6 x 20mm
  • Cl 8.8

9 10569274

  • 10569274 - LOCK WASHER

10 85819828

  • 85819828 - SUPPORT

11 85812123

  • 85812123 - HALF-CONNECTOR

12 NSS

  • NSS - NOT SOLD SEPARAT
