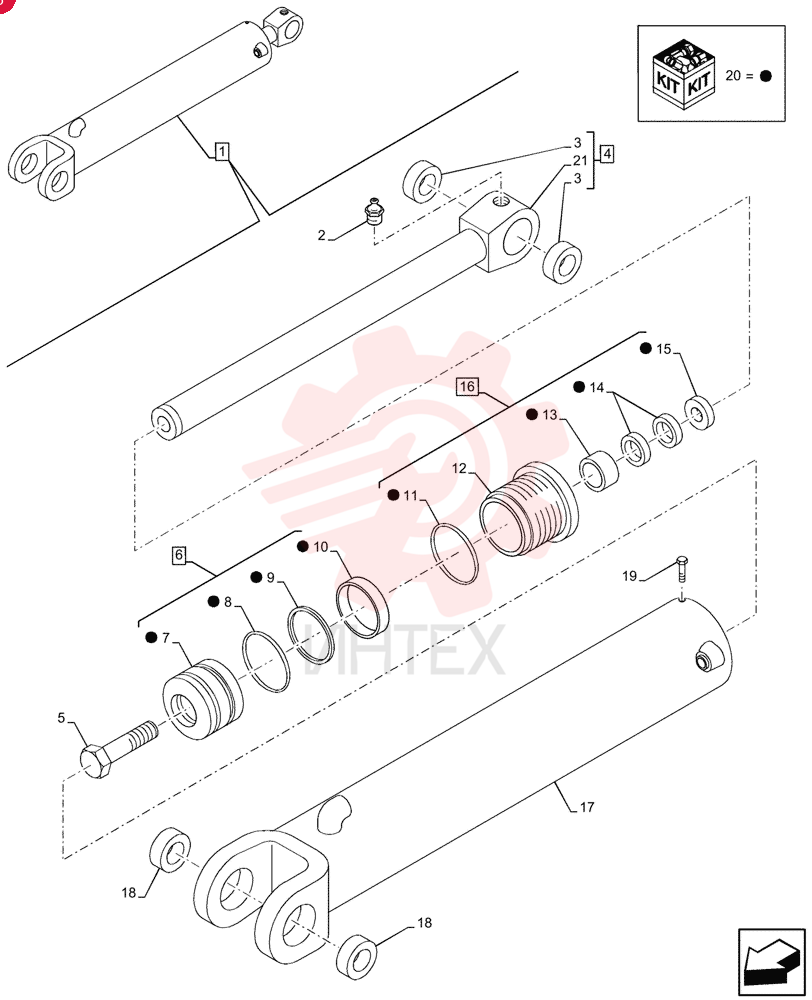

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127mm Bore, 701mm Stroke 47401832 (3)
1 47401832
- 47401832 - HYDRAULIC CYLINDER
- Double Acting
- 63.5mm Rod
- 127mm Bore
- 701mm Stroke
2 47401832R
- 47401832R - REMAN-HYD CYLINDER
3 47401832C
- 47401832C - CORE-HYD CYLINDER
4 219-1
- 219-1 - LUBE NIPPLE
- 1/8" - 27 NPTF
5 D149079
- D149079 - BUSHING
- 50.19mm ID x 60mm OD x 34mm L
6 87382089
- 87382089 - ROD
- 63.5mm OD x 858.2mm L
7 86982444
- 86982444 - SPECIAL BOLT
- Hex
- 12
- 1 1/2 x 3.50"
8 87591992
- 87591992 - PISTON
9 87591991
- 87591991 - PISTON
10 G102091
- G102091 - SEAL
- 128.52mm OD x 6.96mm Thk
11 G102092
- G102092 - RING
- Square
- 5.28mm Thk x 113.92mm ID
12 G102090
- G102090 - RING
- 127mm OD
- Ext
13 87615485
- 87615485 - SEAL
- 118.72mm ID x 125.88mm OD x 4.85mm Thk
14 87598245
- 87598245 - GLAND
15 G109908
- G109908 - BUSHING
- 63.5mm ID x 66.57mm OD x 25.15mm L
16 1542879C1
- 1542879C1 - SEAL KIT
- 63.5mm Rod x 88.9mm Bore
17 D95146
- D95146 - WIPER SEAL
- 63.4mm ID x 76.22mm OD x 7.92mm Thk
18 84153797
- 84153797 - GLAND
19 NSS
- NSS - NOT SOLD SEPARAT
20 123407A1
- 123407A1 - BUSHING
- 60.19mm ID x 70mm OD x 28mm L
21 G109395
- G109395 - SELF-TAP SCREW
- Hex
- #8 - 32 x 3/8"
22 84154167
- 84154167 - SEAL KIT
- 63.5mm Rod x 127mm Bore
23 NSS
- NSS - NOT SOLD SEPARAT
