New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

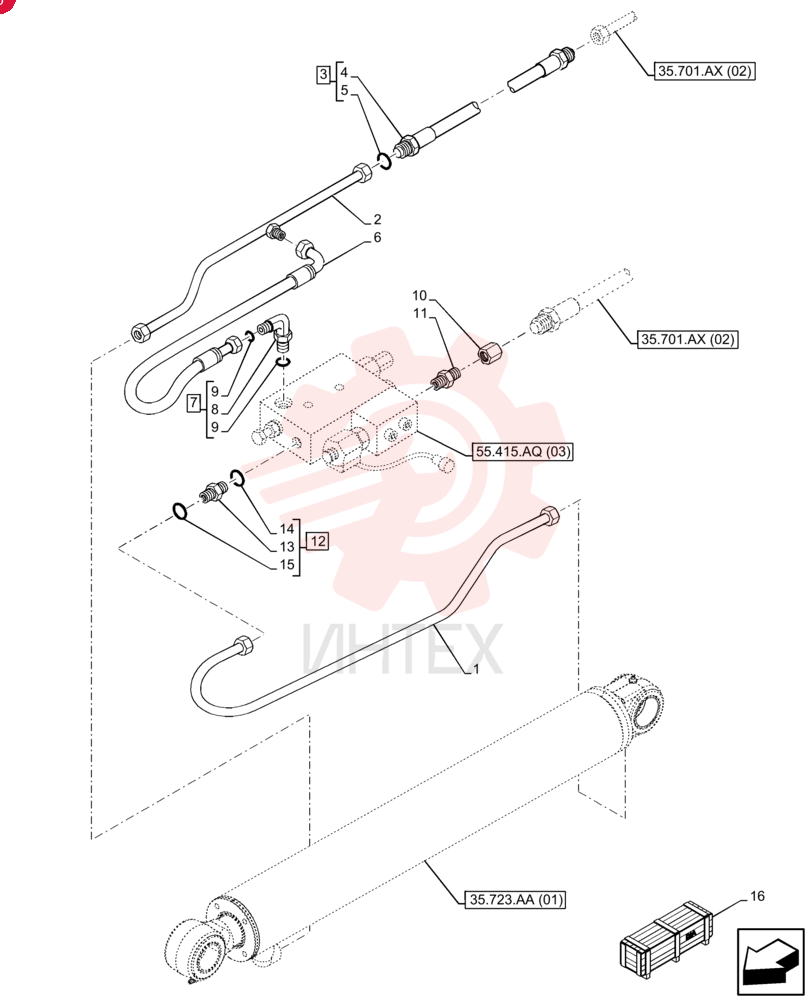

PIPE 47390944

PIPE 47390944

PIPE 47390944

1 47390944

  • 47390944 - PIPE

2 47392397

  • 47392397 - PIPE

3 47390939

  • 47390939 - PIPE

4 47390842

  • 47390842 - HOSE
  • 12.7mm ID x 533mm L
  • SAE 100R16

5 NSS

  • NSS - NOT SOLD SEPARAT

6 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

7 85815506

  • 85815506 - FLEXIBLE HOSE
  • 6.35mm ID x 300mm L

8 85805220

  • 85805220 - ELBOW
  • 90 Degree
  • 9/16"-18 x 9/16"-18 Adj
  • ORFS

9 NSS

  • NSS - NOT SOLD SEPARAT

10 9825770

  • 9825770 - O-RING
  • 0.07" Thk x 0.301" ID
  • -11
  • Cl 6
  • 90 Duro

11 85802819

  • 85802819 - TUBE NUT
  • 1"-14 x 24mm L

12 85805217

  • 85805217 - FITTING
  • 13/16"-16 ORFS Fem x 3/4"-16 ORB

13 87351379

  • 87351379 - HYD CONNECTOR

14 NSS

  • NSS - NOT SOLD SEPARAT

15 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro

16 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

17 718391039

  • 718391039 - KIT DIA
  • CRAWLER EXC
