(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

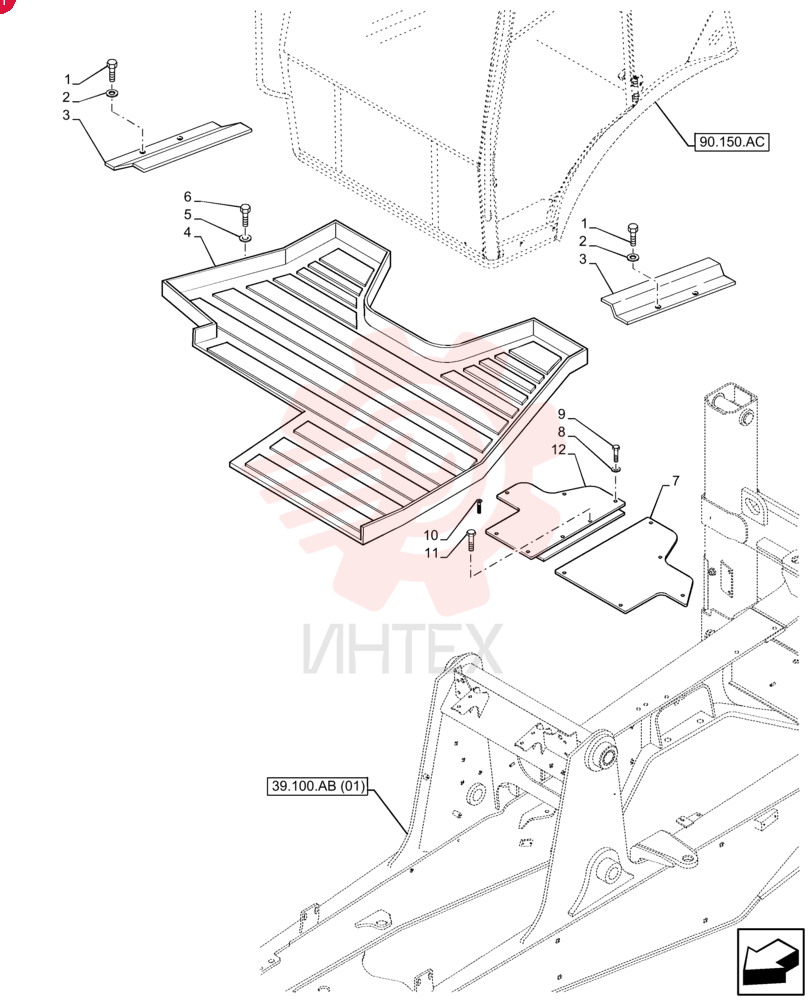

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd 10902624 (2)

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd 10902624 (2)

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd 10902624 (2)

1 10902624

  • 10902624 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
  • Full Thd

2 12640621

  • 12640621 - WASHER
  • 6.15mm ID x 25mm OD x 2mm Thk

3 85805591

  • 85805591 - DOOR SILL MOULDING

4 87410108

  • 87410108 - MAT

5 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

6 13311217

  • 13311217 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 20mm
  • Cl 5.8
  • Full Thd

7 87426546

  • 87426546 - TOP COVER

8 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

9 10902524

  • 10902524 - SCREW
  • Hex
  • M6 x 22mm
  • Cl 8.8

10 14441521

  • 14441521 - SCREW
  • Flat Csk Hd
  • M6 x 25mm
  • Cl 8.8

11 14568887

  • 14568887 - FASTENER
  • M8 x 0.7 x 29mm

12 87426550

  • 87426550 - TOP COVER
