New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

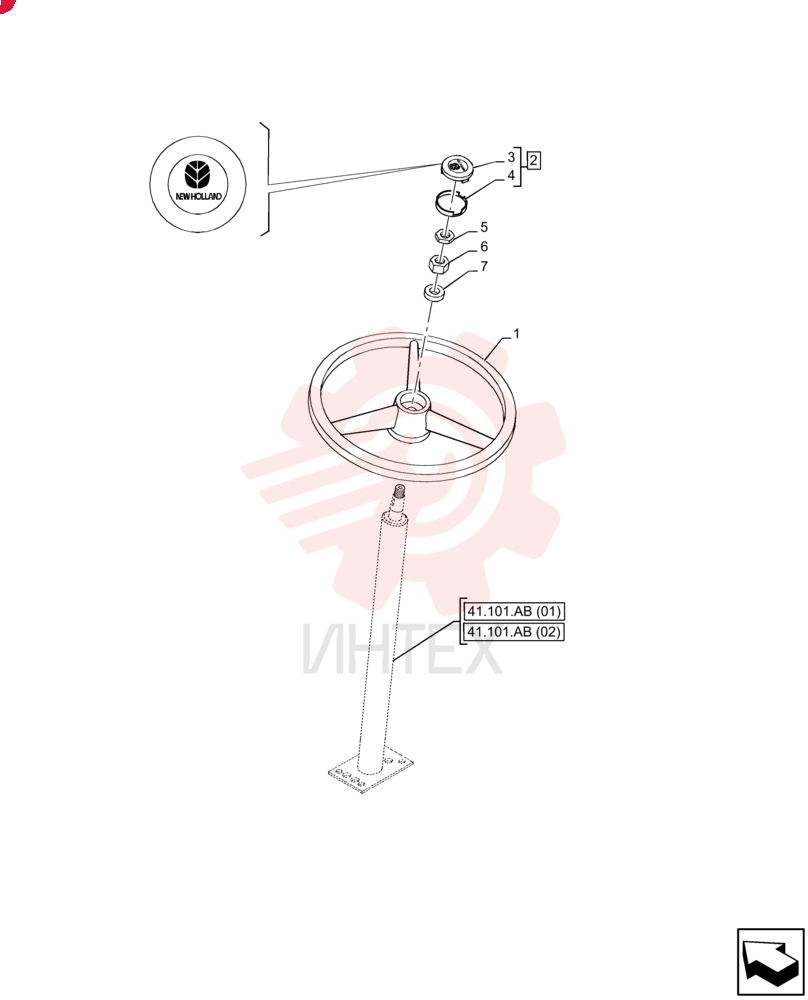

STEERING WHEEL 5148946

STEERING WHEEL 5148946

STEERING WHEEL 5148946

1 5148946

  • 5148946 - STEERING WHEEL

2 85820105

  • 85820105 - CAP

3 5131883

  • 5131883 - GASKET
  • 59mm ID

4 5167652

  • 5167652 - COVER

5 10791423

  • 10791423 - THIN NUT
  • M16 x 1.5
  • Cl 05

6 10791414

  • 10791414 - THIN NUT
  • M16 x 1.5

7 4998760

  • 4998760 - WASHER
  • 17.2mm ID x 32mm OD x 3.5mm Thk
