(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

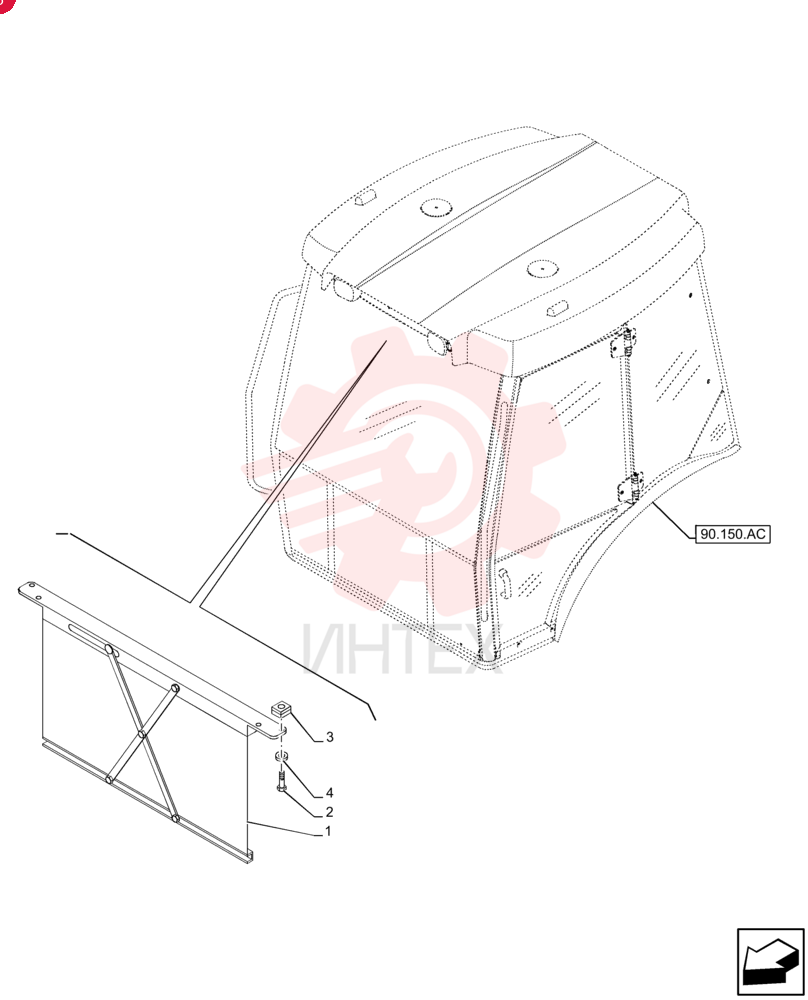

SUNSHADE 5176441

SUNSHADE 5176441

SUNSHADE 5176441

1 5176441

  • 5176441 - SUNSHADE

2 14303324

  • 14303324 - HEX SOC SCREW
  • M4 x 20mm
  • Cl 8.8
  • Full Thd

3 14197790

  • 14197790 - NUT
  • M4 x .7
  • Cage

4 12642821

  • 12642821 - WASHER
  • 4.15mm ID x 12mm OD x 1mm Thk
