(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

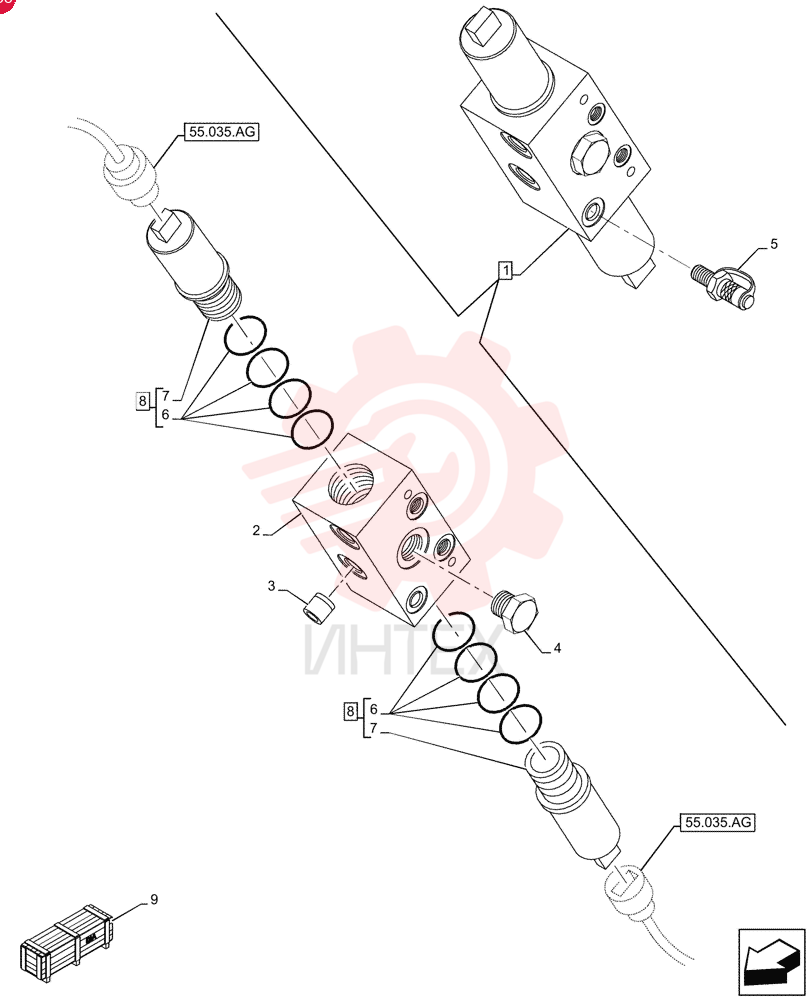

CONTROL VALVE 47765054 (3)

CONTROL VALVE 47765054 (3)

CONTROL VALVE 47765054 (3)

1 47765054

  • 47765054 - CONTROL VALVE

2 NSS

  • NSS - NOT SOLD SEPARAT

3 87311363

  • 87311363 - ORIFICE
  • 1.8mm ID

4 47761897

  • 47761897 - VALVE
  • PRESSURE CONT

5 85828211

  • 85828211 - QUICK MALE COUPLING
  • 7/16" Male

6 85828000

  • 85828000 - SEAL KIT

7 NSS

  • NSS - NOT SOLD SEPARAT

8 85827993

  • 85827993 - SOLENOID VALVE

9 741340049

  • 741340049 - KIT

10 741741129

  • 741741129 - CONSTRUCTION DIA

11 741340069

  • 741340069 - KIT

12 741741149

  • 741741149 - CONSTRUCTION DIA
