New Holland Construction
/
(C227) - COMPACT TRACK LOADER (4/11-)
/

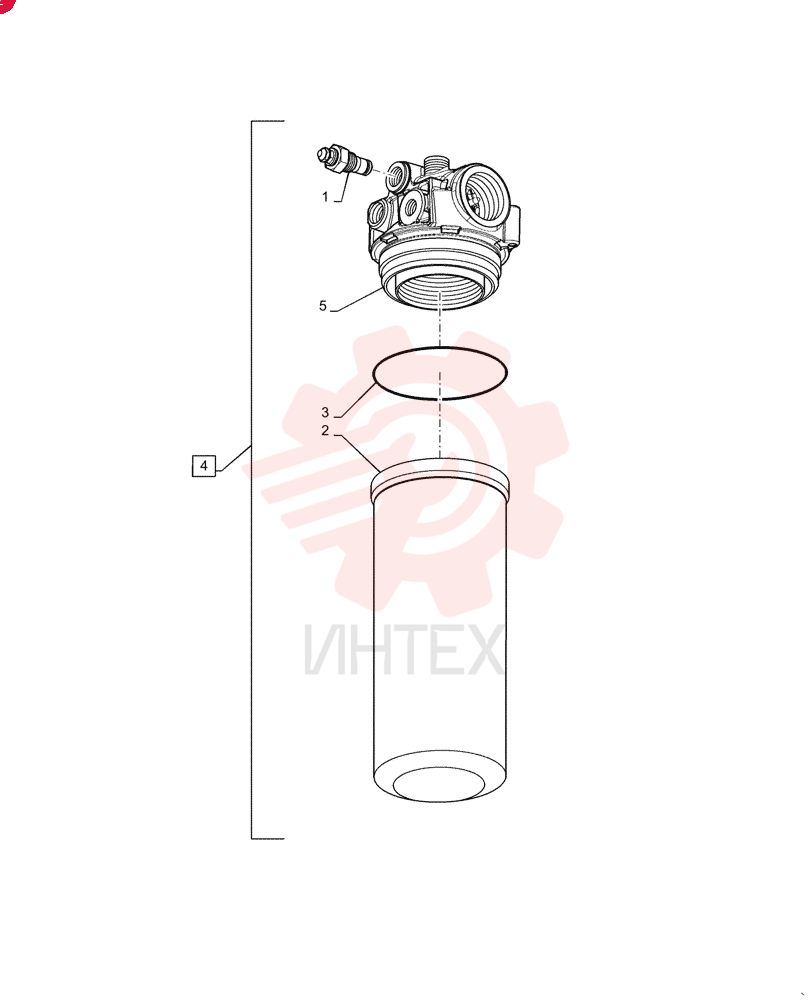

DIFF PRESSURE SWITCH 84271665

DIFF PRESSURE SWITCH 84271665

DIFF PRESSURE SWITCH 84271665

1 84271665

  • 84271665 - DIFF PRESSURE SWITCH
  • Indicator

2 47710533

  • 47710533 - HYDRAULIC OIL FILTER
  • 245.1mm L x 98.8mm W

3 84274694

  • 84274694 - WEAR RING
  • 3.45" ID x 3.94" OD x 0.05" Thk
  • Pressure

4 47710532

  • 47710532 - FILTER ASSY
  • Incl 1 - 3
  • 5

5 NSS

  • NSS - NOT SOLD SEPARAT
  • Filter Head
  • Included With Ref 4
