New Holland Construction
/
(C227) - COMPACT TRACK LOADER (4/11-)
/

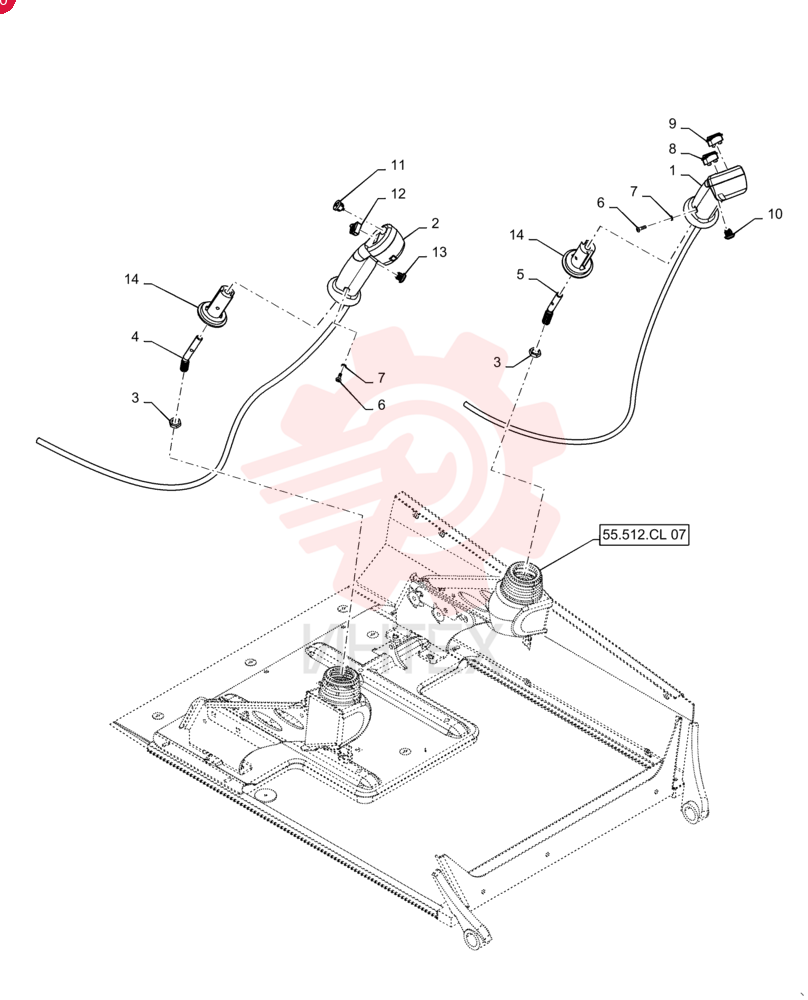

HANDLE GRIP 84280479

HANDLE GRIP 84280479

HANDLE GRIP 84280479

1 84280479

  • 84280479 - HANDLE GRIP
  • New Holland Level 250 LH
  • W/Harness

2 84201284

  • 84201284 - HANDLE GRIP
  • New Holland Level 250 RH
  • W/Harness

3 9706685

  • 9706685 - NUT
  • M12 x 1.75
  • Cl 8

4 87619016

  • 87619016 - ROD
  • Angled

5 87619017

  • 87619017 - ROD
  • Angled

6 87742597

  • 87742597 - HEX SOC SCREW
  • Locking
  • #10 - 32 x 5/8"

7 80684

  • 80684 - LOCK WASHER
  • 4.9mm ID x 8.48mm OD x 1.19mm Thk

8 87447407

  • 87447407 - SWITCH
  • 2-Speed

9 87427353

  • 87427353 - SWITCH
  • Turn Signal

10 87427352

  • 87427352 - SWITCH
  • Trigger
  • Horn

11 84296543

  • 84296543 - SWITCH
  • Dome
  • Float

12 84282677

  • 84282677 - SWITCH
  • Proportional Hydraulic

13 87427352

  • 87427352 - SWITCH
  • Ride Control

14 87527964

  • 87527964 - ADAPTER
  • Pilot Control Adapter
  • LH and RH
