New Holland Construction
/
(C227) - COMPACT TRACK LOADER (4/11-)
/

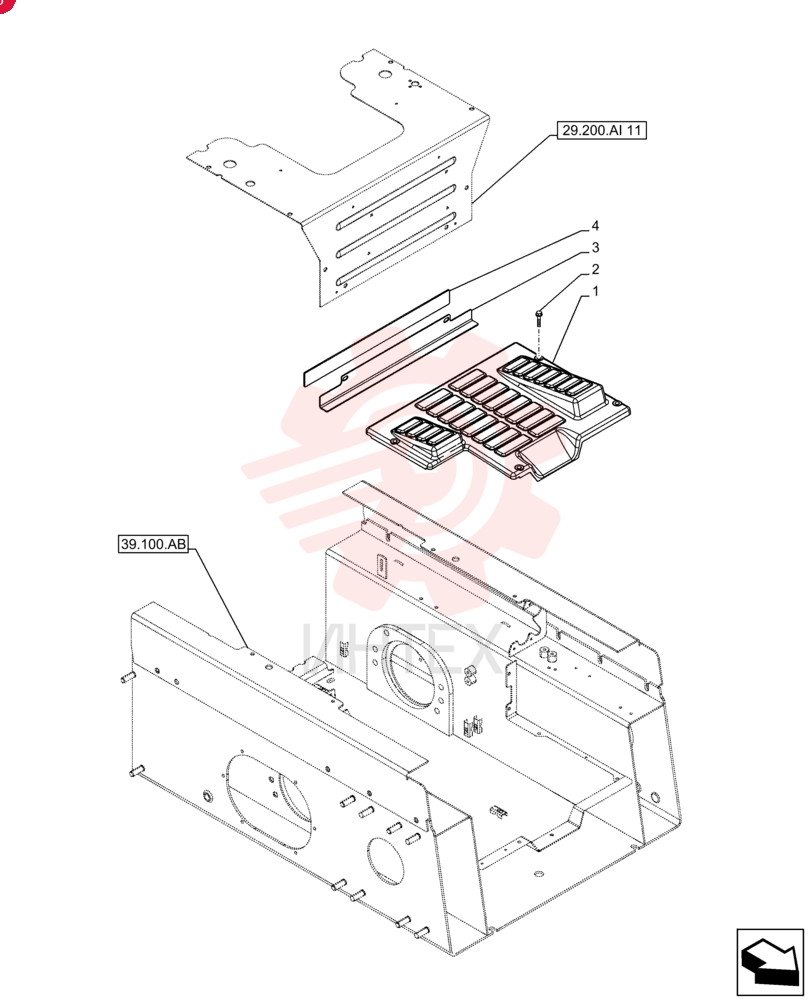

PLASTIC PLATE 84201060

PLASTIC PLATE 84201060

PLASTIC PLATE 84201060

1 84201060

  • 84201060 - PLASTIC PLATE

2 84312232

  • 84312232 - SELF-TAP SCREW

3 84341453

  • 84341453 - ANGLE

4 87061045

  • 87061045 - ADHESIVE STRIP
