New Holland Construction
/
(C227) - COMPACT TRACK LOADER (4/11-)
/

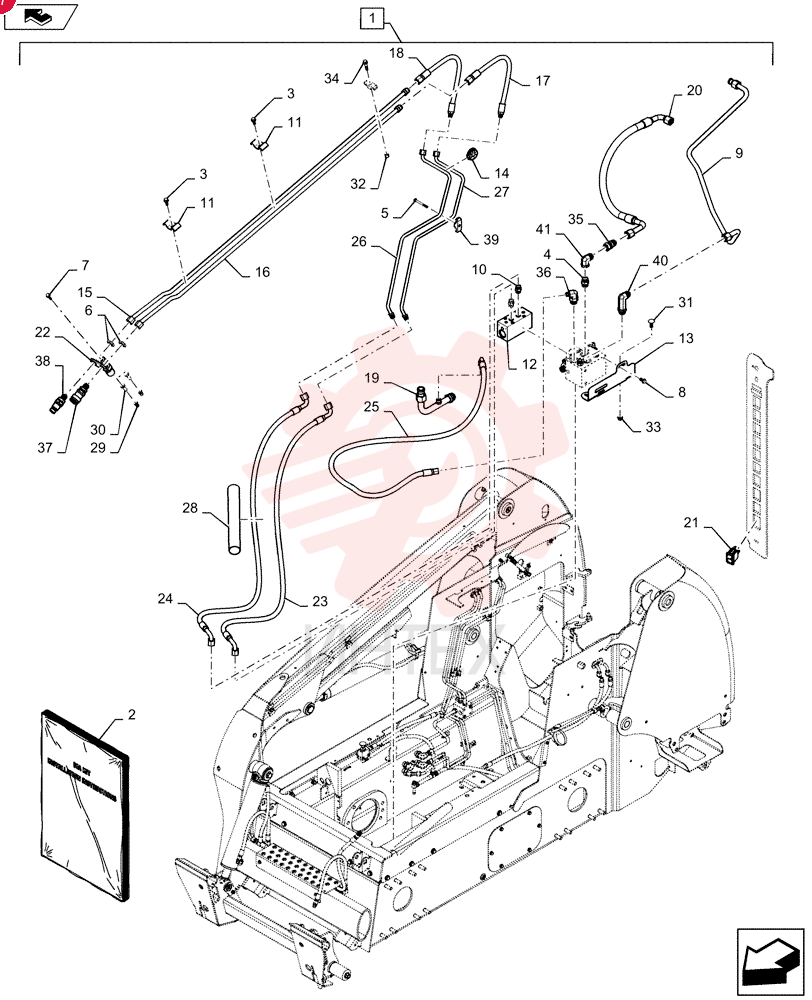

KIT 47483682

KIT 47483682

KIT 47483682

1 47483682

  • 47483682 - KIT
  • 2nd Front Hyd Aux DIA KIT
  • Incl 2 - 41

2 47483691

  • 47483691 - INSTRUCTION
  • Sheet
  • 2nd Front Hyd Aux Kit

3 280476

  • 280476 - SELF-TAP SCREW
  • HWH
  • 3/8"-16 x 1"

4 322896

  • 322896 - HYD CONNECTOR
  • 1-1/16" - 12 ORB x 1-1/16" - 12 JIC

5 366046

  • 366046 - CARRIAGE BOLT
  • Sq Nk
  • M8 x 1.25 x 80mm
  • Cl 8.8

6 595460

  • 595460 - BHD LOCK NUT
  • 7/8" - 14

7 9804260

  • 9804260 - BOLT
  • Hex
  • M8 x 1.25 x 30mm
  • Full Thd
  • Cl 8.8

8 9804261

  • 9804261 - BOLT
  • Hex
  • M10 x 25mm
  • Cl 8.8
  • Full Thd

9 47482778

  • 47482778 - TUBE
  • Tube Assy

10 81827427

  • 81827427 - HYD CONNECTOR
  • 3/4" - 16 JIC x 3/4" - 16 ORB

11 84252828

  • 84252828 - CLAMP
  • 65.2mm L
  • Butterfly Tube

12 84292198

  • 84292198 - VALVE
  • EH Secondary Aux

13 84322489

  • 84322489 - SUPPORT
  • 2nd Aux Valve

14 84322490

  • 84322490 - GROMMET
  • Hydraulic Tube

15 84327653

  • 84327653 - RIGID TUBE
  • 2nd Aux Arm - B1

16 84327655

  • 84327655 - RIGID TUBE
  • 2nd Aux Arm - A1

17 84327656

  • 84327656 - HOSE ASSY.
  • 2nd Aux Arm - A1

18 84327657

  • 84327657 - HOSE ASSY.
  • 2nd Aux Arm - B1

19 84332288

  • 84332288 - RIGID TUBE
  • 2nd Aux Valve Return

20 84355404

  • 84355404 - HOSE ASSY.
  • 2nd Aux Supply

21 84392527

  • 84392527 - SWITCH
  • Rocker
  • Aux Electric

22 84474235

  • 84474235 - BRACKET
  • Aux Coupler

23 84474953

  • 84474953 - HOSE ASSY.
  • 2nd Aux A

24 84474956

  • 84474956 - HOSE ASSY.
  • 2nd Aux B

25 84475145

  • 84475145 - HOSE ASSY.
  • 2nd Aux Return

26 84475164

  • 84475164 - HYD TUBE
  • 2nd Aux A - 2

27 84475167

  • 84475167 - HYD TUBE
  • 2nd Aux B - 2

28 84475182

  • 84475182 - HOSE PROTECTION
  • Guard

29 84531322

  • 84531322 - RIVET
  • 12.7mm OD x 21.5mm L

30 84580760

  • 84580760 - RIVET
  • Flng
  • 14mm OD x 21.5mm L

31 86507486

  • 86507486 - CARRIAGE BOLT
  • M8 x 1.25 x 20mm
  • Cl 8.8

32 86589143

  • 86589143 - SPACER
  • 9.5mm ID x 15.9mm OD x 12.7mm L

33 86619801

  • 86619801 - FLANGE NUT
  • M8 x 1.25
  • Cl 8

34 87025275

  • 87025275 - SCREW
  • Hex
  • 3/8" - 16 x 2-1/2"

35 87058492

  • 87058492 - HYD CONNECTOR
  • 1-1/16" - 12 JIC x 1-1/16" - 12 Fem Sw

36 87329785

  • 87329785 - ELBOW
  • 90 Degree
  • 1-1/16" - 12 ORB x 3/4" - 16 JIC

37 87741499

  • 87741499 - COUPLING
  • QUICK
  • FEM
  • 7/8" - 14
  • 37 Degree x ISO 12.5mm
  • Quick Coupling Female

38 87741500

  • 87741500 - QUICK MALE COUPLING
  • 7/8" - 14
  • 37 Degree x ISO 12.5mm
  • Quick Coupling Male

39 D120679

  • D120679 - CLAMP
  • Tube
  • 1/2"

40 84569

  • 84569 - ELBOW
  • 90 Degree
  • 1-1/16" - 12
  • 37 Degree x 1-1/16" - 12
  • LG

41 219603

  • 219603 - 90 ELBOW
  • 1-1/16" - 12 JIC x 1-1/16" - 12
  • 37 Degree Fem Sw
