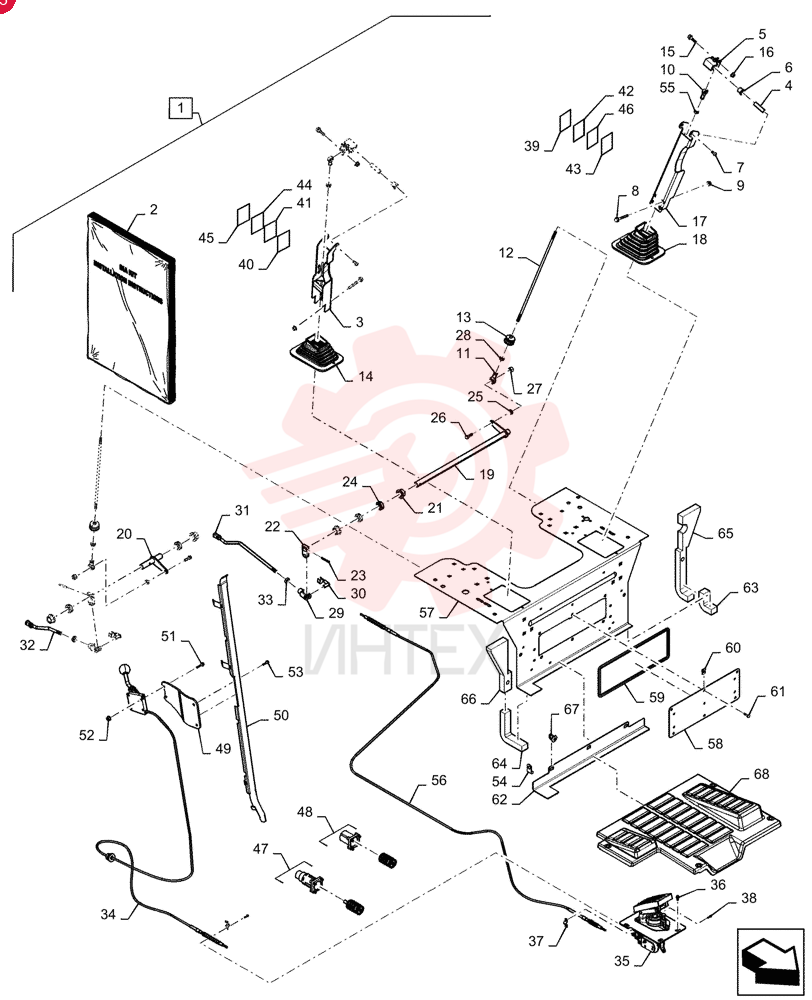

KIT 47889990
1 47889990
- 47889990 - KIT
- Hand Controls
- Incl 2 - 68
2 47943681
- 47943681 - INSTRUCTION
- Sheet
3 47535433
- 47535433 - HANDLE
- RH
- C Channel
- Gray
4 84302564
- 84302564 - ROD
- 12.6mm OD x 50mm L
5 84535678
- 84535678 - KNUCKLE JOINT
- Hand Control
6 86013179
- 86013179 - FLANGED BEARING
- 0.502" ID x 0.875" OD x 0.75" W
7 84406845
- 84406845 - SCREW
- BTN HD
- M8 x 1.25 x 16mm
- Cl 10.9
8 86511843
- 86511843 - BOLT
- Hex Flng
- M8 x 1.25 x 60mm
- Cl 8.8
9 9804277
- 9804277 - FLANGE NUT
- Hex
- M8 x 1.25
- Cl 8
10 84263144
- 84263144 - BALL JOINT
- 5/16" - 24
11 221665
- 221665 - EYE
- 5/16" - 24
12 84300731
- 84300731 - THREADED ROD
- 7.94mm OD x 456mm L
13 84201371
- 84201371 - BOOT
- Control Rod
14 84339565
- 84339565 - BOOT
- RH
- Control Handle
15 9804260
- 9804260 - BOLT
- Hex
- M8 x 1.25 x 30mm
- Full Thd
- Cl 8.8
16 86619801
- 86619801 - FLANGE NUT
- M8 x 1.25
- Cl 8
17 47535435
- 47535435 - HANDLE
- LH
- C Channel
- Gray
18 84339566
- 84339566 - BOOT
- LH
- Control Handle
19 84299773
- 84299773 - CONTROL SHAFT
- Boom
20 84299785
- 84299785 - CONTROL SHAFT
- Bucket
21 228500
- 228500 - BUSHING
- 19.07mm ID x 24.69mm OD x 15.88mm L
22 84561937
- 84561937 - PLATE
- Hand Control Ear
23 856800
- 856800 - GROOVED PIN
- 4.76mm OD x 38.1mm L
24 84291866
- 84291866 - RETAINER COLLAR
- 19.05mm ID x 31.75mm OD x 9.53mm W
- Incl Set Screw
25 87360034
- 87360034 - SPACER
- 8.48mm ID x 12.7mm OD x 3.5mm L
26 280483
- 280483 - BOLT
- Hex
- 5/16" - 24 x 1"
- Gr 5
- Full Thd
27 87034527
- 87034527 - LOCK NUT
- Prev Torque
- 5/16" - 24
- Type Non-Directional
28 86637933
- 86637933 - JAM NUT
- 5/16" - 24
- Gr 5
29 84299261
- 84299261 - CLEVIS
- 10mm ID x 20mm L
30 84299262
- 84299262 - CLEVIS PIN
- 10mm OD x 20mm L
31 84300039
- 84300039 - ROD
- 10mm OD x 283.7mm L
32 84300037
- 84300037 - ROD
- 10mm OD x 143.2mm L
33 84221258
- 84221258 - THIN NUT
- M10 x 1.5
- Cl 5
34 47409019
- 47409019 - HANDLE
- Throttle to Pedal
35 84374767
- 84374767 - THROTTLE CONTROL
36 86625199
- 86625199 - SELF-TAP SCREW
- Hex
- M6 x 1 x 13mm
37 84200938
- 84200938 - CLAMP
- Throttle Cable
38 86624126
- 86624126 - HEX SOC SCREW
- M4 x 16mm
- Cl 8.8
39 84353762
- 84353762 - DECAL
- LH
- New Holland Level 250
40 84353772
- 84353772 - DECAL
- RH
- New Holland Level 250
41 84396161
- 84396161 - DECAL
- RH
- New Holland Level 350
42 84353780
- 84353780 - DECAL
- LH
- New Holland Level 350
43 84353743
- 84353743 - DECAL
- LH
- Case Level 250
44 84353744
- 84353744 - DECAL
- RH
- Case Level 250
45 84353756
- 84353756 - DECAL
- RH
- Case Level 350
46 84396167
- 84396167 - DECAL
- LH
- Case Level 350 No 2nd Aux
47 84386278
- 84386278 - KIT
- Hand Boom Spring
48 84386277
- 84386277 - KIT
- Hand Bucket Spring
49 47536465
- 47536465 - MOUNT
- Hand Throttle
- Gray
50 47526360
- 47526360 - BRACKET
- RH Console
- Gray
51 86511839
- 86511839 - BOLT
- Hvy Hex
- M6 x 30mm
- Cl 8.8
52 9804276
- 9804276 - FLANGE NUT
- Hex
- M6 x 1
- Cl 8
53 84305556
- 84305556 - SCREW
- Round HD
- M6 x 1 x 25mm
- Cl 10.9
54 86639010
- 86639010 - CLAMP
- 9.5mm
- Coat
- 13.5mm Bolt Hole
- P Type
55 87034513
- 87034513 - JAM NUT
- 5/16" - 24
- LH Thd
- 0.195" High
- Gr 5
56 84258820
- 84258820 - CABLE
- 2640mm L
57 47969213
- 47969213 - PLATE
- Heel
- Gray
58 47921024
- 47921024 - PLATE
- Heel Cover
- Gray
59 47874049
- 47874049 - SEALING STRIP
- Bulk
- Vinyl Foam Tape
- 6.4mm Thick
- Cut to Length
- 1015mm
60 86625073
- 86625073 - SPRING NUT
- M6 x 1
61 86511830
- 86511830 - SCREW
- Phillips Drive
- Pan HD
- M6 x 20mm
- Cl 4.8
62 47628122
- 47628122 - ANGLE
- Heel Plate
- Gray
63 47869632
- 47869632 - FOAM INSULATION
- Floor Plate Angle
64 47917812
- 47917812 - FOAM INSULATION
- Floor Plate Angle
65 47914860
- 47914860 - FOAM INSULATION
- LH
- Heel Plate
66 84372629
- 84372629 - FOAM INSULATION
- RH
- Heel Plate
67 378884A2
- 378884A2 - STRAP
- 254mm L
68 47477965
- 47477965 - FLOOR
- Plate
