New Holland Construction
/
(C227) - COMPACT TRACK LOADER (4/11-)
/

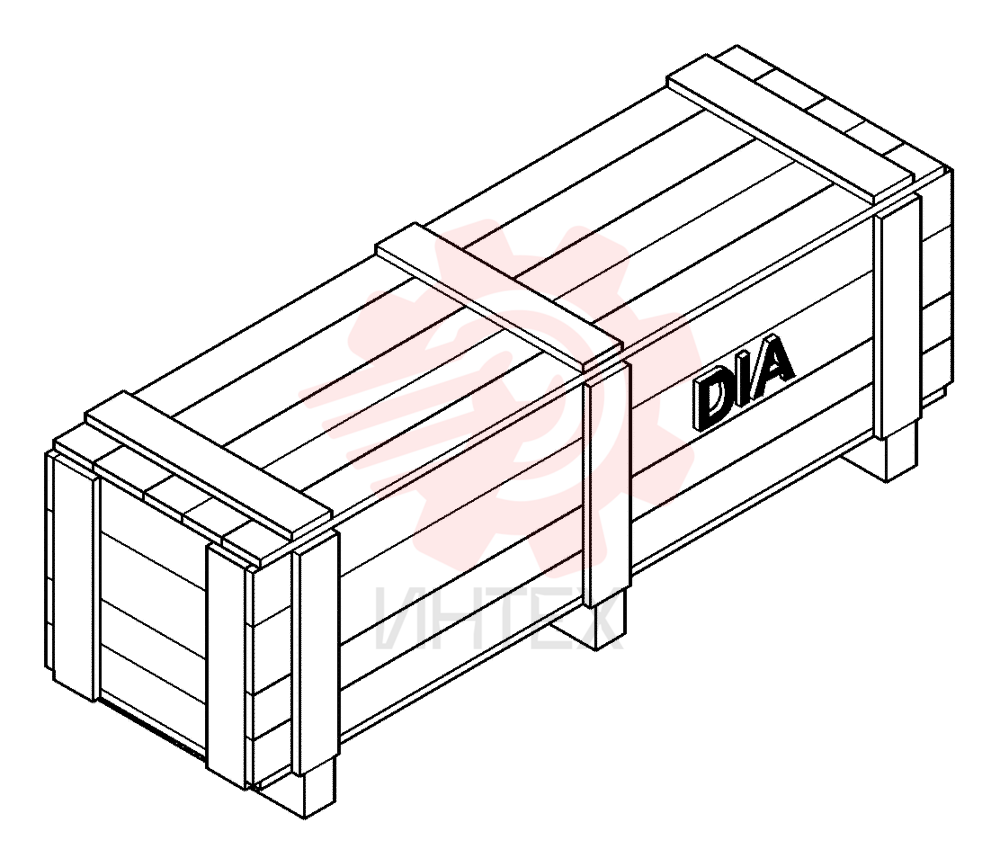

KIT 47925842

KIT 47925842

KIT 47925842

1 47925842

  • 47925842 - KIT
  • Loop Line Upgrade
  • Incl 2 - 19

2 48015272

  • 48015272 - INSTRUCTION
  • Sheet

3 47926578

  • 47926578 - HOSE
  • 19mm ID x 565mm L
  • SAE100R19

4 47926579

  • 47926579 - HOSE
  • 19mm ID x 475mm L
  • SAE100R19

5 47889297

  • 47889297 - HYD TUBE
  • RH Drive Motor

6 47889299

  • 47889299 - HYD TUBE
  • RH Drive Motor

7 47889336

  • 47889336 - HYD TUBE
  • LH Drive Motor

8 47889338

  • 47889338 - HYD TUBE
  • LH Drive Motor

9 47893401

  • 47893401 - GROMMET
  • Chassis

10 84187294

  • 84187294 - ADAPTER
  • 12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

11 87303844

  • 87303844 - HYD CONNECTOR
  • 1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

12 87326965

  • 87326965 - 90 ELBOW
  • 1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

13 257859A1

  • 257859A1 - PLATE
  • SPACER
  • 31.8mm W x 68mm L x 4.76mm Thk
  • Clamp

14 86511843

  • 86511843 - BOLT
  • Hex Flng
  • M8 x 1.25 x 60mm
  • Cl 8.8

15 229197A1

  • 229197A1 - SQUARE NUT
  • M8 x 1.25
  • Cl 8

16 1546028C1

  • 1546028C1 - CLAMP
  • 25.4mm ID x 82mm L
  • Hydraulic Tube

17 D88429

  • D88429 - CAGE
  • Clamp

18 47926576

  • 47926576 - HOSE
  • 19mm ID x 600mm L
  • SAE100R19

19 47926577

  • 47926577 - HOSE
  • 19mm ID x 500mm L
  • SAE100R19
