(C227) - COMPACT TRACK LOADER (4/11-)
/

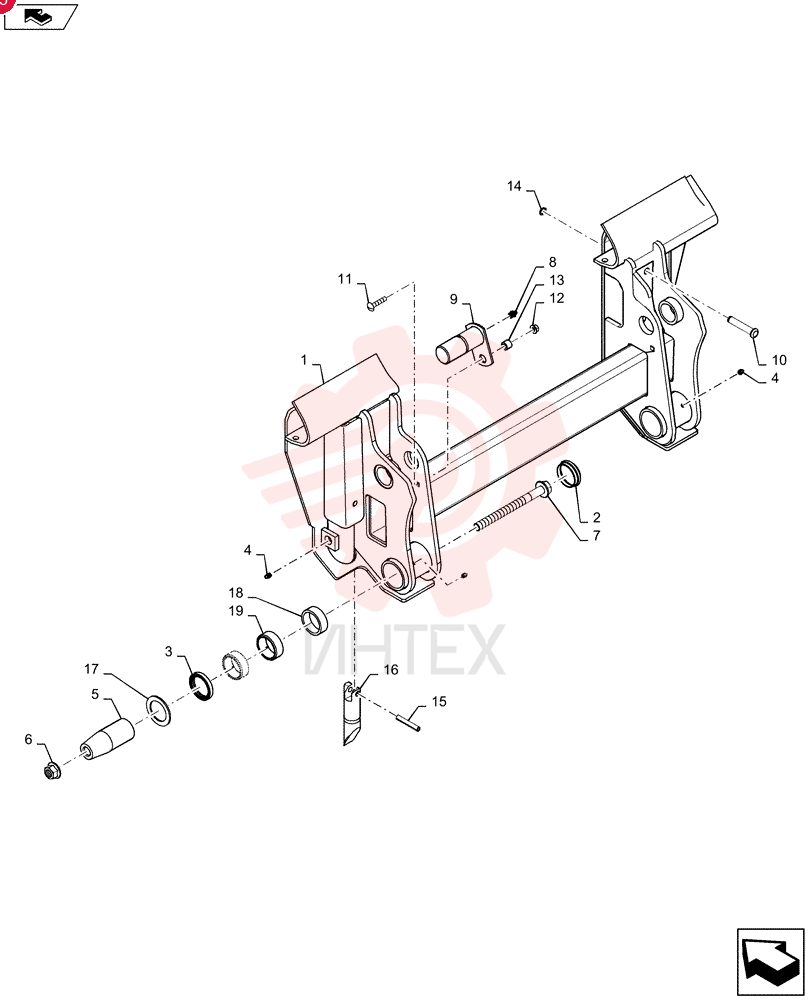

MOUNT 47435303

MOUNT 47435303

MOUNT 47435303

1 47435303

  • 47435303 - MOUNT
  • Frame

2 86561087

  • 86561087 - DUST CAP
  • Hub Cap

3 D95143

  • D95143 - WIPER SEAL
  • 44.42mm ID x 57.17mm OD x 7.92mm Thk
  • Wiper Rod 44.4mm

4 87414

  • 87414 - LUBE NIPPLE
  • 1/4" - 28

5 47396814

  • 47396814 - PIN
  • 44.45mm OD x 109.5mm L
  • Boom To Coupler

6 87016581

  • 87016581 - FLANGE NUT
  • M16 x 2
  • CI 10

7 87015924

  • 87015924 - BOLT
  • Hex
  • M16 x 180mm
  • Cl 10.9
  • Coupler
  • Tip Cylinder

8 80710

  • 80710 - LUBE NIPPLE
  • 1/8” – 27 Dryseal PTF

9 9614349

  • 9614349 - PIN
  • 38.15mm OD x 105mm L
  • Upper

10 87387540

  • 87387540 - PIN
  • 12.7mm OD x 67.55mm L
  • Pivot Handle

11 86512444

  • 86512444 - CARRIAGE BOLT
  • M8 x 1.25 x 40mm
  • Full Thd
  • Cl 8.8
  • Pin Handle Pivot

12 86619801

  • 86619801 - FLANGE NUT
  • M8 x 1.25
  • Cl 8

13 86589143

  • 86589143 - SPACER
  • 9.5mm ID x 15.9mm OD x 12.7mm L

14 87612753

  • 87612753 - RETAINER
  • #50
  • 0.46"
  • Ext

15 86624093

  • 86624093 - PIN
  • 9.53mm OD x 63.5mm L

16 87758365

  • 87758365 - PIN
  • 31.75mm OD x 142.3mm L
  • Latch

17 87613204

  • 87613204 - WASHER
  • 1.78" ID x 2.5" OD x 0.12" Thk

18 84239340

  • 84239340 - BUSHING
  • 44.41mm ID x 55mm OD x 22.23mm L

19 84356272

  • 84356272 - SPACER
  • 52mm ID x 60mm OD x 4mm L
