New Holland Construction
/
(C227) - COMPACT TRACK LOADER (4/11-)
/

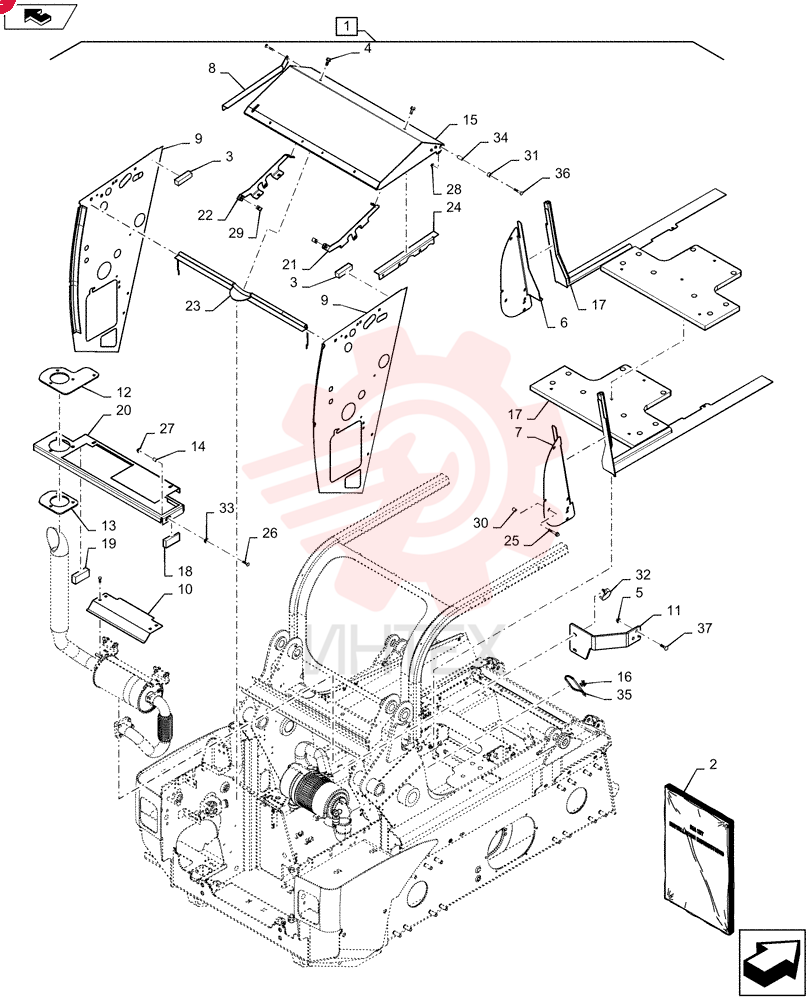

KIT 47415570

KIT 47415570

KIT 47415570

1 47415570

  • 47415570 - KIT
  • Debris Hard Parts With Seals
  • Incl 2 - 37

2 47459790

  • 47459790 - INSTRUCTION
  • Sheet

3 WIC291355

  • WIC291355 - PAD
  • 0.624' Foam

4 9804258

  • 9804258 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8

5 9804277

  • 9804277 - FLANGE NUT
  • Hex
  • M8 x 1.25
  • Cl 8

6 47359203

  • 47359203 - COVER
  • Chassis Heat

7 47359205

  • 47359205 - COVER
  • Chassis Vent
  • RH

8 47363956

  • 47363956 - ANGLE
  • Hood Stop
  • Angle
  • LH

9 47365894

  • 47365894 - SEAL
  • 1620mm

10 47367892

  • 47367892 - BRACKET
  • Heat Shield

11 47389924

  • 47389924 - BRACKET
  • Air Cleaner

12 47434237

  • 47434237 - BRACKET
  • Stiffner Rear Deck

13 47434973

  • 47434973 - BRACKET
  • Stiffner
  • Gray

14 47435764

  • 47435764 - SPACER
  • 6.3mm ID x 9.5mm OD x 13mm L

15 47440359

  • 47440359 - HOOD
  • Rad Tilt

16 84318895

  • 84318895 - SPACER
  • 17.97mm H
  • Swivel Tie Base

17 84338534

  • 84338534 - SEAL
  • Bulk 30.48 m
  • 2000mm

18 84600485

  • 84600485 - FOAM INSULATION
  • Insualtion Hood
  • RH

19 84600487

  • 84600487 - FOAM INSULATION
  • Insualtion Hood
  • LH

20 84600794

  • 84600794 - BRACKET
  • Rear Deck

21 84600798

  • 84600798 - REINFORCEMENT
  • Tilt
  • Reinforcement

22 84600800

  • 84600800 - REINFORCEMENT
  • Hood

23 84602176

  • 84602176 - SEAL
  • 1787mm
  • Bulb

24 84605091

  • 84605091 - SUPPORT
  • Hood Stop

25 86511840

  • 86511840 - BOLT
  • Hex Flng
  • M6 x 1 x 40mm
  • Cl 8.8

26 86512441

  • 86512441 - CARRIAGE BOLT
  • Rnd Head
  • M6 x 1 x 36.6mm
  • Cl 8.8

27 86619800

  • 86619800 - FLANGE NUT
  • M6 x 1
  • Cl 8

28 86619801

  • 86619801 - FLANGE NUT
  • M8 x 1.25
  • Cl 8

29 87016586

  • 87016586 - SPRING NUT
  • Multi-Thd
  • M8 x 1.25

30 87377305

  • 87377305 - SPACER
  • 6.8mm ID x 10.3mm OD x 13mm L
  • Spacer
  • 1/8" Pipe

31 87429698

  • 87429698 - SPACER
  • Hood

32 87573379

  • 87573379 - CLAMP
  • 57.1mm
  • Coat
  • 13.5mm Bolt Hole
  • P Type

33 87655041

  • 87655041 - SPECIAL WASHER
  • 6.85mm ID x 13.5mm OD x 2mm Thk

34 259905A1

  • 259905A1 - SPACER
  • 31.25" OAL

35 L18331

  • L18331 - CABLE TIE
  • 375.9mm L
  • Nylon
  • 15" OAL

36 120039

  • 120039 - CARRIAGE BOLT
  • M8 x 1.25 x 54.8mm
  • Cl 8.8

37 120038

  • 120038 - CARRIAGE BOLT
  • Rnd Head
  • M8 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd
