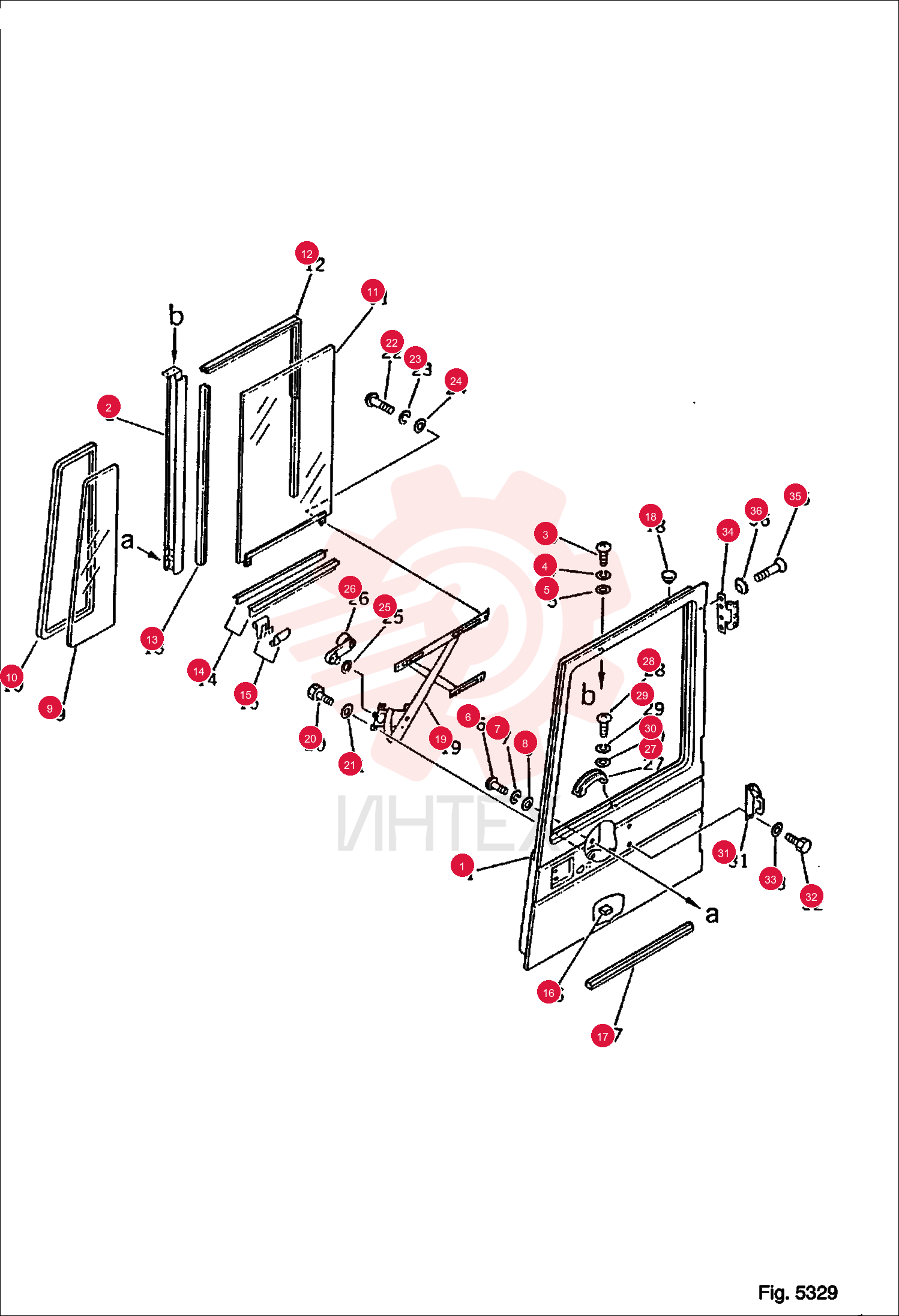

DOOR 6639295 (1)

DOOR 6639295 (1)

DOOR 6639295 (1)

1 6639295

  • 6639295 - DOOR

2 6639317

  • 6639317 - BAR

3 6637026

  • 6637026 - SCREW

4 6637125

  • 6637125 - WASHER

5 6637143

  • 6637143 - WASHER

6 6637038

  • 6637038 - SCREW

7 6637133

  • 6637133 - WASHER

8 6637145

  • 6637145 - WASHER

9 6639301

  • 6639301 - GLASS

10 6639311

  • 6639311 - STRIP
  • WE

11 6639340

  • 6639340 - GLASS ASSEMBLY

12 6639309

  • 6639309 - SEAL

13 6639339

  • 6639339 - SEAL

14 6639310

  • 6639310 - SEAL

15 6639366

  • 6639366 - CLIP

16 6639330

  • 6639330 - STOPPER

17 6639337

  • 6639337 - SHEET

18 6639312

  • 6639312 - CAP

19 6639314

  • 6639314 - REGULATOR

20 6636951

  • 6636951 - BOLT

21 6637155

  • 6637155 - WASHER

22 6637037

  • 6637037 - SCREW

23 6637133

  • 6637133 - WASHER

24 6637145

  • 6637145 - WASHER

25 6639910

  • 6639910 - ESCUTCHEO

26 6639331

  • 6639331 - HANDLE

27 6639338

  • 6639338 - HANDLE

28 6637038

  • 6637038 - SCREW

29 6637133

  • 6637133 - WASHER

30 6637145

  • 6637145 - WASHER

31 6639364

  • 6639364 - BRACKET

32 6636958

  • 6636958 - BOLT

33 6637156

  • 6637156 - WASHER

34 6639368

  • 6639368 - HINGE ASSEMBLY

35 6637045

  • 6637045 - SCREW

36 6639367

  • 6639367 - WASHER
