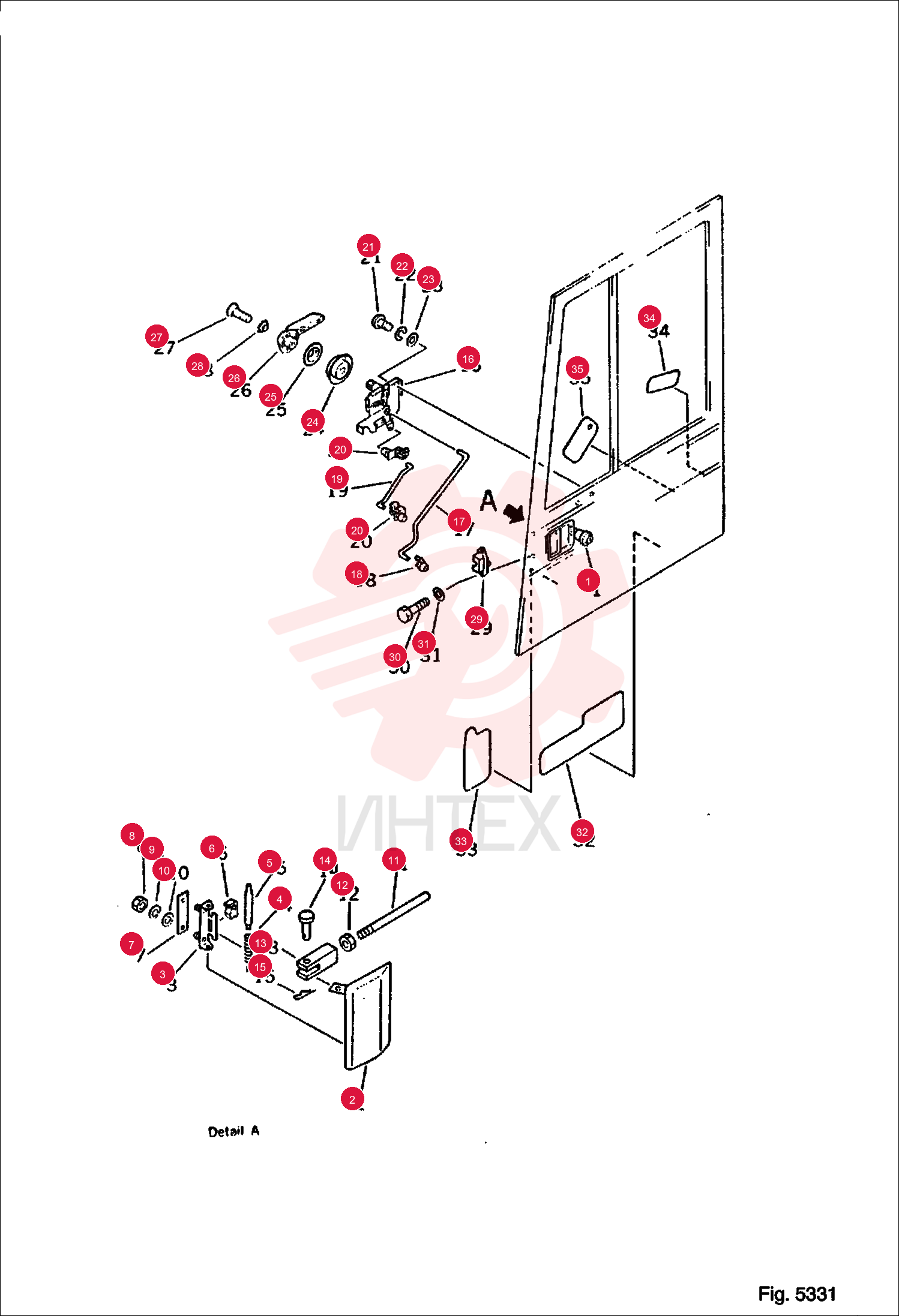

LOCK ASSEMBLY 6639316 (1)

LOCK ASSEMBLY 6639316 (1)

LOCK ASSEMBLY 6639316 (1)

1 6639316

  • 6639316 - LOCK ASSEMBLY

2 6639332

  • 6639332 - HANDLE ASSEMBLY

3 6639333

  • 6639333 - SPRING

4 6639334

  • 6639334 - PIN

5 6639335

  • 6639335 - CUSHION

6 6639336

  • 6639336 - PACKING

7 6637106

  • 6637106 - NUT

8 6637133

  • 6637133 - WASHER

9 6637145

  • 6637145 - WASHER

10 6639377

  • 6639377 - ROD

11 6637106

  • 6637106 - NUT

12 6637266

  • 6637266 - YOKE

13 6637252

  • 6637252 - PIN

14 6637211

  • 6637211 - PIN

15 6643091

  • 6643091 - CONTROLLER

16 6639324

  • 6639324 - CONTROL ASSEMBLY

17 6643088

  • 6643088 - ROD

18 6639328

  • 6639328 - RING
  • SNAP

19 6643092

  • 6643092 - ROD

20 6639327

  • 6639327 - RING
  • SNAP

21 6637038

  • 6637038 - SCREW

22 6637133

  • 6637133 - WASHER

23 6637145

  • 6637145 - WASHER

24 6639909

  • 6639909 - MOUNT

25 6639910

  • 6639910 - ESCUTCHEO

26 6639322

  • 6639322 - HANDLE

27 6637046

  • 6637046 - SCREW

28 6639329

  • 6639329 - WASHER

29 6639319

  • 6639319 - LOCK ASSEMBLY

30 6636953

  • 6636953 - BOLT

31 6637155

  • 6637155 - WASHER

32 6639349

  • 6639349 - SEAL

33 6639350

  • 6639350 - SEAL

34 6643090

  • 6643090 - SEAL

35 6639323

  • 6639323 - SEAL
