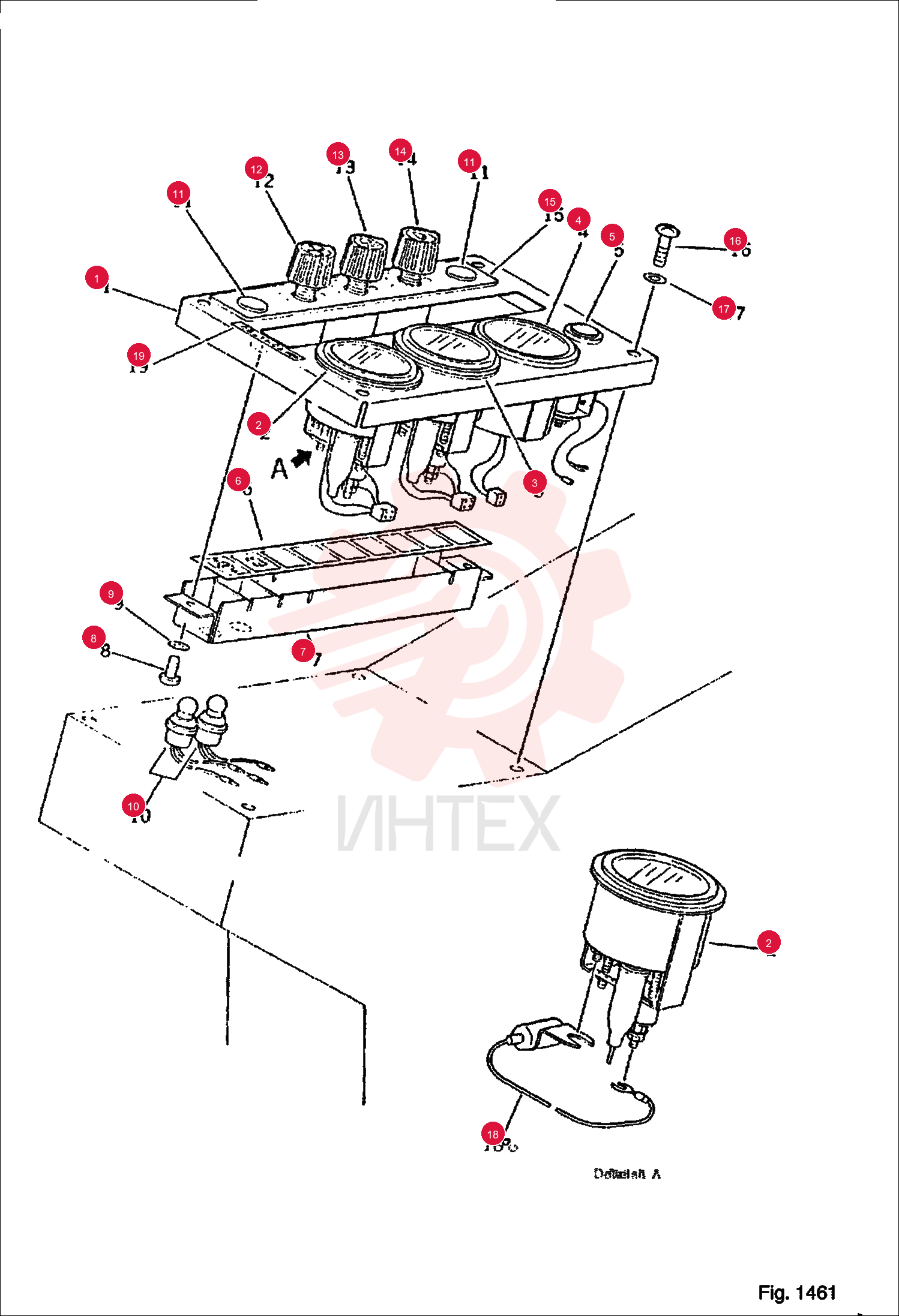

PANEL 6639275 (2)

PANEL 6639275 (2)

PANEL 6639275 (2)

1 6639275

  • 6639275 - PANEL

2 6637884

  • 6637884 - GAUGE

3 6639405

  • 6639405 - GAUGE

4 6637733

  • 6637733 - GAUGE
  • SE

5 6639938

  • 6639938 - HEATER SI

6 6639276

  • 6639276 - SHIELD

7 6639675

  • 6639675 - BRACKET

8 6637024

  • 6637024 - SCREW

9 6637143

  • 6637143 - WASHER

10 6639885

  • 6639885 - LAMP ASS'

11 6637754

  • 6637754 - CAP

12 6639264

  • 6639264 - SWITCH

13 6639265

  • 6639265 - SWITCH

14 6639266

  • 6639266 - SWITCH

15 6639250

  • 6639250 - SHIELD

16 6639277

  • 6639277 - SCREW

17 6639278

  • 6639278 - WASHER

18 6639253

  • 6639253 - CONDENSER

19 6639251

  • 6639251 - MARK
