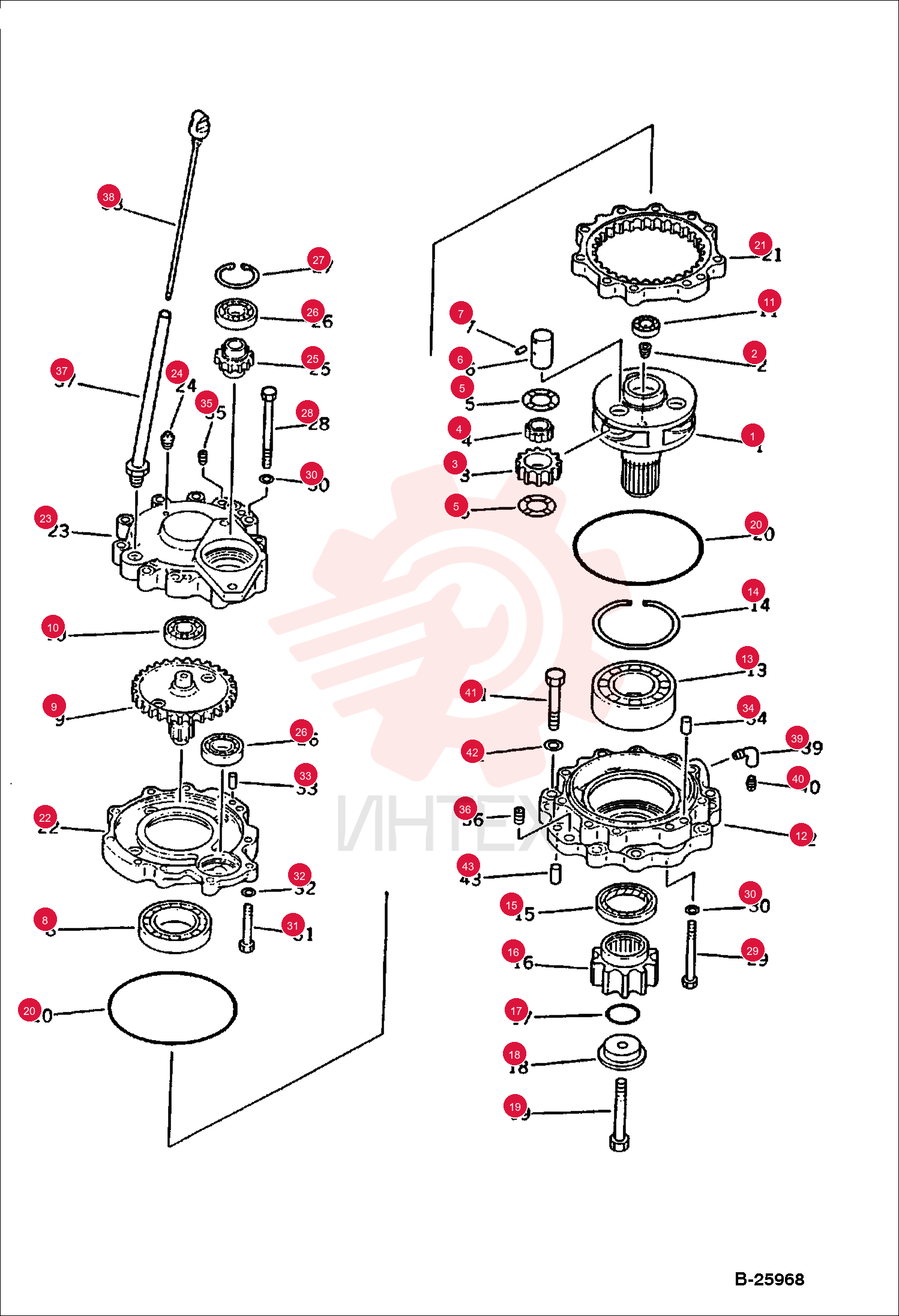

CARRIER 6639687

CARRIER 6639687

CARRIER 6639687

1 6639687

  • 6639687 - CARRIER

2 6643033

  • 6643033 - MACHINERY

3 6637447

  • 6637447 - PLUG

4 6639688

  • 6639688 - GEAR

5 6639690

  • 6639690 - HOSE

6 6639691

  • 6639691 - WASHER

7 6639689

  • 6639689 - SHAFT

8 6637190

  • 6637190 - PIN
  • ROLL

9 6637328

  • 6637328 - BEARING

10 6639032

  • 6639032 - GEAR

11 6637327

  • 6637327 - BEARING

12 6645554

  • 6645554 - BEARING

13 6639682

  • 6639682 - CAGE

14 6637324

  • 6637324 - BEARING

15 6637239

  • 6637239 - RING
  • SNAP

16 6637428

  • 6637428 - SEAL
  • OIL

17 6639695

  • 6639695 - GEAR

18 6637363

  • 6637363 - O-RING

19 6639692

  • 6639692 - RETAINER

20 6637009

  • 6637009 - BOLT

21 6639686

  • 6639686 - O-RING

22 6639685

  • 6639685 - GEAR

23 6639683

  • 6639683 - HOUSING

24 6639684

  • 6639684 - COVER

25 6637442

  • 6637442 - PLUG

26 6639031

  • 6639031 - GEAR

27 6637325

  • 6637325 - BEARING

28 6637233

  • 6637233 - RING
  • SNAP

29 6637008

  • 6637008 - BOLT

30 6637006

  • 6637006 - BOLT

31 6637158

  • 6637158 - WASHER

32 6636985

  • 6636985 - BOLT

33 6637158

  • 6637158 - WASHER

34 6637176

  • 6637176 - PIN
  • DOWEL

35 6637178

  • 6637178 - PIN
  • DOWEL

36 6637465

  • 6637465 - PLUG

37 6637467

  • 6637467 - PLUG

38 6639693

  • 6639693 - INLET

39 6639694

  • 6639694 - GAUGE

40 6637645

  • 6637645 - ELBOW

41 6637443

  • 6637443 - PLUG

42 6636999

  • 6636999 - BOLT

43 6637160

  • 6637160 - WASHER

44 6637179

  • 6637179 - PIN
  • DOWE
