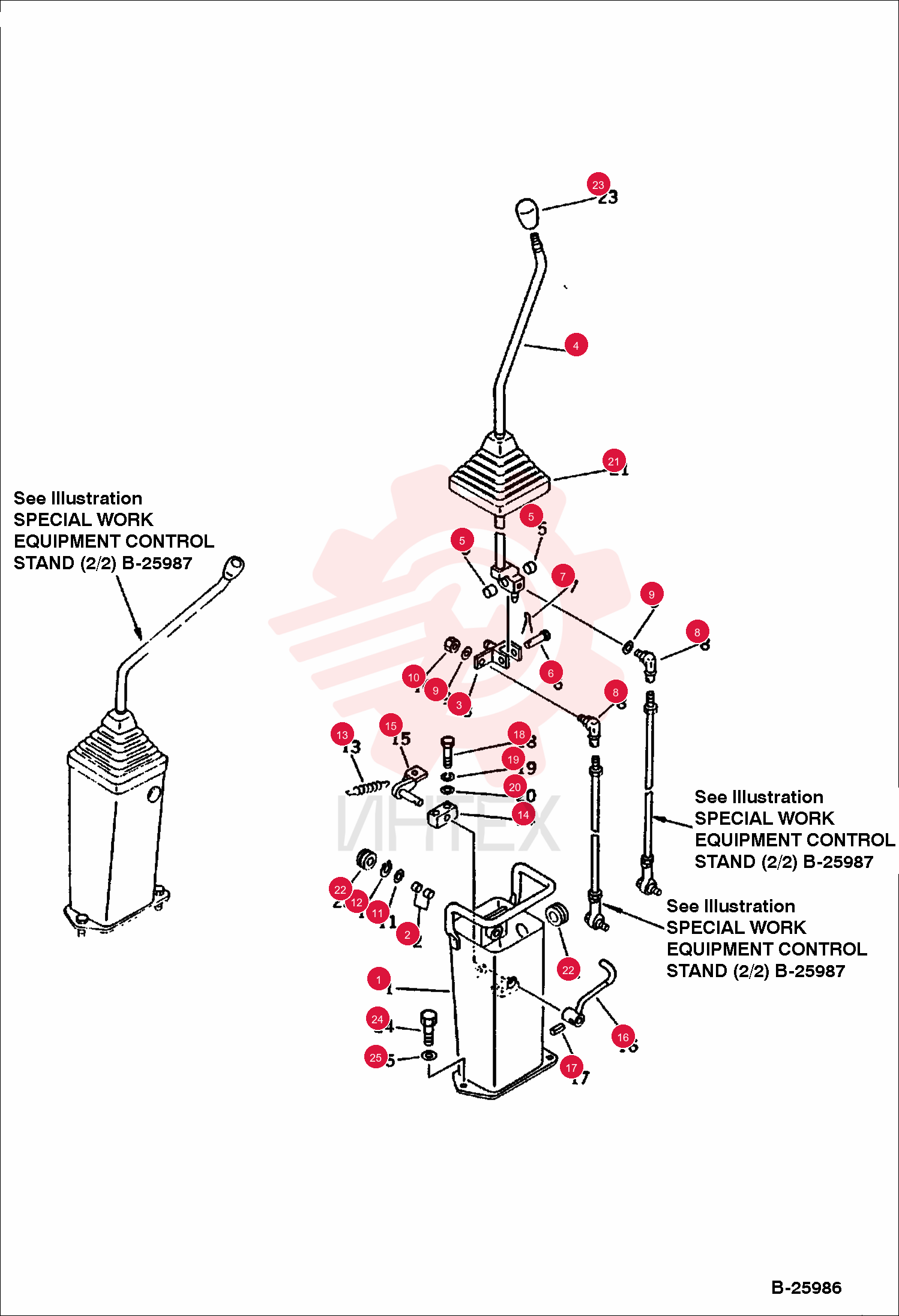

STAND 6639731

STAND 6639731

STAND 6639731

1 6639731

  • 6639731 - STAND

2 6639170

  • 6639170 - BUSHING

3 6639280

  • 6639280 - YOKE

4 6639177

  • 6639177 - LEVER

5 6639170

  • 6639170 - BUSHING

6 6637245

  • 6637245 - PIN

7 6637203

  • 6637203 - PIN
  • COTT

8 6639406

  • 6639406 - CONNECTOR

9 6637157

  • 6637157 - WASHER

10 6637113

  • 6637113 - NUT

11 6637148

  • 6637148 - WASHER

12 6637217

  • 6637217 - SNAP RING

13 6639169

  • 6639169 - SPRING

14 6639283

  • 6639283 - BLOCK

15 6639282

  • 6639282 - LEVER

16 6639284

  • 6639284 - LEVER

17 6637188

  • 6637188 - PIN
  • ROLL

18 6636962

  • 6636962 - BOLT

19 6637134

  • 6637134 - WASHER

20 6637156

  • 6637156 - WASHER

21 6639733

  • 6639733 - BOOT

22 6637758

  • 6637758 - CAP

23 6637900

  • 6637900 - KNOB

24 6636980

  • 6636980 - BOLT

25 6637158

  • 6637158 - WASHER
