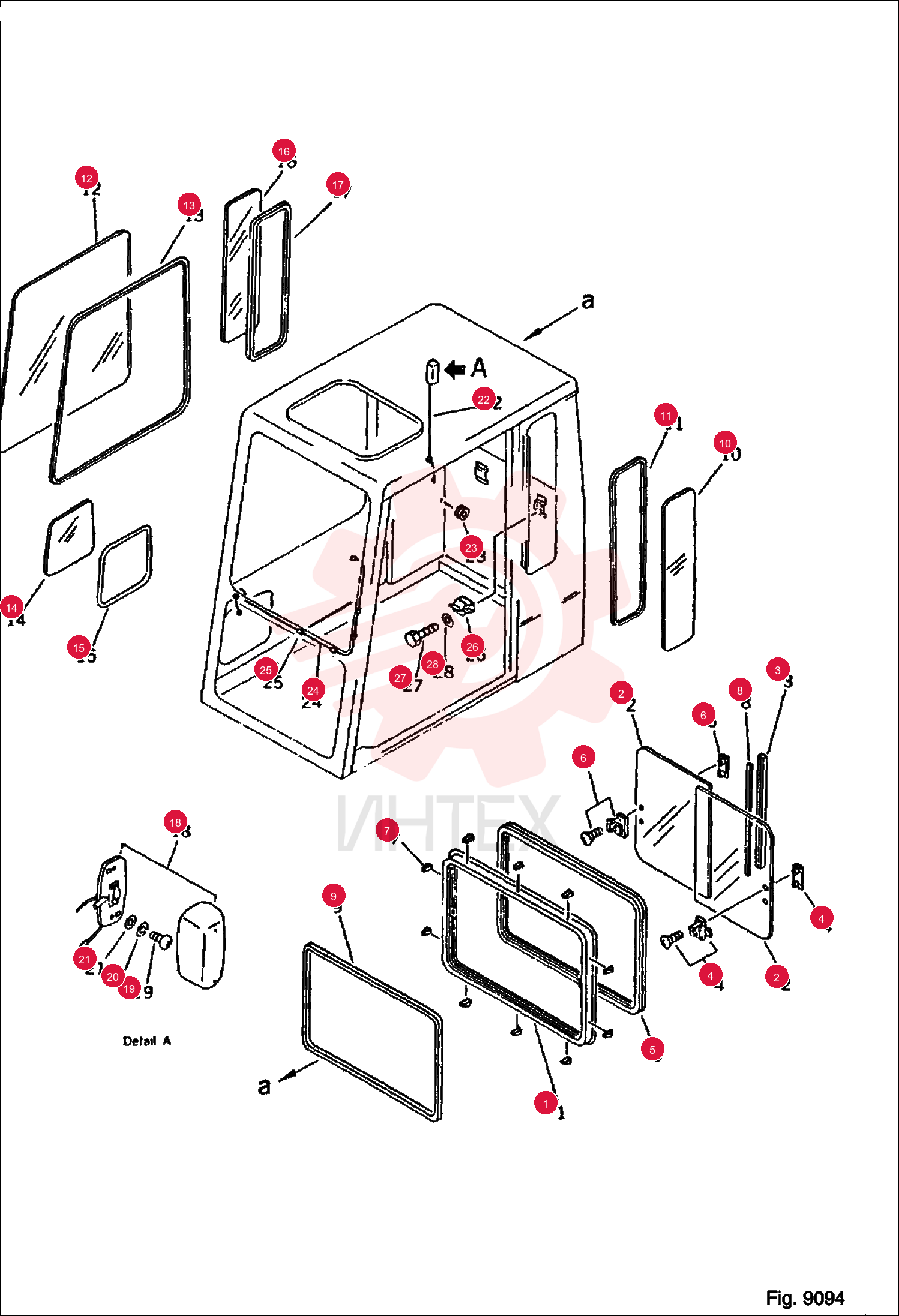

WINDOW 6639376

WINDOW 6639376

WINDOW 6639376

1 6639376

  • 6639376 - WINDOW

2 6639318

  • 6639318 - PAD

3 6639300

  • 6639300 - GLASS

4 6639305

  • 6639305 - STRIP
  • WE

5 6639299

  • 6639299 - GLASS

6 6639306

  • 6639306 - STRIP
  • WE

7 6639363

  • 6639363 - GLASS

8 6639362

  • 6639362 - STRIP
  • WE

9 6639380

  • 6639380 - GLASS

10 6639381

  • 6639381 - STRIP
  • WE

11 6637725

  • 6637725 - LAMP

12 6642129

  • 6642129 - BULB

13 6637027

  • 6637027 - SCREW

14 6637125

  • 6637125 - WASHER

15 6637143

  • 6637143 - WASHER

16 6639271

  • 6639271 - WIRE

17 6637700

  • 6637700 - GROMMET

18 6639270

  • 6639270 - WIRE

19 6639365

  • 6639365 - CLIP

20 6639886

  • 6639886 - CLAMP

21 6636965

  • 6636965 - BOLT

22 6637157

  • 6637157 - WASHER
