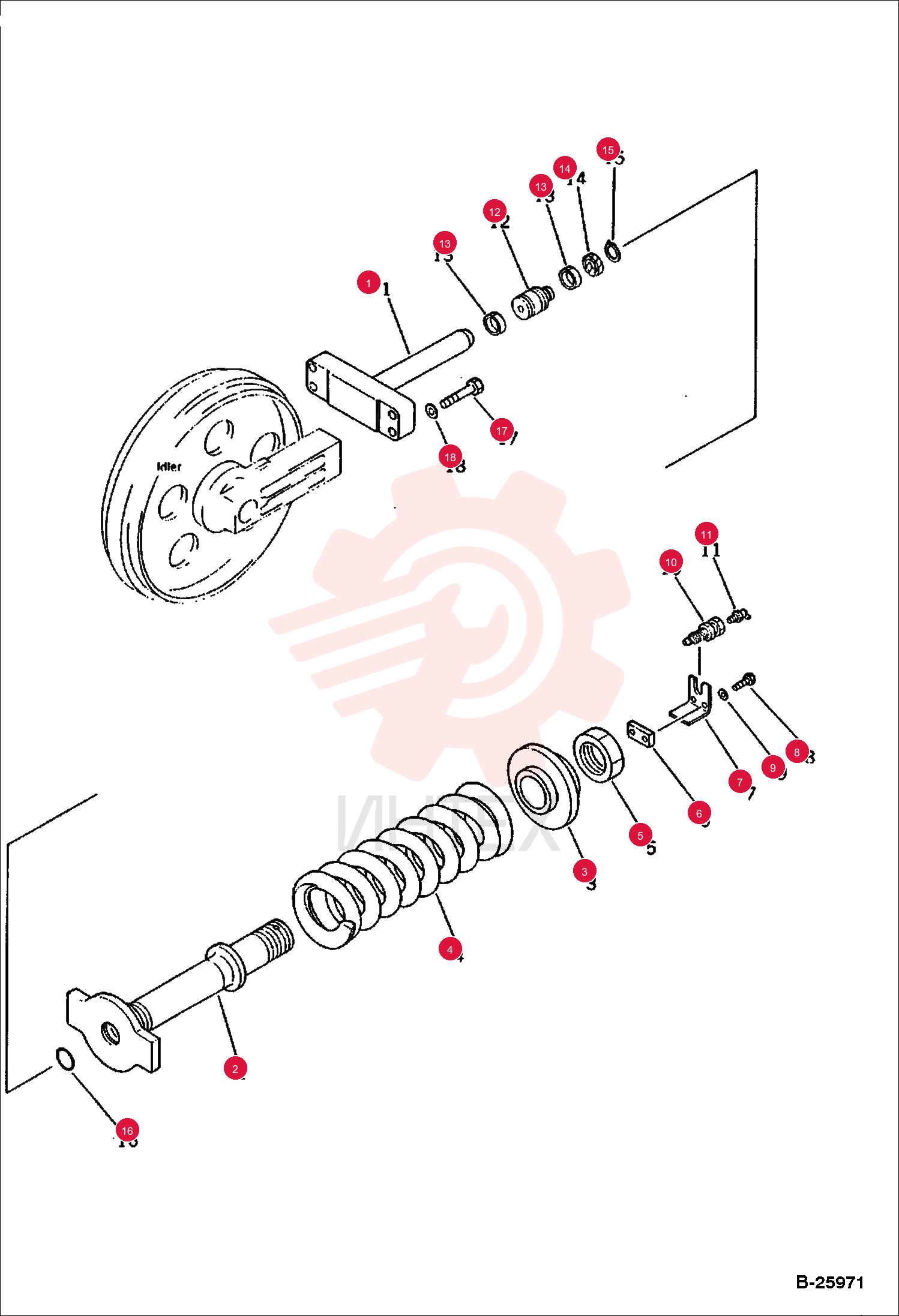

YOKE 6639044

YOKE 6639044

YOKE 6639044

1 6639044

  • 6639044 - YOKE

2 6639046

  • 6639046 - CYLINDER

3 6639698

  • 6639698 - PILOT

4 6639045

  • 6639045 - SPRING

5 6639697

  • 6639697 - NUT

6 6639048

  • 6639048 - SEAT

7 6639047

  • 6639047 - LOCK

8 6636960

  • 6636960 - BOLT

9 6637156

  • 6637156 - WASHER

10 6639049

  • 6639049 - LUBRICATR

11 6637432

  • 6637432 - FITTING

12 6637431

  • 6637431 - FITTING

13 6637839

  • 6637839 - PISTON

14 6637542

  • 6637542 - RING
  • WEA

15 6637752

  • 6637752 - PACKING

16 6637221

  • 6637221 - RING
  • SNAP

17 6637359

  • 6637359 - O-RING

18 6636995

  • 6636995 - BOLT

19 6637159

  • 6637159 - WASHER
