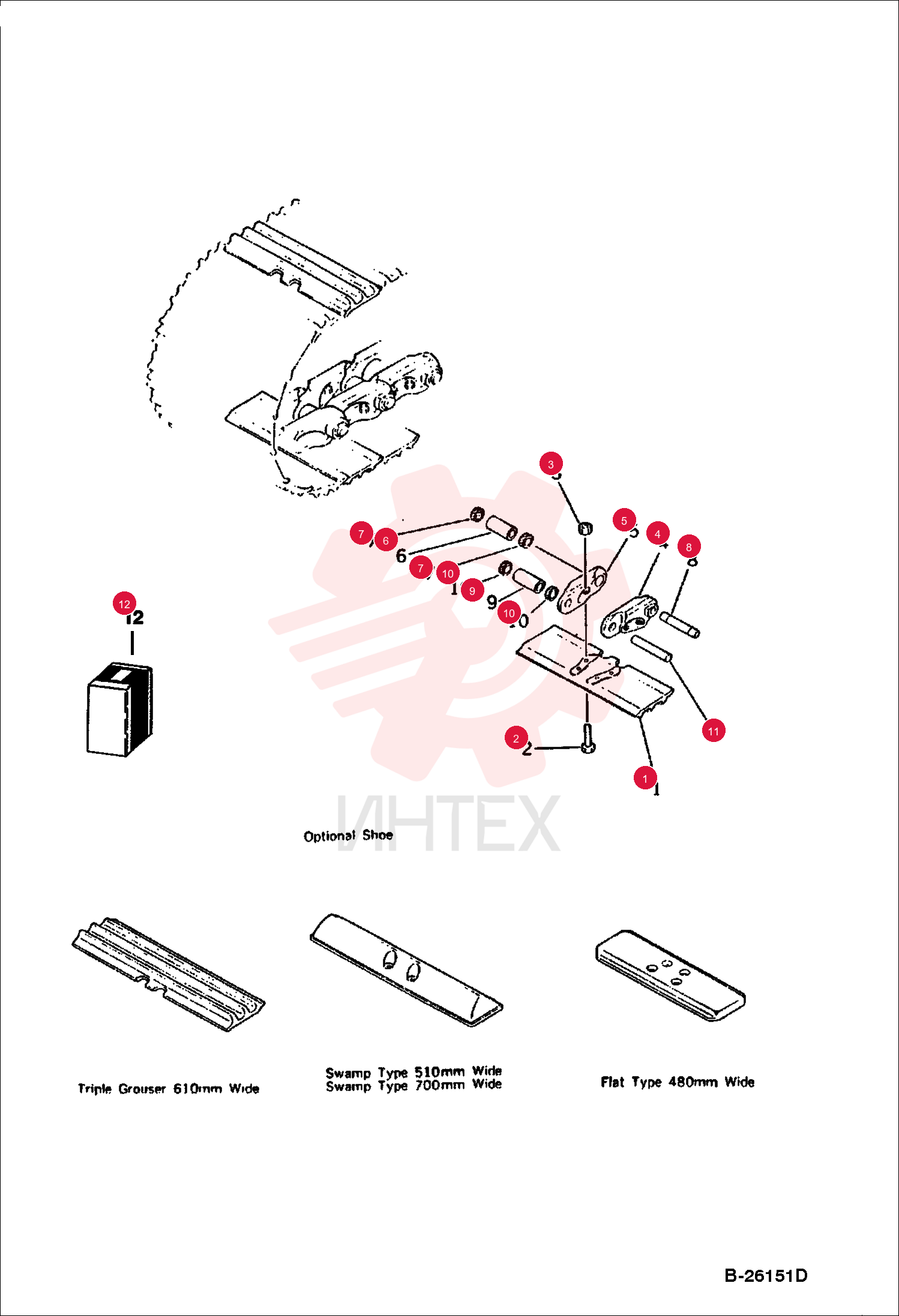

SHOE 6637823 (1)

SHOE 6637823 (1)

SHOE 6637823 (1)

1 6637823

  • 6637823 - SHOE

2 6639060

  • 6639060 - SHOE ASSEMBLY

3 6637826

  • 6637826 - BOLT
  • SHO

4 6637166

  • 6637166 - NUT

5 6637827

  • 6637827 - LINK

6 6639056

  • 6639056 - LINK ASSEMBLY

7 6637828

  • 6637828 - LINK

8 6637835

  • 6637835 - BUSHING

9 6637829

  • 6637829 - BUSHING

10 6637834

  • 6637834 - BUSHING

11 6637831

  • 6637831 - SEAL
  • DUST

12 6639133

  • 6639133 - PIN

13 6639132

  • 6639132 - PIN

14 6639064

  • 6639064 - PIN

15 6637837

  • 6637837 - BUSHING

16 6637836

  • 6637836 - BUSHING

17 6637830

  • 6637830 - BUSHING

18 6637832

  • 6637832 - SEAL
  • DUST

19 6639135

  • 6639135 - PIN
  • MAST

20 6639134

  • 6639134 - PIN
  • MAST

21 6639065

  • 6639065 - PIN

22 6637166

  • 6637166 - NUT

23 6637826

  • 6637826 - BOLT
  • SHO

24 6637824

  • 6637824 - KIT
  • SHOE
