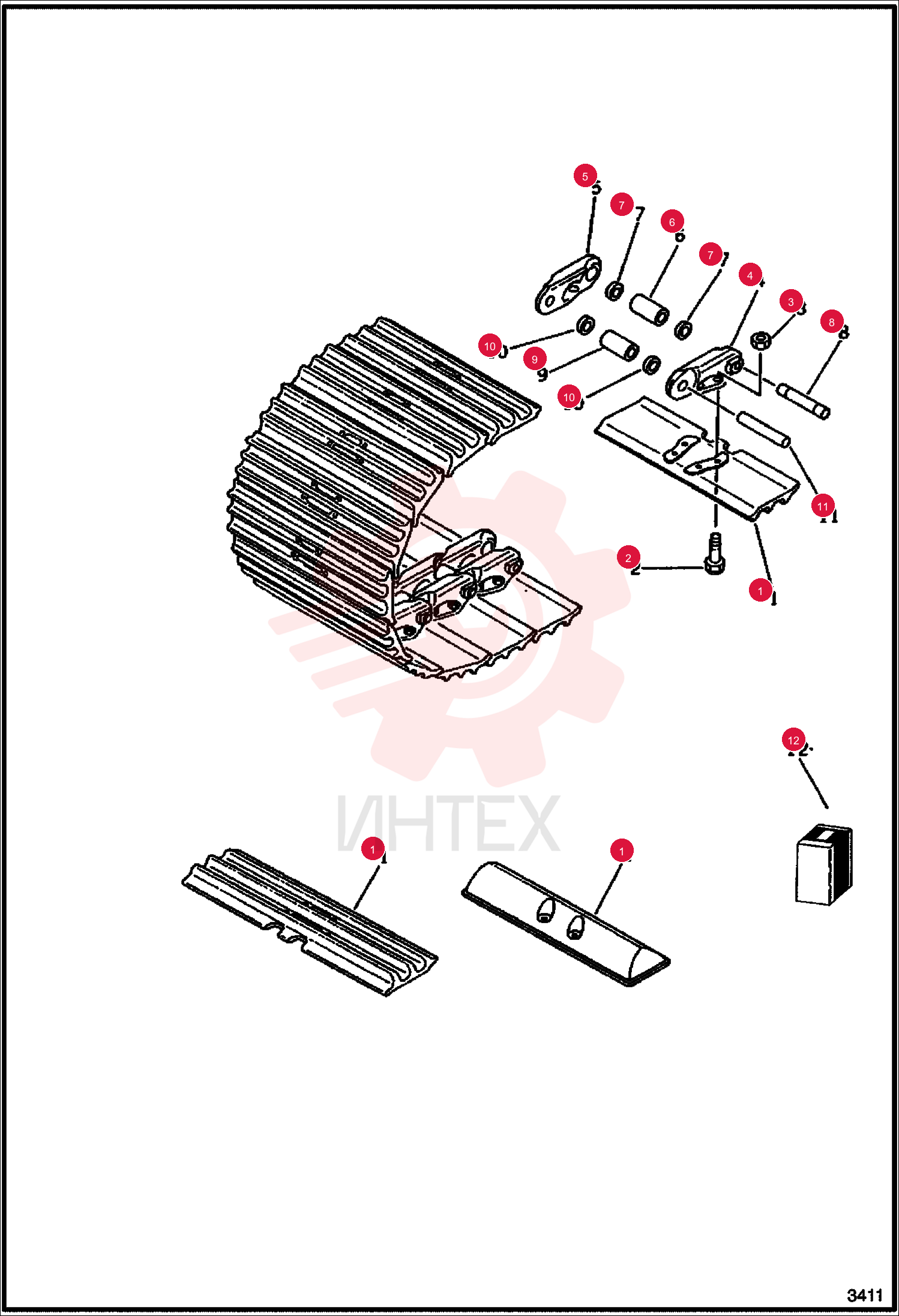

SHOE 6639067 (2)

SHOE 6639067 (2)

SHOE 6639067 (2)

1 6639067

  • 6639067 - SHOE

2 6639066

  • 6639066 - SHO BOLT

3 6637166

  • 6637166 - NUT

4 6637827

  • 6637827 - LINK

5 6637828

  • 6637828 - LINK

6 6637835

  • 6637835 - BUSHING

7 6637834

  • 6637834 - BUSHING

8 6637829

  • 6637829 - BUSHING

9 6637831

  • 6637831 - SEAL
  • DUST

10 6639133

  • 6639133 - PIN

11 6639132

  • 6639132 - PIN

12 6639064

  • 6639064 - PIN

13 6637837

  • 6637837 - BUSHING

14 6637836

  • 6637836 - BUSHING

15 6637830

  • 6637830 - BUSHING

16 6637832

  • 6637832 - SEAL
  • DUST

17 6639135

  • 6639135 - PIN
  • MAST

18 6639134

  • 6639134 - PIN
  • MAST

19 6639065

  • 6639065 - PIN

20 6637166

  • 6637166 - NUT

21 6639066

  • 6639066 - SHO BOLT

22 6639062

  • 6639062 - KIT
  • SHOE
