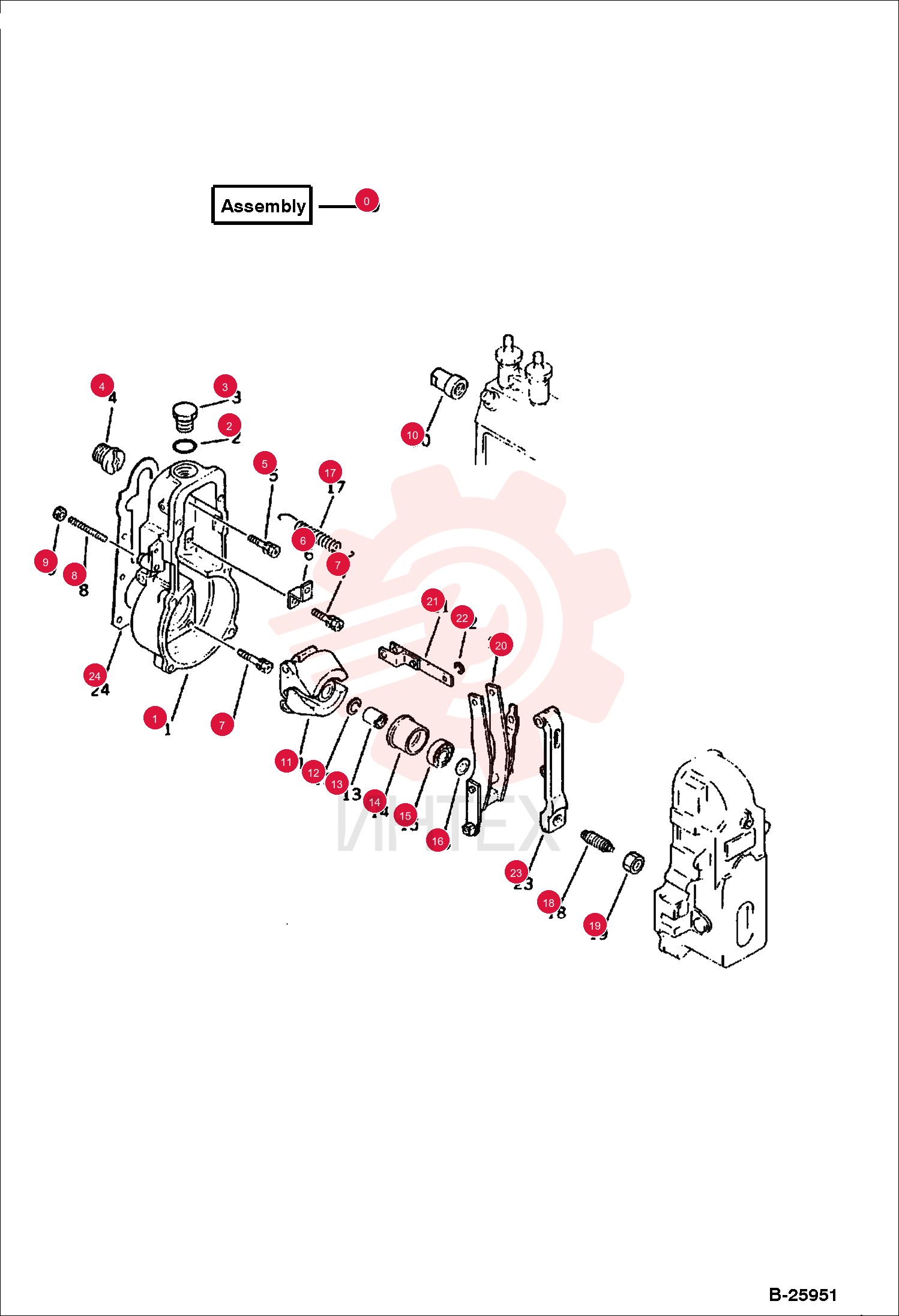

PUMP 6640168 (3)

PUMP 6640168 (3)

PUMP 6640168 (3)

1 6640168

  • 6640168 - PUMP

2 6646143

  • 6646143 - GOV. ASSY

3 6641523

  • 6641523 - HOUSING

4 6641465

  • 6641465 - O-RING

5 6641525

  • 6641525 - ADAPTER

6 6641524

  • 6641524 - PLUG

7 6641441

  • 6641441 - BOLT

8 6641550

  • 6641550 - SPRING

9 6641439

  • 6641439 - BOLT

10 6641526

  • 6641526 - BOLT

11 6641528

  • 6641528 - NUT

12 6641554

  • 6641554 - CAP

13 6641534

  • 6641534 - WEIGHT

14 6641456

  • 6641456 - WASHER

15 6641454

  • 6641454 - NUT

16 6641535

  • 6641535 - SLEEVE

17 6641470

  • 6641470 - BEARING

18 6641537

  • 6641537 - SPRING

19 6641453

  • 6641453 - NUT

20 6641543

  • 6641543 - LEVER

21 6641546

  • 6641546 - LINK

22 6641437

  • 6641437 - RING

23 6641547

  • 6641547 - LEVER

24 6641551

  • 6641551 - GASKET
