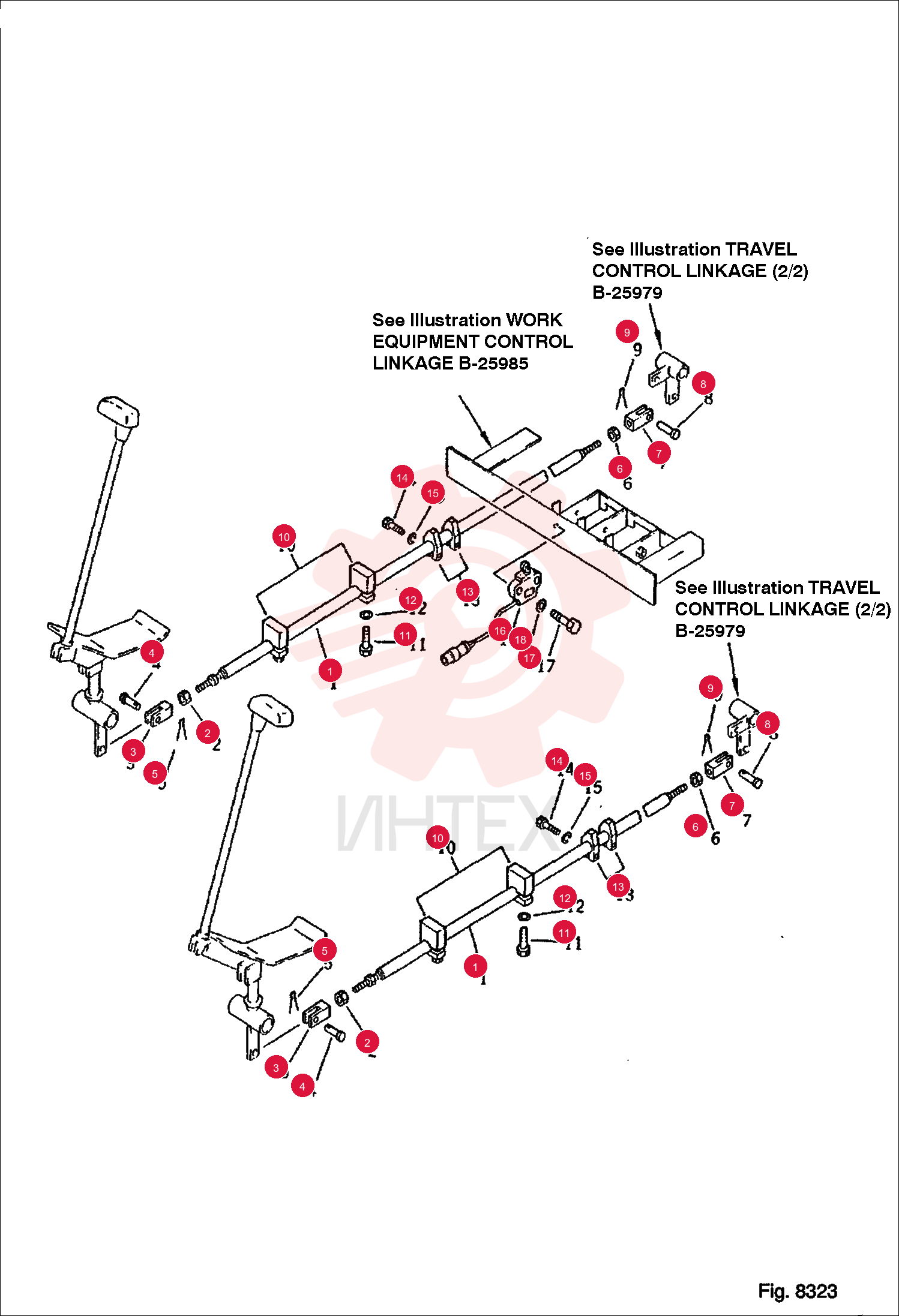

ROD 6646026

ROD 6646026

ROD 6646026

1 6646026

  • 6646026 - ROD

2 6637113

  • 6637113 - NUT

3 6637264

  • 6637264 - YOKE

4 6637258

  • 6637258 - PIN

5 6637199

  • 6637199 - PIN
  • COTTER

6 6637100

  • 6637100 - NUT

7 6637271

  • 6637271 - YOKE

8 6637258

  • 6637258 - PIN

9 6637199

  • 6637199 - PIN
  • COTTER

10 6639188

  • 6639188 - SHIELD

11 6636968

  • 6636968 - BOLT

12 6637157

  • 6637157 - WASHER

13 6639723

  • 6639723 - SHIELD

14 6636960

  • 6636960 - BOLT

15 6637134

  • 6637134 - WASHER

16 6643112

  • 6643112 - SWITCH

17 6636969

  • 6636969 - BOLT

18 6637157

  • 6637157 - WASHER
