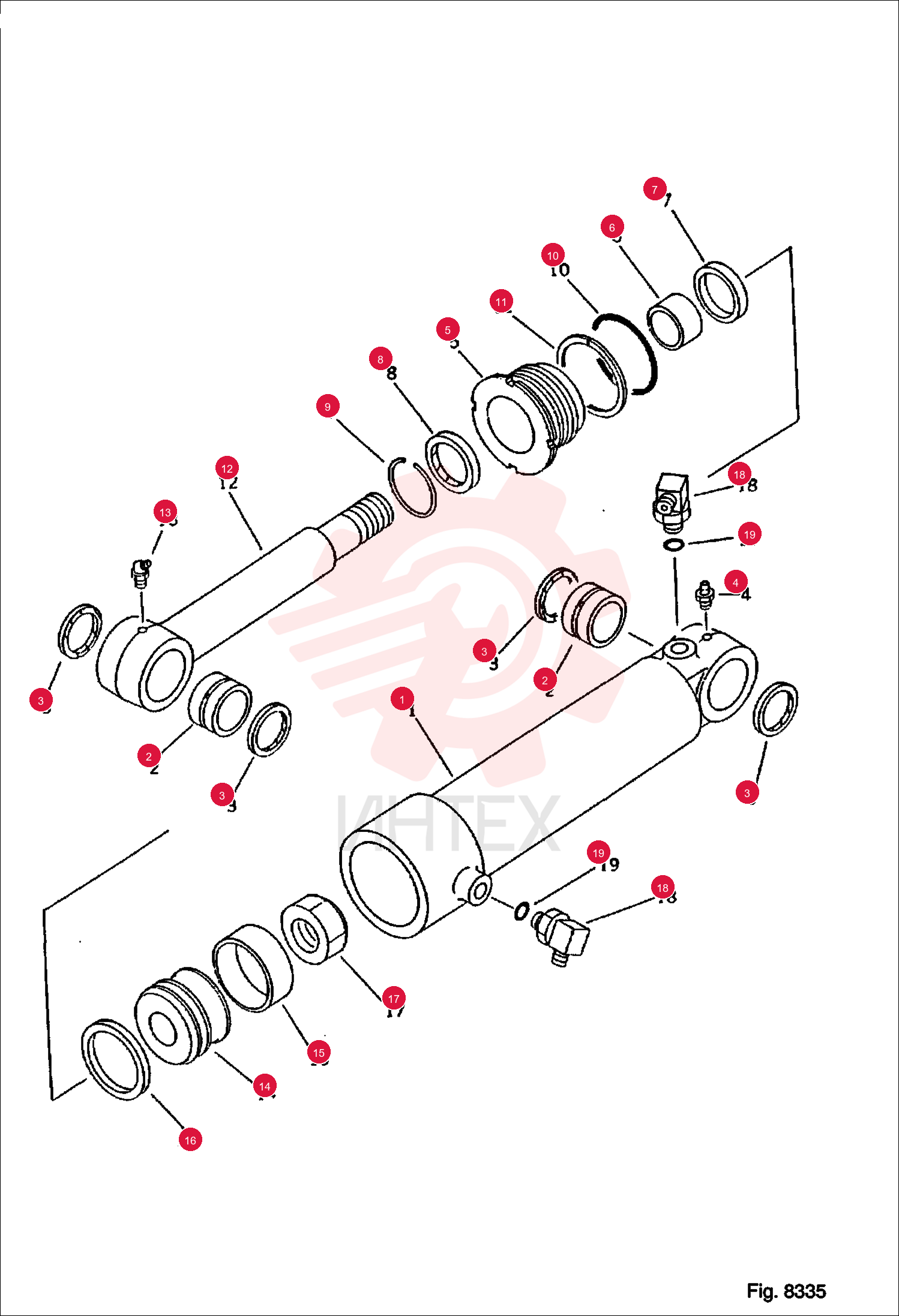

CYLINDER 6645904

CYLINDER 6645904

CYLINDER 6645904

1 6645904

  • 6645904 - CYLINDER

2 6645903

  • 6645903 - CYL. L.H.

3 6645581

  • 6645581 - CYLINDER

4 6645580

  • 6645580 - CYLINDER

5 6637530

  • 6637530 - BUSHING

6 6637536

  • 6637536 - SEAL
  • DUST

7 6637430

  • 6637430 - FITTING

8 6646061

  • 6646061 - HEAD CYL

9 6637567

  • 6637567 - BUSHING

10 6640436

  • 6640436 - PACKING

11 6637871

  • 6637871 - SEAL
  • DUS

12 6637575

  • 6637575 - RING
  • SNA

13 6645880

  • 6645880 - O-RING

14 6645898

  • 6645898 - RING

15 6645902

  • 6645902 - PIST ROD

16 6637431

  • 6637431 - FITTING

17 6646062

  • 6646062 - PISTON

18 6637547

  • 6637547 - RING
  • WEA

19 6640423

  • 6640423 - RING
  • PIS

20 6637560

  • 6637560 - NUT

21 6642856

  • 6642856 - ELBOW

22 6637418

  • 6637418 - O-RING
