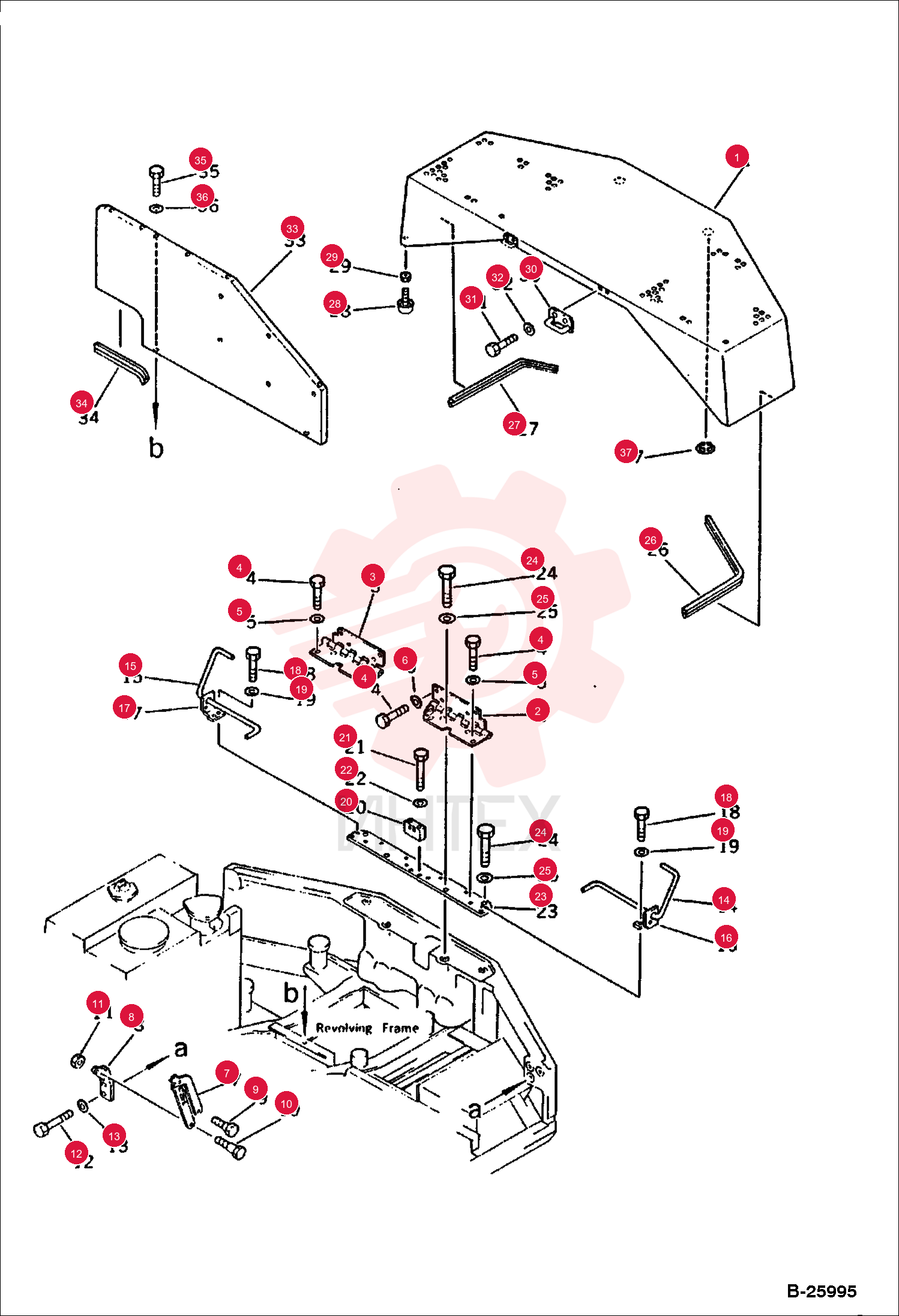

HOOD ASSEMBLY 6642988

HOOD ASSEMBLY 6642988

HOOD ASSEMBLY 6642988

1 6642988

  • 6642988 - HOOD ASSEMBLY

2 6639749

  • 6639749 - SHIELD

3 6639761

  • 6639761 - HINGE

4 6639762

  • 6639762 - HINGE

5 6636967

  • 6636967 - BOLT

6 6637874

  • 6637874 - WASHER

7 6637157

  • 6637157 - WASHER

8 6639757

  • 6639757 - STAY

9 6645711

  • 6645711 - BRACKET

10 6638573

  • 6638573 - BOLT

11 6638572

  • 6638572 - BOLT

12 6637108

  • 6637108 - NUT

13 6636968

  • 6636968 - BOLT

14 6637157

  • 6637157 - WASHER

15 6639751

  • 6639751 - BAR
  • TORS

16 6639752

  • 6639752 - BAR
  • TORS

17 6639753

  • 6639753 - BRACKET

18 6639754

  • 6639754 - BRACKET

19 6636967

  • 6636967 - BOLT

20 6637157

  • 6637157 - WASHER

21 6639755

  • 6639755 - RETAINER

22 6636975

  • 6636975 - BOLT

23 6637157

  • 6637157 - WASHER

24 6639750

  • 6639750 - BRACKET

25 6636982

  • 6636982 - BOLT

26 6637158

  • 6637158 - WASHER

27 6639758

  • 6639758 - PAD
  • TRIM

28 6639760

  • 6639760 - PAD
  • TRIM

29 6639076

  • 6639076 - CUSHION

30 6637105

  • 6637105 - NUT

31 6639881

  • 6639881 - BRACKET

32 6636967

  • 6636967 - BOLT

33 6637157

  • 6637157 - WASHER

34 6639766

  • 6639766 - COVER

35 6639769

  • 6639769 - PAD
  • TRIM

36 6636966

  • 6636966 - BOLT

37 6637157

  • 6637157 - WASHER

38 6637753

  • 6637753 - CAP
