Bobcat
/
130
/

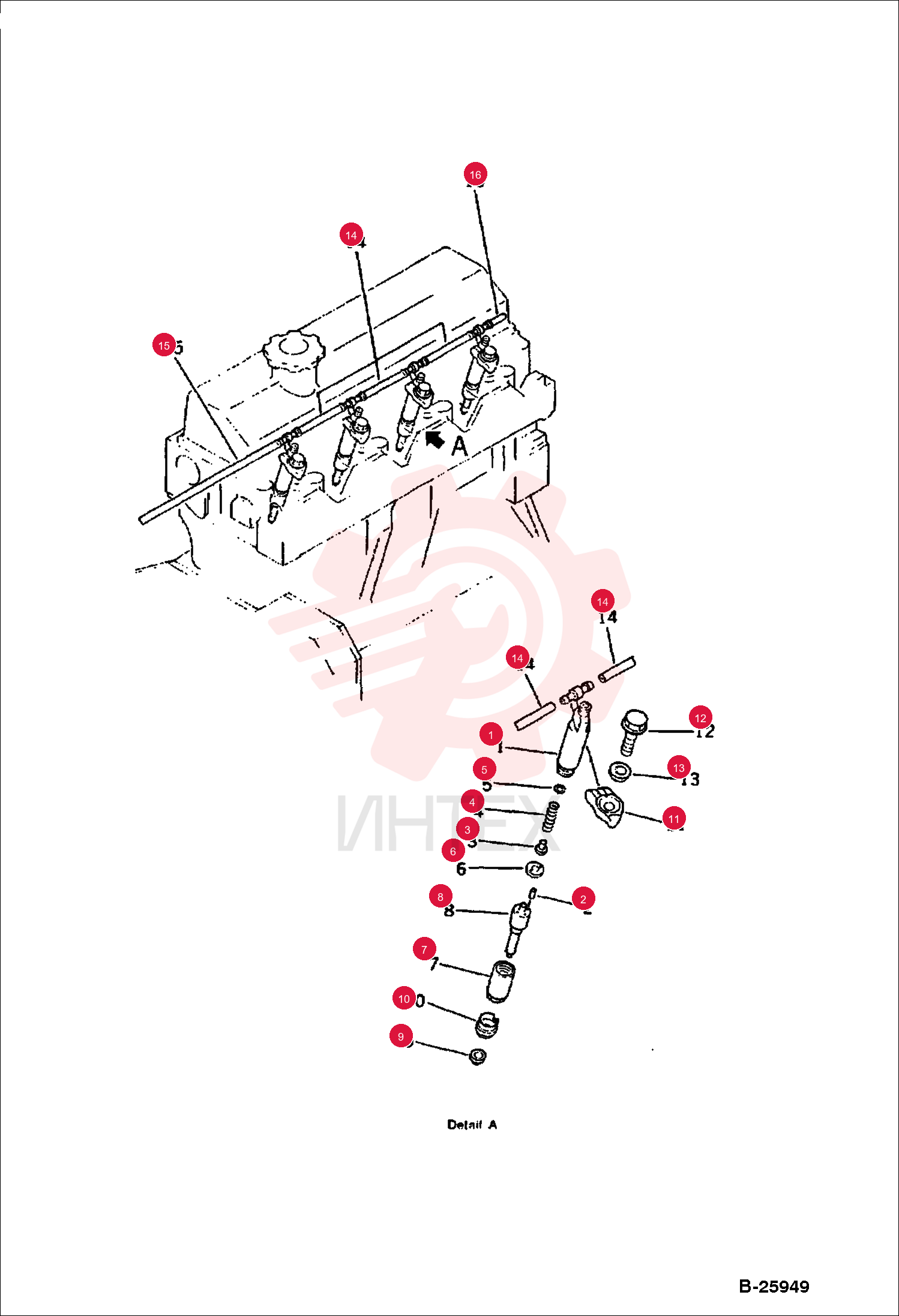

RETAINER 6640211

RETAINER 6640211

RETAINER 6640211

1 6640211

  • 6640211 - RETAINER

2 6640210

  • 6640210 - RETAINER

3 6641502

  • 6641502 - PIN

4 6641503

  • 6641503 - SEAT

5 6641505

  • 6641505 - SPRING

6 6646144

  • 6646144 - SHIM

7 6641504

  • 6641504 - SPACER

8 6641506

  • 6641506 - NUT

9 6640212

  • 6640212 - NOZZLE

10 6640042

  • 6640042 - GASKET

11 6640041

  • 6640041 - SEAL

12 6640039

  • 6640039 - RETAINER

13 6637071

  • 6637071 - BOLT

14 6640040

  • 6640040 - WASHER

15 6637612

  • 6637612 - HOSE

16 6645892

  • 6645892 - TUBE
  • SPILL

17 6640179

  • 6640179 - CAP
