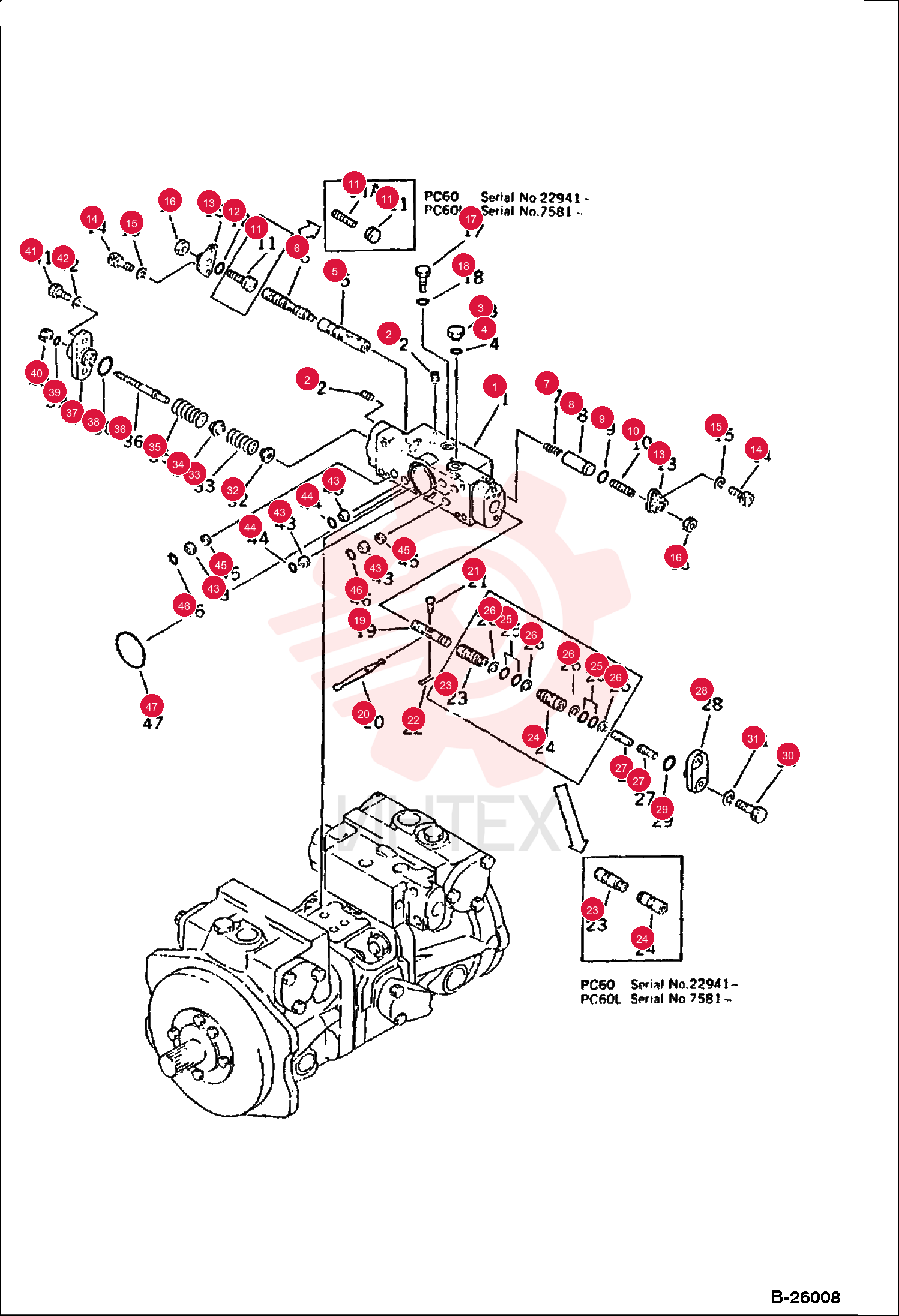

PUMP ASSEMBLY 6646440 (6)

PUMP ASSEMBLY 6646440 (6)

PUMP ASSEMBLY 6646440 (6)

1 6646440

  • 6646440 - PUMP ASSEMBLY

2 6646441

  • 6646441 - VALVE ASY

3 6646103

  • 6646103 - BODY

4 6640496

  • 6640496 - SLEEVE

5 6640500

  • 6640500 - SPOOL

6 6640501

  • 6640501 - SPRING

7 6640503

  • 6640503 - SPACER

8 6637336

  • 6637336 - O-RING

9 6640504

  • 6640504 - SCREW

10 6640497

  • 6640497 - PLUG

11 6640504

  • 6640504 - SCREW

12 6637336

  • 6637336 - O-RING

13 6640498

  • 6640498 - COVER

14 6640502

  • 6640502 - BOLT

15 6637133

  • 6637133 - WASHER

16 6642032

  • 6642032 - NUT

17 6640499

  • 6640499 - PLUG

18 6637406

  • 6637406 - O-RING

19 6646104

  • 6646104 - PISTON

20 6646110

  • 6646110 - ARM

21 6637244

  • 6637244 - PIN

22 6637192

  • 6637192 - PIN
  • COTT

23 6637371

  • 6637371 - O-RING

24 6637337

  • 6637337 - O-RING

25 6636959

  • 6636959 - BOLT

26 6637128

  • 6637128 - WASHER

27 6637341

  • 6637341 - O-RING

28 6637406

  • 6637406 - O-RING

29 6636958

  • 6636958 - BOLT

30 6637128

  • 6637128 - WASHER

31 6640600

  • 6640600 - FILTER

32 6637368

  • 6637368 - O-RING

33 6637361

  • 6637361 - O-RING
