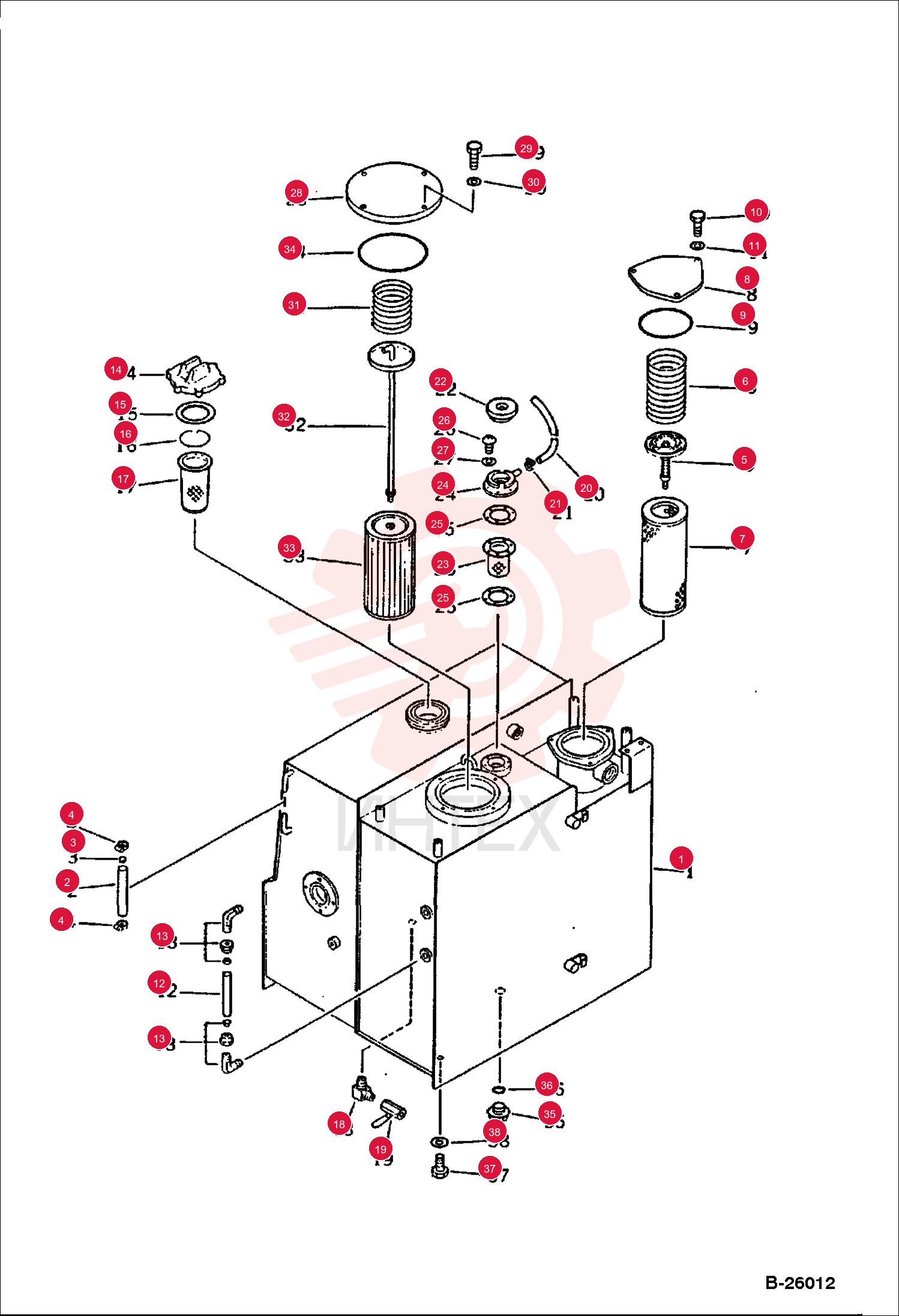

TANK ASSEMBLY 6643023 (2)

TANK ASSEMBLY 6643023 (2)

TANK ASSEMBLY 6643023 (2)

1 6643023

  • 6643023 - TANK ASSEMBLY

2 6639784

  • 6639784 - TANK
  • HYD

3 6639216

  • 6639216 - TUBE

4 6639025

  • 6639025 - FLOAT

5 6637622

  • 6637622 - CLAMP

6 6637858

  • 6637858 - ASSY
  • VALVE

7 6639787

  • 6639787 - SPRING

8 6637881

  • 6637881 - FILTER

9 6639788

  • 6639788 - COVER

10 6637352

  • 6637352 - O-RING

11 6636967

  • 6636967 - BOLT

12 6637157

  • 6637157 - WASHER

13 6639214

  • 6639214 - TUBE

14 6639213

  • 6639213 - ELBOW ASSEMBLY

15 6637469

  • 6637469 - CAP

16 6637471

  • 6637471 - GASKET

17 6637475

  • 6637475 - RING
  • SNAP

18 6637474

  • 6637474 - SCREEN

19 6637904

  • 6637904 - ELBOW

20 6637650

  • 6637650 - VALVE

21 6639210

  • 6639210 - TUBE

22 6637616

  • 6637616 - CLAMP

23 6639083

  • 6639083 - CAP

24 6639395

  • 6639395 - SCREEN

25 6639082

  • 6639082 - INLET
  • NE

26 6639394

  • 6639394 - GASKET

27 6637033

  • 6637033 - SCREW

28 6637126

  • 6637126 - WASHER

29 6639786

  • 6639786 - COVER

30 6636967

  • 6636967 - BOLT

31 6637157

  • 6637157 - WASHER

32 6637859

  • 6637859 - SPRING

33 6639785

  • 6639785 - ROD

34 6639211

  • 6639211 - STRAINER

35 6637352

  • 6637352 - O-RING

36 6637453

  • 6637453 - PLUG

37 6637411

  • 6637411 - O-RING

38 6636980

  • 6636980 - BOLT

39 6637158

  • 6637158 - WASHER
