Bobcat
/
130
/

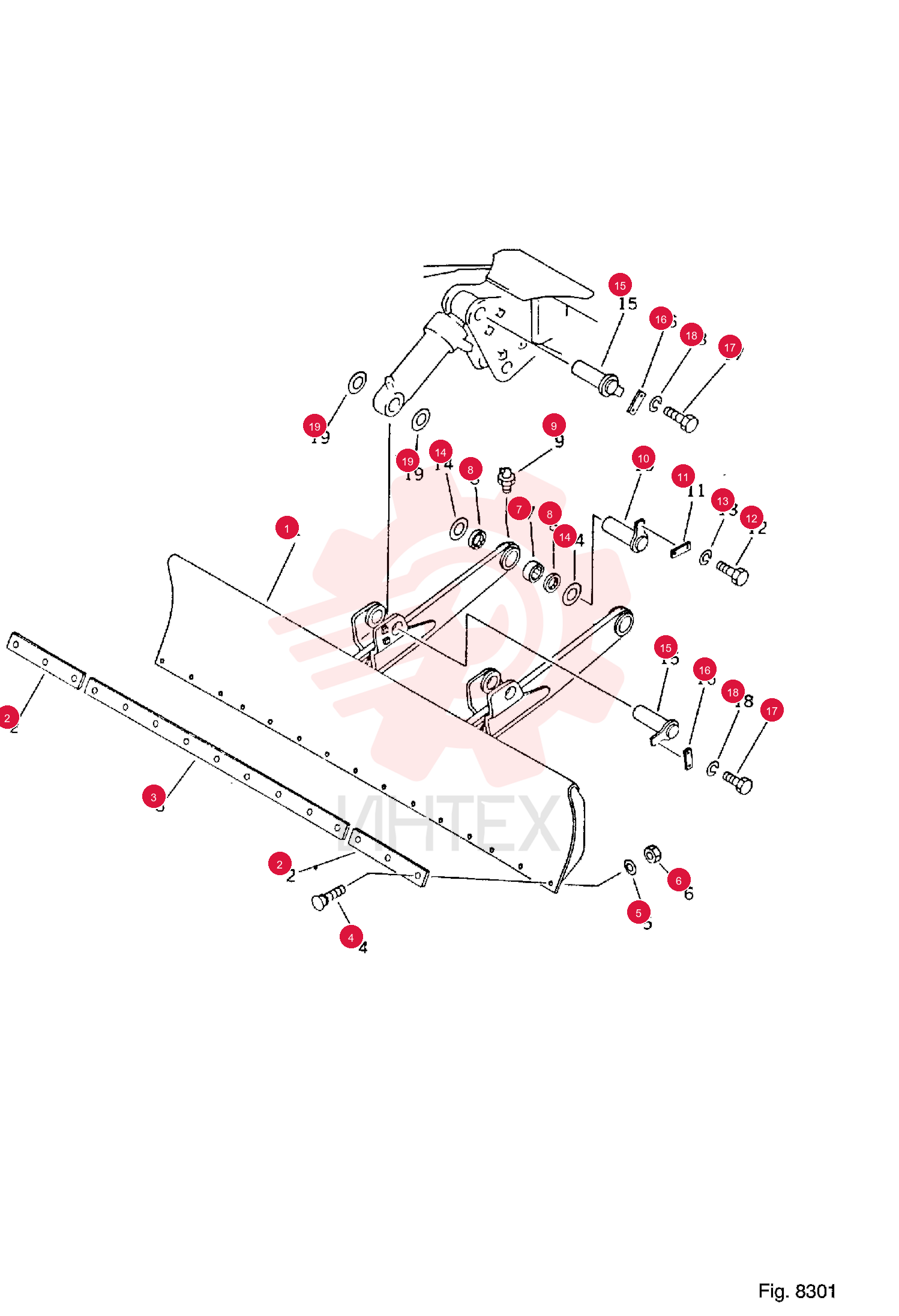

CUT EDGE 6646880

CUT EDGE 6646880

CUT EDGE 6646880

1 6646880

  • 6646880 - CUT EDGE

2 6646881

  • 6646881 - CUT EDGE

3 6642047

  • 6642047 - BOLT

4 6637159

  • 6637159 - WASHER

5 6642048

  • 6642048 - NUT

6 6637530

  • 6637530 - BUSHING

7 6637536

  • 6637536 - SEAL
  • DUST

8 6637431

  • 6637431 - FITTING

9 6646882

  • 6646882 - SHAFT

10 6639118

  • 6639118 - SHIELD

11 6636980

  • 6636980 - BOLT

12 6637136

  • 6637136 - WASHER

13 6638917

  • 6638917 - SHIM

14 6638918

  • 6638918 - SHIM

15 6646883

  • 6646883 - SHAFT

16 6639118

  • 6639118 - SHIELD

17 6636980

  • 6636980 - BOLT

18 6637136

  • 6637136 - WASHER

19 6638917

  • 6638917 - SHIM
