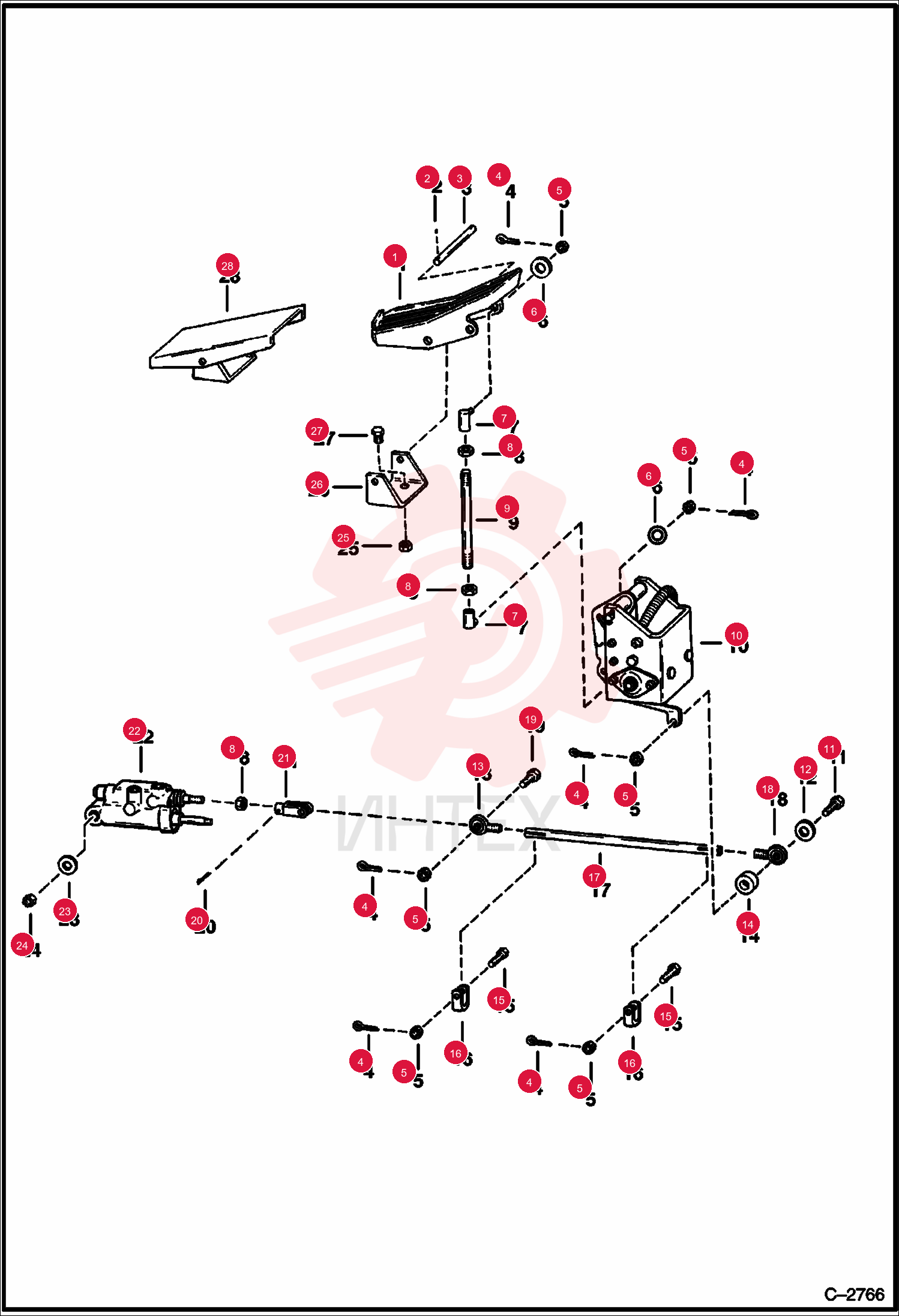

PEDAL 6584790 (1)

PEDAL 6584790 (1)

PEDAL 6584790 (1)

1 6584790

  • 6584790 - PEDAL
  • Cast

2 1F416

  • 1F416 - PIN

3 6585458

  • 6585458 - PIN
  • PIVOT
  • Was 6584792

4 1F316

  • 1F316 - PIN

5 4D6

  • 4D6 - NUT

6 25E17

  • 25E17 - WASHER FLAT PLAIN

7 6584795

  • 6584795 - JOINT
  • BALL

8 8D6

  • 8D6 - NUT HEX JAM

9 6584739

  • 6584739 - ROD

10 6584729

  • 6584729 - BOLT

11 27E6

  • 27E6 - WASHER HARDEN PLAIN

12 710852

  • 710852 - BEARING
  • R.H. thread

13 616783

  • 616783 - WASHER

14 6584744

  • 6584744 - BOLT

15 6584742

  • 6584742 - CLAMP

16 6584743

  • 6584743 - ROD

17 6599745

  • 6599745 - ROD END
  • L.H. thread

18 6584745

  • 6584745 - BOLT

19 6584741

  • 6584741 - CLEVIS

20 6584265

  • 6584265 - WASHER

21 85D10

  • 85D10 - NUT
  • 5

22 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

23 6584791

  • 6584791 - MOUNT

24 17C612

  • 17C612 - SCREW HEX CAP
