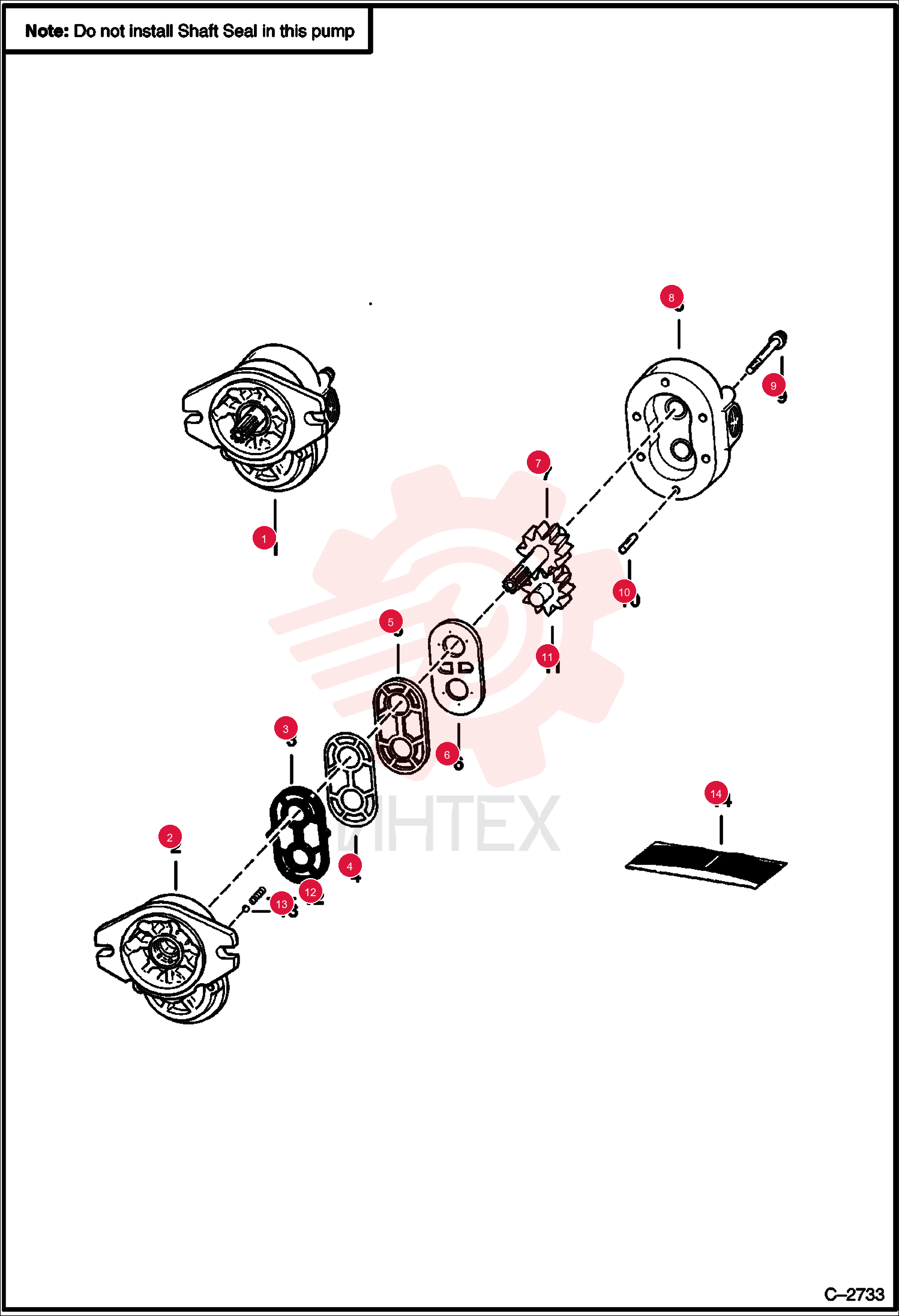

PUMP, GEAR 7003484 (1)

PUMP, GEAR 7003484 (1)

PUMP, GEAR 7003484 (1)

1 7003484

  • 7003484 - PUMP
  • GEAR
  • Also Order 7172914 bracket
  • 6515817 washer & 6660339 gasket - no seal kit available for this gear pump

2 6598933

  • 6598933 - PLATE

3 6630015

  • 6630015 - HSG ASY

4 93G536

  • 93G536 - BOLT

5 892817

  • 892817 - DOWEL

6 3490588

  • 3490588 - SPRING

7 10J7

  • 10J7 - BALL
  • Located in the pressure side of the pump

8 6516318

  • 6516318 - SEAL KIT
  • for NLA gear pump 7001434 only - Ref. 3-6
  • 12 & 13
