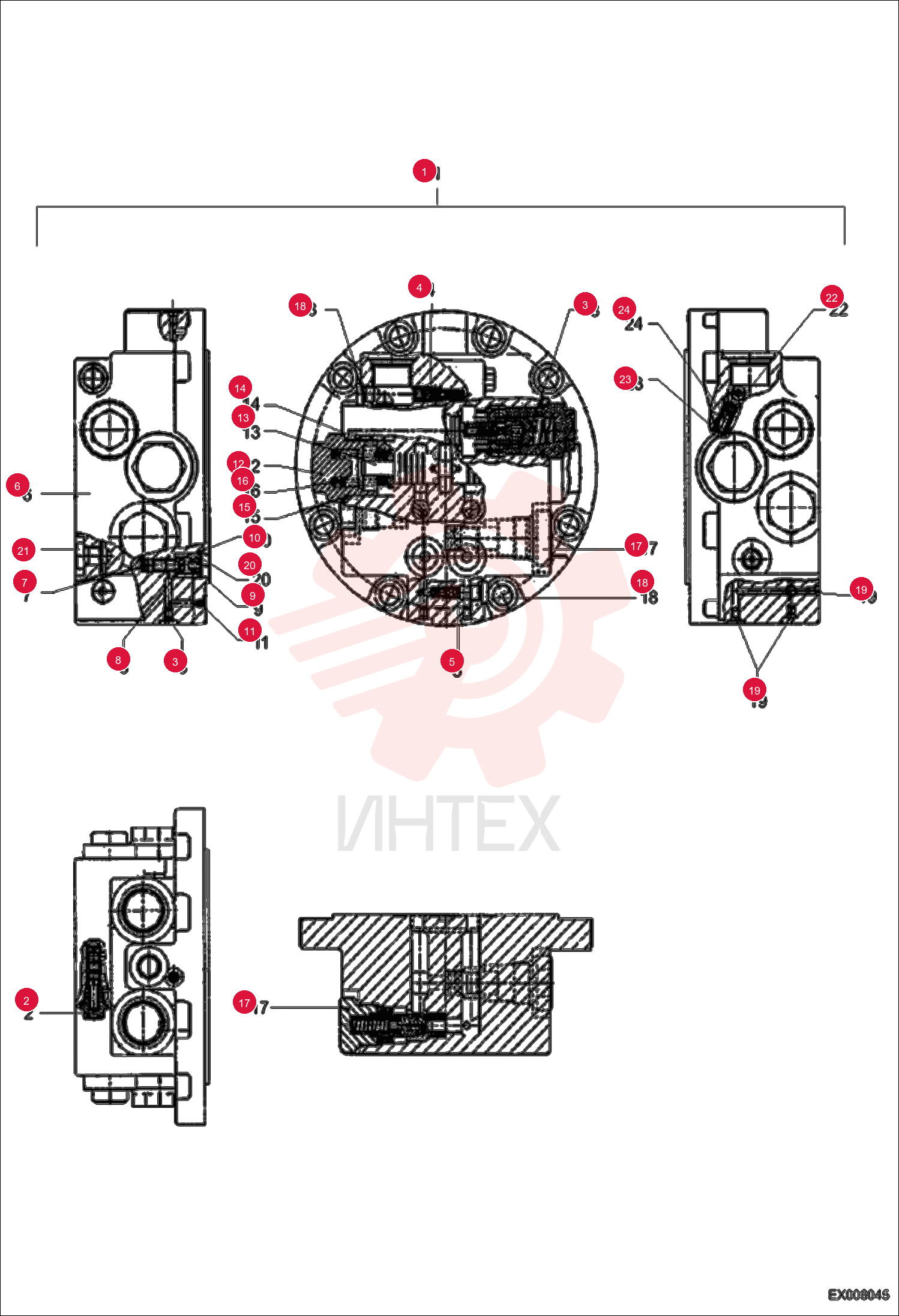

CONNECTION PLATE 5364663523 (4)

CONNECTION PLATE 5364663523 (4)

CONNECTION PLATE 5364663523 (4)

1 5364663523

  • 5364663523 - CONNECTION PLATE
  • W/Ref. 2-24

2 5364663096

  • 5364663096 - PRESS RELIEF VALVE

3 5364663388

  • 5364663388 - CHECK VALVE

4 5364663095

  • 5364663095 - COMPENSATION VALVE

5 5364663389

  • 5364663389 - SHUTTLE VALVE

6 5364663390

  • 5364663390 - CONNECTION PLATE

7 5364663391

  • 5364663391 - PISTON VALVE

8 5364663392

  • 5364663392 - SPRING PLATE

9 5364663393

  • 5364663393 - SPRING PLATE

10 5364663394

  • 5364663394 - PRESS SPRING

11 5364663395

  • 5364663395 - NOZZLE

12 5364663396

  • 5364663396 - PLUG

13 5364663397

  • 5364663397 - PISTON VALVE

14 5364663398

  • 5364663398 - SPRING PLATE

15 1971956229

  • 1971956229 - O-RING

16 5364663399

  • 5364663399 - PRESS SPRING

17 5364663524

  • 5364663524 - PRESS RELIEF VALVE

18 5364663401

  • 5364663401 - PLUG

19 5364656173

  • 5364656173 - PLUG

20 1456622716

  • 1456622716 - CIRCLIP

21 5364663402

  • 5364663402 - PLUG

22 5364655902

  • 5364655902 - BOLT

23 5364655903

  • 5364655903 - THROTTLE

24 5364663403

  • 5364663403 - THROTTLE PIN
